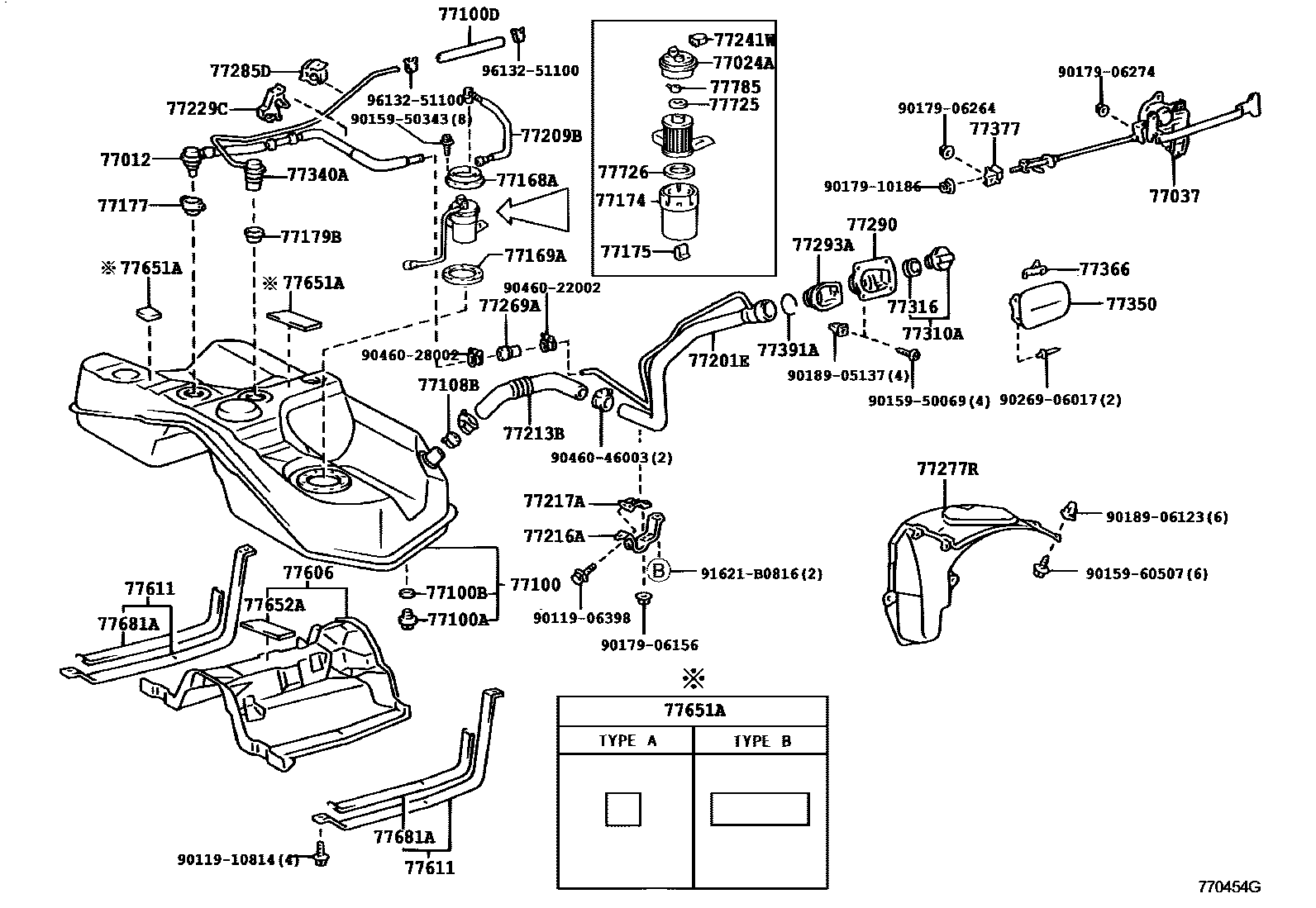

FUEL TANK & TUBE
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611BAND, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77725CUSHION, FUEL FILTER, NO.1
77726CUSHION, FUEL FILTER, NO.2
77785HARNESS, FUEL PUMP
9011906398
9011910814
9015950069
9015950343
9015960507
9017906156
9017906264
9017906274
9017910186
9018905137
9018906123
9026906017
9046022002
9046028002
9046046003
91621B0816
9613251100
58 parts on this diagram · 7 diagrams in section
