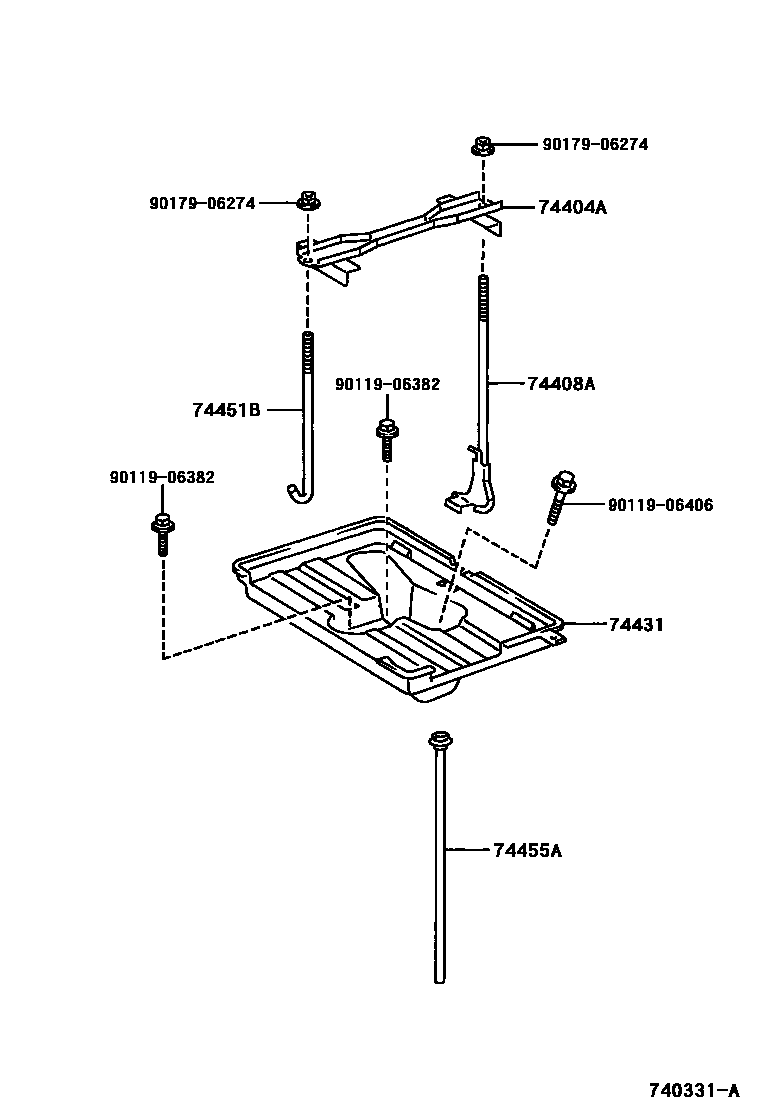

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280iJZS160,UZS161199708

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-30010iJZS160,UZS161199808

main74408-50020iJZS160199708-199808

74431TRAY, BATTERY

main74431-30140iJZS160,UZS161..RHD199708

main74431-30150iJZS160,UZS161..LHD199708

74451BBOLT, BATTERY CLAMP

main74451-30100iJZS160,UZS161199708

74455AHOSE, BATTERY DRAIN

main74455-30020iJZS160,UZS161199708

9011906382

main90119-06382

9011906406

main90119-06406

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
