ARMREST & VISOR

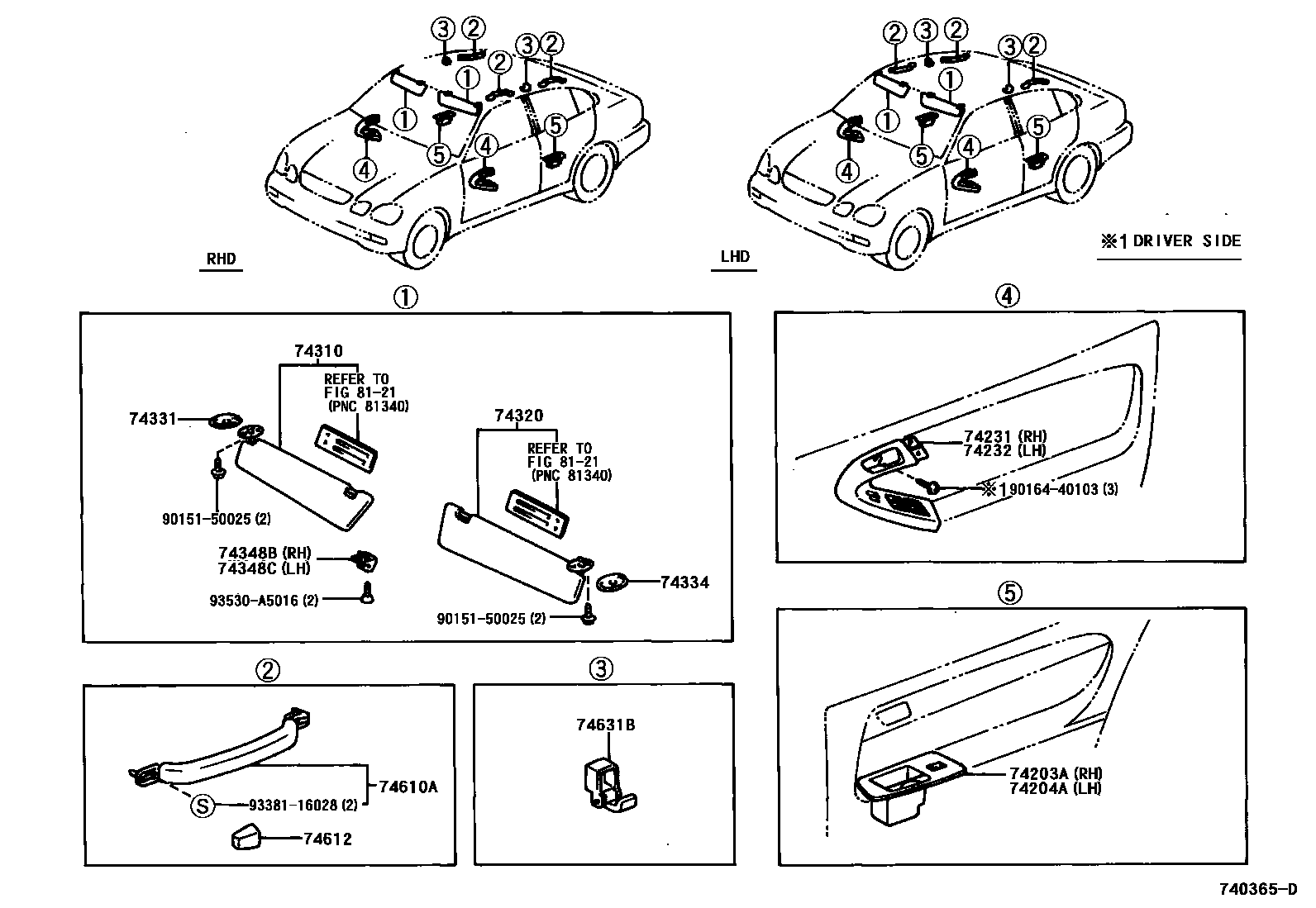

Parts diagram
74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH
main74203-30090-B0i199708-200501
DK.CHARCOAL,TRIM1#
main74203-30090-C0i199708-200501
BLACK,TRIM2#
main74203-30090-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main74203-30090-E0i199708-200501
SANDAL WOOD,TRIM0#
74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH
main74204-30090-B0i199708-200501
DK.CHARCOAL,TRIM1#
main74204-30090-C0i199708-200501
BLACK,TRIM2#
main74204-30090-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main74204-30090-E0i199708-200501
SANDAL WOOD,TRIM0#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-30290-B0i199708-200501
HONG KONG OR SINGAPORE OR THAILAND SPEC,DK.CHARCOAL,TRIM1#
main74231-30290-B0i199708-200501
DK.CHARCOAL,TRIM1#
main74231-30290-C0i200007-200501
BLACK,TRIM2#
main74231-30290-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main74231-30290-C0i199708-200501
HONG KONG OR SINGAPORE OR THAILAND SPEC,BLACK,TRIM2#
main74231-30290-E0i199708-200501
HONG KONG OR SINGAPORE OR THAILAND SPEC,SANDAL WOOD,TRIM0#
main74231-30290-E0i199708-200501
SANDAL WOOD,TRIM0#
main74231-30300-B0i199708-200501
DK.CHARCOAL,TRIM1#
main74231-30300-C0i199708-200501
BLACK,TRIM2#
main74231-30300-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main74231-30300-E0i199708-200501
SANDAL WOOD,TRIM0#
main74231-30310-B0i199708-200501
W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1#
main74231-30310-B0i200208-200501
HONG KONG OR SINGAPORE OR THAILAND SPEC;W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1#
main74231-30310-C0i199708-200501
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main74231-30310-C0i200208-200501
HONG KONG OR SINGAPORE OR THAILAND SPEC;W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main74231-30310-E0i199708-200501
W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0#
main74231-30310-E0i200208-200501
HONG KONG OR SINGAPORE OR THAILAND SPEC;W(LEATHER SEAT & MEMORY POWER SEAT),SANDALWOOD,TRIM0#
main74231-30320-B0i199708-200208
DK.CHARCOAL,TRIM1#
main74231-30320-C0i199708-200208
BLACK,TRIM2#
main74231-30320-E0i199708-200208
SANDAL WOOD,TRIM0#
main74231-30330-B0i199708-200208
W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1#
main74231-30330-C0i199708-200208
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main74231-30330-E0i199708-200208
W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-30230-B0i199708-200501
DK.CHARCOAL,TRIM1#
main74232-30230-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main74232-30230-C0i199708-200501
BLACK,TRIM2#
main74232-30230-E0i199708-200501
SANDAL WOOD,TRIM0#
main74232-30240-B0i199708-200501
W(LEATHER SEAT & MEMORY POWER SEAT),DK.CHARCOAL,TRIM1#
main74232-30240-C0i199708-200501
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main74232-30240-E0i199708-200501
W(LEATHER SEAT & MEMORY POWER SEAT),SANDAL WOOD,TRIM0#
main74232-30250-B0i199708-200501
DK.CHARCOAL,TRIM1#
main74232-30250-C0i199708-200501
BLACK,TRIM2#
main74232-30250-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main74232-30250-E0i199708-200501
SANDAL WOOD,TRIM0#
74310VISOR ASSY, RH
main74310-3A090-A0i199708-199908
IVORY,TRIM0#
sub74310-3A100
main74310-3A090-B0i199708-199908
MD.CHARCOAL,TRIM1#,2#
sub74310-3A100
main74310-3A090-B0i199708-199908
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74310-3A100
main74310-3A100-A0i199708-200007
IVORY,TRIM0#
main74310-3A100-B0i199708-200007
MD.CHARCOAL,TRIM1#,2#
main74310-3A100-B0i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
main74310-3A170-A0i199908-200007
IVORY,TRIM0#
main74310-3A170-B0i199908-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
main74310-3A180-A0i199908-200007
IVORY,TRIM0#
main74310-3A180-B0i199908-200007
MD.CHARCOAL,TRIM1#,2#
main74310-3A220-A0i200007-200501
IVORY,TRIM0#
main74310-3A220-A0i200108-200501
CHINA SPEC,IVORY,TRIM0#
main74310-3A220-B0i200108-200501
CHINA SPEC,MD.CHARCOAL,TRIM1#,2#
main74310-3A220-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
main74310-3A230-A0i200007-200501
IVORY,TRIM0#
main74310-3A230-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
main74310-3A240-A0i200007-200501
IVORY,TRIM0#
main74310-3A240-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
74320VISOR ASSY, LH
main74320-30800-A0i199708-200007
IVORY,TRIM0#
main74320-30800-B0i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
main74320-30800-B0i199708-200007
MD.CHARCOAL,TRIM1#,2#
main74320-30810-A0i199708-199908
IVORY,TRIM0#
sub74320-30800
main74320-30810-B0i199708-199908
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74320-30800
main74320-30820-A0i199708-199908
IVORY,TRIM0#
sub74320-30821
main74320-30820-B0i199708-199908
MD.CHARCOAL,TRIM1#,2#
sub74320-30821
main74320-30821-A0i199908-200007
IVORY,TRIM0#
main74320-30821-B0i199908-200007
MD.CHARCOAL,TRIM1#,2#
main74320-30880-A0i199908-200007
IVORY,TRIM0#
main74320-30880-B0i199908-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
main74320-3A040-A0i200007-200501
IVORY,TRIM0#
main74320-3A040-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
main74320-3A050-A0i200007-200501
IVORY,TRIM0#
main74320-3A050-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
main74320-3A060-A0i200007-200501
IVORY,TRIM0#
main74320-3A060-A0i200108-200501
CHINA SPEC,IVORY,TRIM0#
main74320-3A060-B0i200108-200501
CHINA SPEC,MD.CHARCOAL,TRIM1#,2#
main74320-3A060-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
main74320-3A070-A0i200011-200501
KOREA SPEC,IVORY,TRIM0#
main74320-3A070-B0i200011-200501
KOREA SPEC,MD.CHARCOAL,TRIM1#,2#
74331CASE, VISOR ARM, RH
main74317-50010-A0i200008-200501
IVORY,TRIM0#
sub74317-50010
main74317-50010-B0i200008-200501
MD.CHARCOAL,TRIM1#,2#
sub74317-50010
main74331-50030-A1i199708-200008
IVORY,TRIM0#
sub74317-50010
main74331-50030-B1i199708-200008
MD.CHARCOAL,TRIM1#,2#
sub74317-50010
main74331-50030-B1i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74317-50010
74334CASE, VISOR ARM, LH
main74317-50010-A0i200008-200501
IVORY,TRIM0#
sub74317-50010
main74317-50010-B0i200008-200501
MD.CHARCOAL,TRIM1#,2#
sub74317-50010
main74331-50030-A1i199708-200008
IVORY,TRIM0#
sub74317-50010
main74331-50030-B1i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74317-50010
main74331-50030-B1i199708-200008
MD.CHARCOAL,TRIM1#,2#
sub74317-50010
74348BHOLDER, VISOR, RH
main74348-50020-A1i199708-200501
IVORY,TRIM0#
sub74348-50020
main74348-50020-B2i199708-200501
MD.CHARCOAL,TRIM1#,2#
sub74348-50020
main74348-50020-B2i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74348-50020
74348CHOLDER, VISOR, LH
main74348-50020-A1i199708-200501
IVORY,TRIM0#
sub74348-50020
main74348-50020-B2i199708-200501
MD.CHARCOAL,TRIM1#,2#
sub74348-50020
main74348-50020-B2i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74348-50020
74610AGRIP SUB-ASSY, ASSIST
main74610-30210-A0i199708-200007
IVORY,TRIM0#
sub74610-30210
sub74610-51010
main74610-30210-B0i199708-200007
MD.CHARCOAL,TRIM1#,2#
sub74610-30210
sub74610-51010
main74610-30210-B0i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74610-30210
sub74610-51010
main74610-30230-A0i200007-200501
IVORY,TRIM0#
sub74610-30230
sub74610-51040
main74610-30230-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
sub74610-30230
sub74610-51040
74612COVER, ASSIST GRIP
main74612-30170-A0i199708-200007
IVORY,TRIM0#
sub74612-30171
main74612-30170-B0i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74612-30171
main74612-30170-B0i199708-200007
MD.CHARCOAL,TRIM1#,2#
sub74612-30171
main74612-30171-A0i200007-200501
IVORY,TRIM0#
sub74612-30171
main74612-30171-B0i200007-200501
MD.CHARCOAL,TRIM1#,2#
sub74612-30171
74631BHOOK, COAT
main74605-30010-A0i199708-200501
IVORY,TRIM0#
sub74605-30010
main74605-30010-B0i199708-200007
MD.CHARCOAL,TRIM1#,22,23,24,25,26
sub74605-30010
main74605-30010-B0i199708-200501
MD.CHARCOAL,TRIM1#,2#
sub74605-30010
8121
9015150025
main90151-50025
9016440103
main90164-40103
9338116028
main93381-16028
93530A5016
main93530-A5016

18 parts on this diagram · 2 diagrams in section
