LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30290iJZS160..ARL,GCC199708-200104

main69051-30300iJZS160..EUR199708-200007

sub69051-30301

main69051-30301iJZS160,UZS161..EUR200007-200501

main69051-30330iJZS160..ARL,GCC200104-200501

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30250iJZS160..ARL,GCC199708-200104

main69052-30260iJZS160..EUR199708-200007

sub69052-30261

main69052-30261iJZS160,UZS161..EUR200007-200501

main69052-30290iJZS160..ARL,GCC200104-200501

69054DCYLINDER & KEY SET, LUGGAGE OPENER CANCEL

main69053-50080iJZS160,UZS161199708-200501

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30350iJZS160199708-200007

sub69055-30351

main69055-30351iJZS160..ARL,GCC200007-200501

main69055-30380iJZS160,UZS161..EUR200007-200501

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50080iJZS160,UZS161199708-200501

sub69056-50140

69503AKEY, BLANK

main90999-00233iJZS160199708-200405

MASTER KEY,CARD TYPE

main90999-00234iJZS160199708-200405

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-50150iJZS160,UZS161199708-200501

MASTER KEY,W(*68)

69555COVER, KEY

main69555-50040iJZS160..LHD..EUR200001-200007

LEXUS 10TH ANNIVERSARY EDITION(EUROPE)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iJZS160,UZS161199708

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30100iJZS160,UZS161..EUR200007-200501

TYPE B:REFER TO ILLUSTRATION,NO.1

main69759-30110iJZS160,UZS161..EUR200007-200501

TYPE B:REFER TO ILLUSTRATION,NO.2

main69759-30120iJZS160,UZS161..EUR200007-200501

TYPE B:REFER TO ILLUSTRATION,NO.3

main69759-30130iJZS160,UZS161..EUR200007-200501

TYPE B:REFER TO ILLUSTRATION,NO.4

main69759-50110iJZS160..EUR199708-200007

TYPE A:REFER TO ILLUSTRATION,NO.1

main69759-50120iJZS160..EUR199708-200007

TYPE A:REFER TO ILLUSTRATION,NO.2

8420

9024908273

main90249-08273

9165140612

main91651-40612

9356855012

main93568-55012

9356855014

main93568-55014

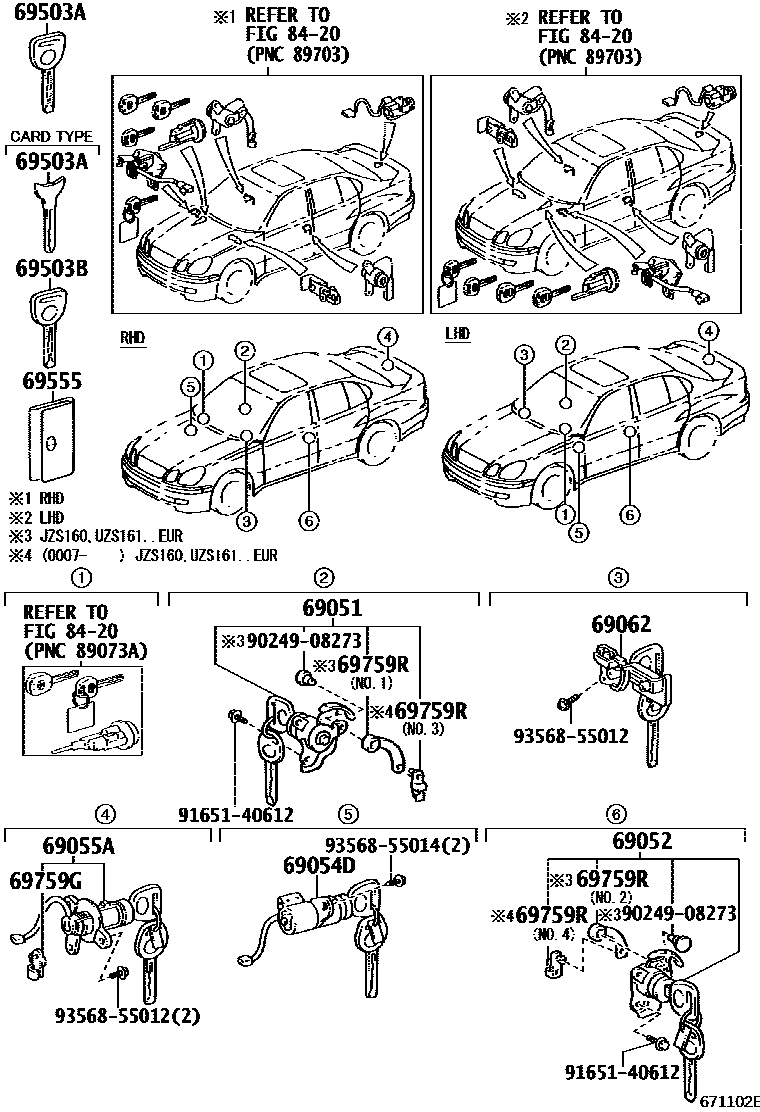

15 parts on this diagram · 1 diagram in section
