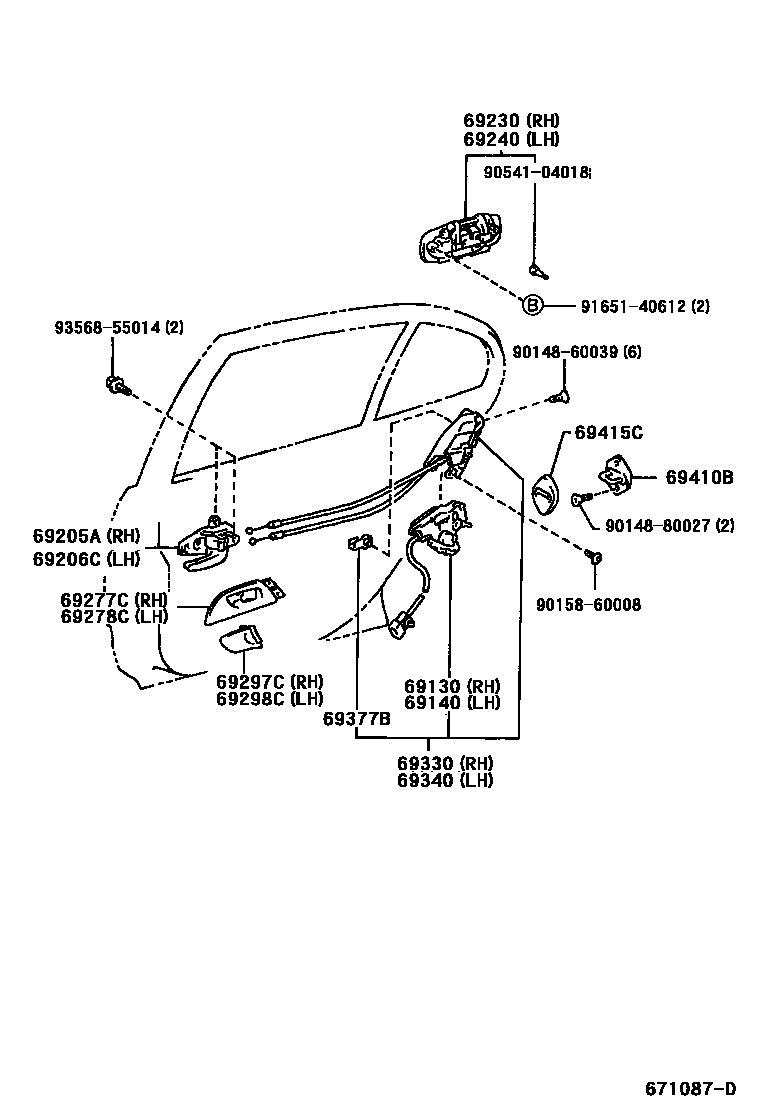

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-30110iJZS160..ARL,GCC;JZS160,UZS161..LHD..EUR199708-200501

main69130-30130iJZS160,UZS161..EUR200007-200501

W(DOUBLE-LOCK)

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-30110iJZS160..ARL,GCC;JZS160,UZS161..LHD..EUR199708-200501

main69140-30130iJZS160,UZS161..EUR200007-200501

W(DOUBLE-LOCK)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30130-B0iJZS160,UZS161200309

DK.CHARCOAL,TRIM1#

main69205-30130-C0iJZS160,UZS161200309

BLACK,TRIM2#

main69205-30130-E0iJZS160,UZS161200309

SANDAL WOOD,TRIM0#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30130-B0iJZS160,UZS161200309

DK.CHARCOAL,TRIM1#

main69206-30130-C0iJZS160..EUR200007-200309

BLACK,TRIM2#

main69206-30130-E0iJZS160,UZS161199708-200309

SANDAL WOOD,TRIM0#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-30190-A0iJZS160199708-199908

SU.WHITE PM,051

main69230-30190-A1iJZS160,UZS161199908-200501

WHITE PEARL CS.,062

main69230-30190-A2iJZS160,UZS161199708-200501

IVORY PEARL CS.,066

main69230-30190-B0iJZS160199708-199908

SILVER ME,199

main69230-30190-B1iJZS160,UZS161199908-200501

SILVER ME.,1C0

main69230-30190-C0iJZS160,UZS161199708-200501

BLACK,202

main69230-30190-D0iJZS160..EUR199708-200007

RED MC.,3N1

main69230-30190-D1iJZS160,UZS161200007-200501

BORDEAUX MC.,3P2

main69230-30190-E1iJZS160,UZS161199708-200208

BEIGE SF.,4P2

main69230-30190-E2iJZS160,UZS161200208-200501

BEIGE ME.,4P7

main69230-30190-G0iJZS160199708-200007

DK. GREEN MC.,6Q7

main69230-30190-G1iJZS160,UZS161..EUR199708-200501

GREEN M.M.,6S5

main69230-30190-G2iJZS160,UZS161199708-200501

DARK GREEN MC.,6S6

main69230-30190-J0iJZS160199708-200007

DK.BLUE MC.,8L4

main69230-30190-J1iJZS160199708-200007

BLUE MC.,8M6

main69230-30190-J2iJZS160,UZS161200007-200501

DARK BLUE MC.,8P8

main69230-30190-J3iJZS160,UZS161199708-200501

BLUE M.M.,8P9

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-30190-A0iJZS160199708-199908

SU.WHITE PM,051

main69240-30190-A1iJZS160,UZS161199908-200501

WHITE PEARL CS.,062

main69240-30190-A2iJZS160,UZS161199708-200501

IVORY PEARL CS.,066

main69240-30190-B0iJZS160199708-199908

SILVER ME,199

main69240-30190-B1iJZS160,UZS161199908-200501

SILVER ME.,1C0

main69240-30190-C0iJZS160,UZS161199708-200501

BLACK,202

main69240-30190-D0iJZS160..EUR199708-200007

RED MC.,3N1

main69240-30190-D1iJZS160,UZS161200007-200501

BORDEAUX MC.,3P2

main69240-30190-E1iJZS160,UZS161199708-200208

BEIGE SF.,4P2

main69240-30190-E2iJZS160,UZS161200208-200501

BEIGE ME.,4P7

main69240-30190-G0iJZS160199708-200007

DK. GREEN MC.,6Q7

main69240-30190-G1iJZS160,UZS161..EUR199708-200501

GREEN M.M.,6S5

main69240-30190-G2iJZS160,UZS161199708-200501

DARK GREEN MC.,6S6

main69240-30190-J0iJZS160199708-200007

DK.BLUE MC.,8L4

main69240-30190-J1iJZS160199708-200007

BLUE MC.,8M6

main69240-30190-J2iJZS160,UZS161200007-200501

DARK BLUE MC.,8P8

main69240-30190-J3iJZS160,UZS161199708-200501

BLUE M.M.,8P9

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-30140-B0iJZS160,UZS161199708-200309

DK.CHARCOAL,TRIM1#

main69277-30140-C0iJZS160..EUR199708-200007

BLACK,TRIM22,23,24,25,26

main69277-30140-E0iJZS160,UZS161199708-200309

SANDAL WOOD,TRIM0#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-30090-B0iJZS160,UZS161200309

DK.CHARCOAL,TRIM1#

main69278-30090-C0iJZS160,UZS161200309

BLACK,TRIM2#

main69278-30090-E0iJZS160,UZS161200309

SANDAL WOOD,TRIM0#

69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH

main69297-30030-B0iJZS160,UZS161199708-200501

DK.CHARCOAL,TRIM1#

main69297-30030-C0iUZS161;JZS160..ARL,GCC199708-200501

BLACK,TRIM2#

main69297-30030-E0iJZS160,UZS161199708-200501

SANDAL WOOD,TRIM0#

69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH

main69298-30030-B0iJZS160,UZS161199708-200501

DK.CHARCOAL,TRIM1#

main69298-30030-C0iJZS160..EUR200007-200501

BLACK,TRIM2#

main69298-30030-E0iJZS160,UZS161199708-200501

SANDAL WOOD,TRIM0#

69330LOCK ASSY, REAR DOOR, RH

main69050-30420iJZS160..RHD..EUR199708-200007

main69050-30470iJZS160,UZS161..EUR200007

W(DOUBLE-LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69060-30450iJZS160..RHD..EUR199708-200007

main69060-30520iJZS160,UZS161..EUR200007

W(DOUBLE-LOCK)

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-24050iJZS160,UZS161199708

LH

main69759-24060iJZS160,UZS161199708

RH

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30050×2iJZS160,UZS161199708

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30020×2iJZS160,UZS161199708

9014860039

main90148-60039

9014880027

main90148-80027

9015860008

main90158-60008

9054104018

main90541-04018

9165140612

main91651-40612

9356855014

main93568-55014

21 parts on this diagram · 1 diagram in section
