REAR DOOR PANEL & GLASS

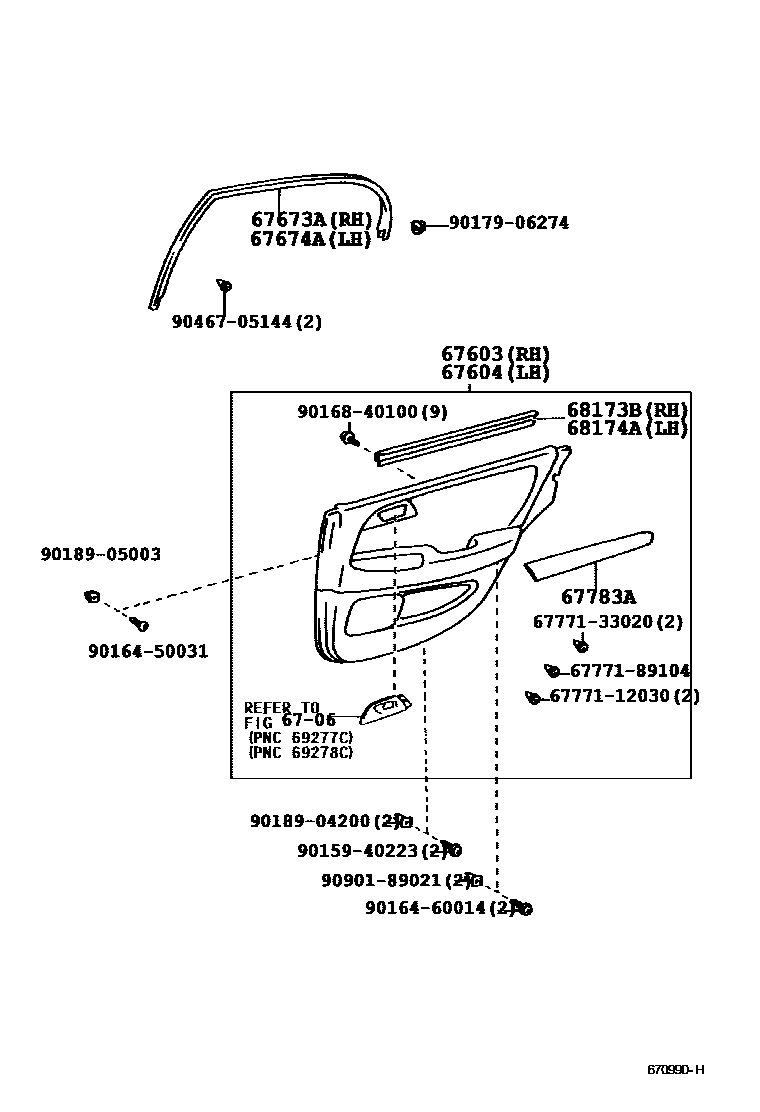

Parts diagram
6706REAR DOOR LOCK & HANDLE
→ Go to FIG 67-06
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67010-30010-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),IVORY,TRIM02
main67010-30010-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),MD.CHARCOAL,TRIM14
main67010-30010-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM22
main67010-30020-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM22
main67010-30050-A0i200007-200208
W(LEATHER SEAT),IVORY,TRIM0#
main67010-30050-B0i200007-200208
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67010-30050-C0i200007-200208
W(LEATHER SEAT),BLACK,TRIM2#
main67010-30060-B0i200007-200308
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67010-30060-C0i200007-200308
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67010-30061-B0i200308-200501
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67010-30061-C0i200308-200501
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67010-30150-A0i200208-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67010-30150-B0i200208-200308
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main67010-30150-C0i200208-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67010-30151-A0i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67010-30151-B0i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67010-30151-C0i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67630-3F250-A0i200007-200308
IVORY,TRIM0#
main67630-3F250-B0i199708-200308
MD.CHARCOAL,TRIM1#
main67630-3F250-C0i199708-199808
BLACK,TRIM2#
main67630-3F250-C0i199808-200007
BLACK,TRIM23,24,25,26
main67630-3F251-A1i200308-200501
IVORY,TRIM0#
main67630-3F251-B2i200007-200501
MD.CHARCOAL,TRIM1#
main67630-3F260-A0i199708-200007
IVORY,TRIM0#
main67630-3F260-B0i199708-200007
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67630-3F260-C0i199708-200007
BLACK,TRIM2#
main67630-3F270-A0i199708-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67630-3F270-A0i200007-200308
IVORY,TRIM0#
main67630-3F270-B0i200007-200308
MD.CHARCOAL,TRIM1#
main67630-3F270-B0i199708-200308
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67630-3F270-C0i200007-200308
BLACK,TRIM2#
main67630-3F270-C0i199708-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67630-3F271-A1i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67630-3F271-B1i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67630-3F271-C1i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67020-30010-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),IVORY,TRIM02
main67020-30010-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),MD.CHARCOAL,TRIM14
main67020-30010-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM22
main67020-30020-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM22
main67020-30050-A0i200007-200208
W(LEATHER SEAT),IVORY,TRIM0#
main67020-30050-B0i200007-200208
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67020-30050-C0i200007-200208
W(LEATHER SEAT),BLACK,TRIM2#
main67020-30060-B0i200007-200308
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67020-30060-C0i200007-200308
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67020-30061-B0i200308-200501
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67020-30061-C0i200308-200501
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67020-30150-A0i200208-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67020-30150-B0i200208-200308
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main67020-30150-C0i200208-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67020-30151-A0i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67020-30151-B0i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67020-30151-C0i200308-200501
W(LEATHER SEAT),BLAVK,TRIM2#
main67640-3F270-A0i200007-200308
IVORY,TRIM0#
main67640-3F270-B0i199708-200308
MD.CHARCOAL,TRIM1#
main67640-3F270-C0i199708-199808
BLACK,TRIM2#
main67640-3F270-C0i199808-200007
BLACK,TRIM23,24,25,26
main67640-3F271-A1i200308-200501
IVORY,TRIM0#
main67640-3F271-B2i200007-200501
MD.CHARCOAL,TRIM1#
main67640-3F280-A0i199708-200007
IVORY,TRIM0#
main67640-3F280-B0i199708-200007
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67640-3F280-C0i199708-200007
BLACK,TRIM2#
main67640-3F290-A0i199708-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67640-3F290-A0i200007-200308
IVORY,TRIM0#
main67640-3F290-B0i200007-200308
MD.CHARCOAL,TRIM1#
main67640-3F290-B0i199708-200308
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67640-3F290-C0i199708-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67640-3F290-C0i200007-200308
BLACK,TRIM2#
main67640-3F291-A1i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67640-3F291-B1i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67640-3F291-C1i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
67673AGARNISH, REAR DOOR FRAME, RH
main67673-30020i199708
67674AGARNISH, REAR DOOR FRAME, LH
main67674-30020i199708
67783AORNAMENT, REAR DOOR TRIM
main67783-30130i199708
RH
main67783-30170i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),RH
main67783-30170i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),RH
main67783-30180i200007
BLACK WOOD PACKAGE,RH
main67784-30130i199708
LH
main67784-30170i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),LH
main67784-30170i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LH
main67784-30180i200007
BLACK WOOD PACKAGE,LH
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
main68173-30130i199708-200308
main68173-30131i200308
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
main68174-30090i199708-200308
main68174-30091i200308
6777112030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12030
6777133020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33020
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
9015940223
main90159-40223
9016450031
main90164-50031
9016460014
main90164-60014
9016840100
main90168-40100
9017906274
main90179-06274
9018904200
main90189-04200
9018905003
main90189-05003
9046705144
main90467-05144
9090189021
main90901-89021

20 parts on this diagram · 4 diagrams in section
