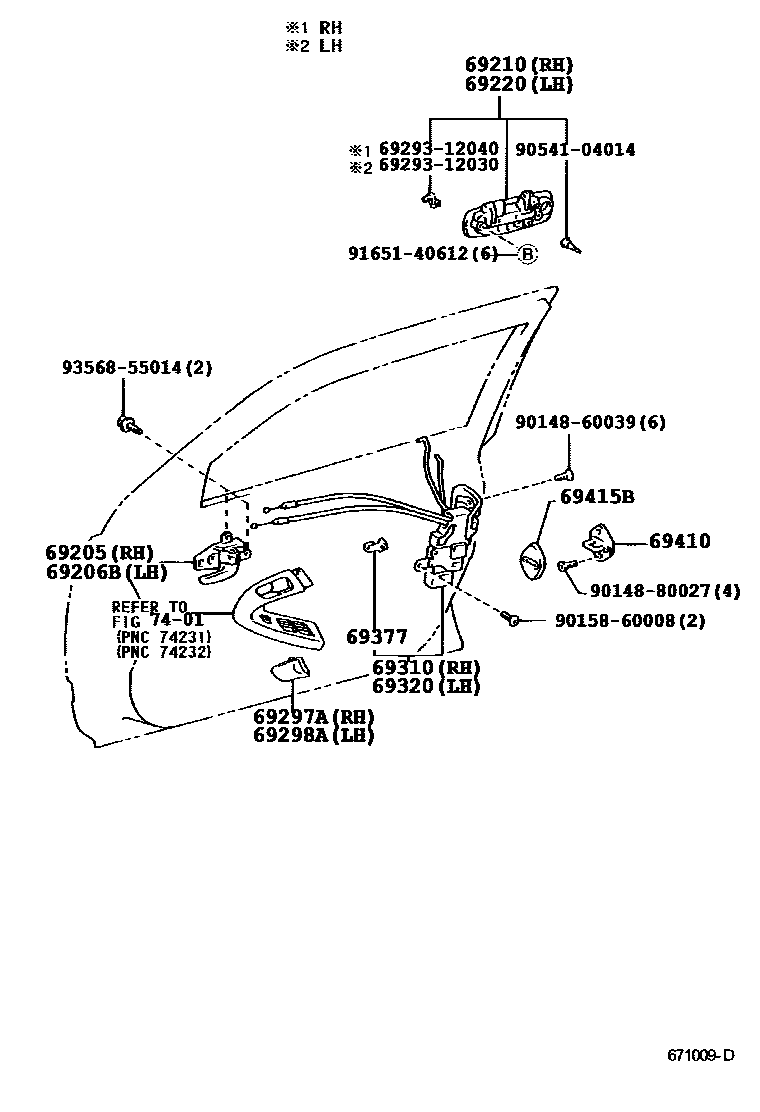

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
69310LOCK ASSY, FRONT DOOR, RH
W(DOUBLE-LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(DOUBLE-LOCK)
69377SNAP, FRONT DOOR LOCK CONTROL ROD
LH
RH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
7401
6929312030HANDLE, BACK DOOR
main69293-12030
6929312040HANDLE, BACK DOOR
main69293-12040
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9054104014
main90541-04014
9165140612
main91651-40612
9356855014
main93568-55014
20 parts on this diagram · 1 diagram in section
