EPC Data

FRONT DOOR PANEL & GLASS

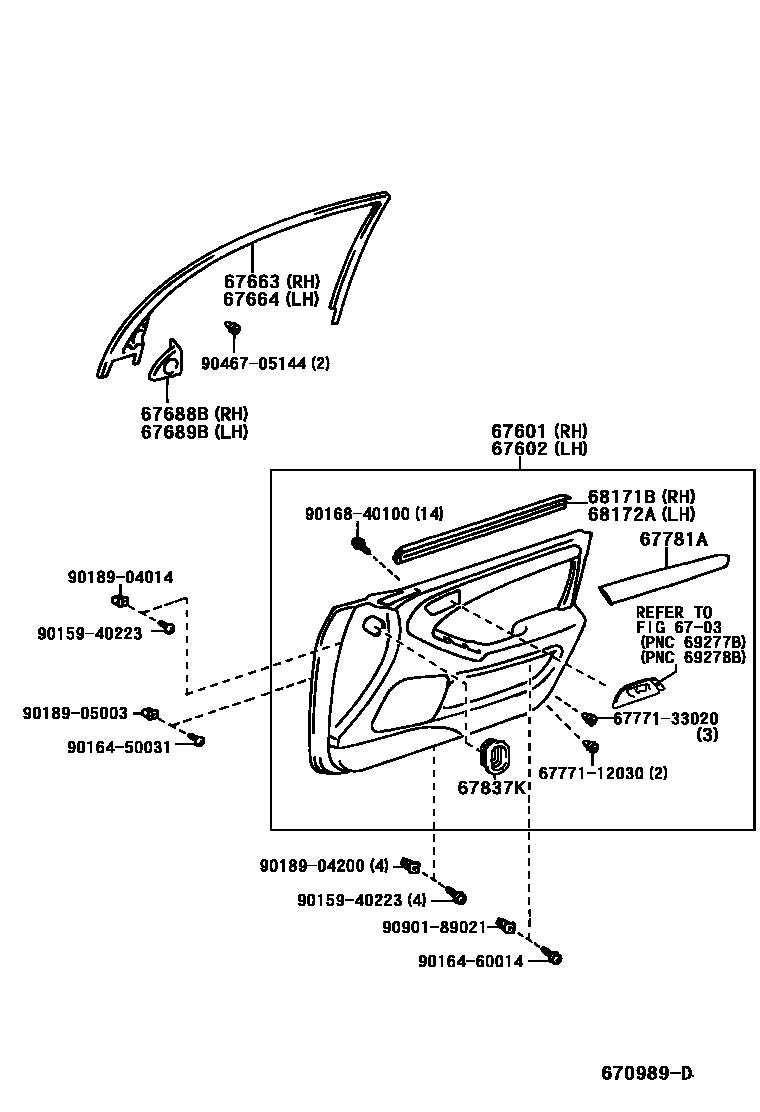

Parts diagram
6703
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-3F630-A0i199708-200007
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F630-B0i199708-200007
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F630-C0i199708-200007
W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F640-A0i199708-200007
W(POWER SEAT),IVORY,TRIM0#
main67610-3F640-B0i199708-200007
W(POWER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F640-C0i199708-200007
W(POWER SEAT),BLACK,TRIM2#
main67610-3F670-A0i200007-200308
IVORY,TRIM0#
main67610-3F670-B0i199708-200308
MD.CHARCOAL,TRIM1#
main67610-3F670-C0i199708-199808
BLACK,TRIM2#
main67610-3F671-A1i200308-200501
IVORY,TRIM0#
main67610-3F671-B2i200007-200501
MD.CHARCOAL,TRIM1#
main67610-3F680-A0i199708-200007
IVORY,TRIM0#
main67610-3F680-B0i199708-200007
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F680-C0i199708-200007
BLACK,TRIM2#
main67610-3F690-A0i199708-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F690-B0i200007-200308
MD.CHARCOAL,TRIM1#
main67610-3F690-C0i199708-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F691-A1i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F691-B1i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F691-C1i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F700-A0i199708-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F700-B0i199708-200308
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F700-C0i199708-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F701-A1i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F701-B1i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F701-C1i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F710-A0i199708-200308
W(POWER SEAT),IVORY,TRIM0#
main67610-3F710-B0i199708-200308
W(POWER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F710-C0i199708-200308
W(POWER SEAT),BLACK,TRIM2#
main67610-3F711-A1i200308-200501
W(POWER SEAT),IVORY,TRIM0#
main67610-3F711-B1i200308-200501
W(POWER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F711-C1i200308-200501
W(POWER SEAT),BLACK,TRIM2#
main67610-3F720-B0i199708-200208
MD.CHARCOAL,TRIM1#
main67610-3F750-A0i200007-200308
IVORY,TRIM0#
main67610-3F750-B0i200007-200308
MD.CHARCOAL,TRIM1#
main67610-3F750-C0i199808-200007
BLACK,TRIM23,24,25,26
main67610-3F751-A1i200308-200501
IVORY,TRIM0#
main67610-3F751-B2i200308
MD.CHARCOAL,TRIM1#
main67610-3F760-A0i199708-200007
HONG KONG OR SINGAPORE OR THAILAND SPEC;W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F760-B0i199708-200007
HONG KONG OR SINGAPORE OR THAILAND SPEC;W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F760-C0i199708-200007
HONG KONG OR SINGAPORE OR THAILAND SPEC;W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F770-A0i199708-200007
W(POWER SEAT);HONG KONG OR SINGAPORE OR THAILAND SPEC,IVORY,TRIM0#
main67610-3F770-B0i199708-200007
W(POWER SEAT);HONG KONG OR SINGAPORE OR THAILAND SPEC,MD.CHARCOAL,TRIM1#
main67610-3F770-C0i199708-200007
W(POWER SEAT);HONG KONG OR SINGAPORE OR THAILAND SPEC,BLACK,TRIM2#
main67610-3F840-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),IVORY,TRIM02
main67610-3F840-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),MD.CHARCOAL,TRIM14
main67610-3F840-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM22
main67610-3F850-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM22
main67610-3F880-A0i200007-200208
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F880-B0i200007-200208
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F880-C0i200007-200208
W(LEATHER SEAT),BLACK,TRIM2#
main67610-3F890-A0i200007-200208
W(LEATHER SEAT),IVORY,TRIM0#
main67610-3F890-B0i200007-200208
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67610-3F890-C0i200007-200208
W(LEATHER SEAT),BLACK,TRIM2#
main67650-3F010-A0i200007-200208
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
main67650-3F010-B0i200007-200208
W(LEATHER SEAT & POWER SEAT ),MD.CHARCOAL,TRIM1#
main67650-3F010-C0i200007-200208
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
main67650-3F020-A0i200007-200208
HONG KONG OR SINGAPORE OR THAILAND SPEC, W(LEATHER SEAT),IVORY,TRIM0#
main67650-3F020-B0i200007-200208
HONG KONG OR SINGAPORE OR THAILAND SPEC, W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F020-C0i200007-200208
HONG KONG OR SINGAPORE OR THAILAND SPEC, W(LEATHER SEAT),BLACK,TRIM2#
main67650-3F030-A0i200007-200208
HONG KONG OR SINGAPORE OR THAILAND SPEC, W(LEATHER SEAT & POWER SEAT),IVORY,TRIM0#
main67650-3F030-B0i200007-200208
HONG KONG OR SINGAPORE OR THAILAND SPEC, W(LEATHER SEAT & POWER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F030-C0i200007-200208
HONG KONG OR SINGAPORE OR THAILAND SPEC, W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
main67650-3F040-B0i200007-200308
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67650-3F040-C0i200007-200308
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67650-3F041-B0i200308-200501
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67650-3F041-C0i200308-200501
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67650-3F050-B0i200007-200308
W(MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F050-C0i200007-200308
W(MEMORY POWER SEAT),BLACK,TRIM2#
main67650-3F051-B0i200308-200501
W(MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F051-C0i200308-200501
W(MEMORY POWER SEAT),BLACK,TRIM2#
main67650-3F150-A0i200208-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67650-3F150-B0i200208-200308
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main67650-3F150-C0i200208-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67650-3F151-A0i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67650-3F151-B0i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F151-C0i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67650-3F160-A0i200208-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67650-3F160-B0i200208-200308
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main67650-3F160-C0i200208-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67650-3F161-A0i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67650-3F161-B0i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F161-C0i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67650-3F190-A0i200208-200308
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67650-3F190-B0i200208-200308
W(LEATHER SEAT & MEMORY POWER SEAT),MD. CHARCOAL,TRIM1#
main67650-3F190-C0i200208-200308
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67650-3F191-A0i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67650-3F191-B0i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67650-3F191-C0i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67660-30010-A0i199708-200007
IVORY,TRIM0#
main67660-30010-B0i199708-200007
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30010-C0i199708-200007
BLACK,TRIM2#
main67660-30040-A0i200007-200308
IVORY,TRIM0#
main67660-30040-B0i199708-200308
MD.CHARCOAL,TRIM1#
main67660-30040-C0i199808-200007
BLACK,TRIM23,24,25,26
main67660-30041-A1i200308-200501
IVORY,TRIM0#
main67660-30041-B2i200308-200501
MD.CHARCOAL,TRIM1#
main67660-30050-A0i199708-200007
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30050-B0i199708-200007
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30050-C0i199708-200007
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30060-A0i199708-200007
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67660-30060-B0i199708-200007
W(LEATHER SEAT & MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67660-30060-C0i199708-200007
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67660-30070-A0i199708-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30070-B0i199708-200308
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30070-C0i199708-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30071-A1i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30071-B1i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30071-C1i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30080-A0i199708-200308
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67660-30080-B0i199708-200308
W(LEATHER SEAT & MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67660-30080-C0i199708-200308
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67660-30081-A1i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67660-30081-B1i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67660-30081-C1i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67660-30090-A0i200007-200308
IVORY,TRIM0#
main67660-30090-B0i199708-200308
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30090-C0i200007-200308
BLACK,TRIM2#
main67660-30091-A1i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30091-B1i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30091-C1i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30100-A0i200007-200308
IVORY,TRIM0#
main67660-30100-B0i199708-200308
HONG KONG OR SINGAPORE OR THAILAND SPEC,MD.CHARCOAL,TRIM1#
main67660-30100-C0i199708-199808
BLACK,TRIM2#
main67660-30101-A1i200308-200501
IVORY,TRIM0#
main67660-30101-B2i200308
MD.CHARCOAL,TRIM1#
main67660-30130-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),IVORY,TRIM02
main67660-30130-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),MD.CHARCOAL,TRIM14
main67660-30130-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM22
main67660-30140-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM22
main67660-30170-A0i200007-200208
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30170-B0i200007-200208
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30170-C0i200007-200208
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30180-A0i200007-200208
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67660-30180-B0i200007-200208
W(LEATHER SEAT & MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67660-30180-C0i200007-200208
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67660-30190-A0i200007-200208
IVORY,TRIM0#
main67660-30190-B0i200007-200208
MD.CHARCOAL,TRIM1#
main67660-30190-C0i200007-200208
BLACK,TRIM2#
main67660-30210-B0i200007-200308
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67660-30210-C0i200007-200308
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67660-30211-B0i200308-200501
BLACK WOOD PACKAGE,MD.CHARCOAL,TRIM1#
main67660-30211-C0i200308-200501
BLACK WOOD PACKAGE,BLACK,TRIM2#
main67660-30320-A0i200208-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30320-B0i200208-200308
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main67660-30320-C0i200208-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30321-A0i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30321-B0i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30321-C0i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30330-A0i200208-200308
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67660-30330-B0i200208-200308
W(LEATHER SEAT & MEMORY POWER SEAT),MD. CHARCOAL,TRIM1#
main67660-30330-C0i200208-200308
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67660-30331-A0i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),IVORY,TRIM0#
main67660-30331-B0i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),MD.CHARCOAL,TRIM1#
main67660-30331-C0i200308-200501
W(LEATHER SEAT & MEMORY POWER SEAT),BLACK,TRIM2#
main67660-30340-A0i200208-200308
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30340-B0i200208-200308
W(LEATHER SEAT),MD. CHARCOAL,TRIM1#
main67660-30340-C0i200208-200308
W(LEATHER SEAT),BLACK,TRIM2#
main67660-30341-A0i200308-200501
W(LEATHER SEAT),IVORY,TRIM0#
main67660-30341-B0i200308-200501
W(LEATHER SEAT),MD.CHARCOAL,TRIM1#
main67660-30341-C0i200308-200501
W(LEATHER SEAT),BLACK,TRIM2#
67663GARNISH, DOOR FRAME, UPPER RH
main67663-30030i199708
67664GARNISH, DOOR FRAME, UPPER LH
main67664-30030i199708
67688BGRILLE, SPEAKER DOOR, NO.2 RH
main67688-30030i199708
67689BGRILLE, SPEAKER DOOR, NO.2 LH
main67689-30020i199708
67781AORNAMENT, FRONT DOOR TRIM
main67781-30230i199708
RH
main67781-30280i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),RH
main67781-30290i200007
BLACK WOOD PACKAGE,RH
main67782-30220i199708
LH
main67782-30270i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LH
main67782-30280i200007
BLACK WOOD PACKAGE,LH
67837KSEAL, FRONT DOOR VENT
main67837-50030×2i199708
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-30120i199708-200308
main68171-30121i200308
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-30090i199708-200308
main68172-30091i200308
6777112030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12030
6777133020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33020
9015940223
main90159-40223
9016450031
main90164-50031
9016460014
main90164-60014
9016840100
main90168-40100
9018904014
main90189-04014
9018904200
main90189-04200
9018905003
main90189-05003
9046705144
main90467-05144
9090189021
main90901-89021

22 parts on this diagram · 4 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
