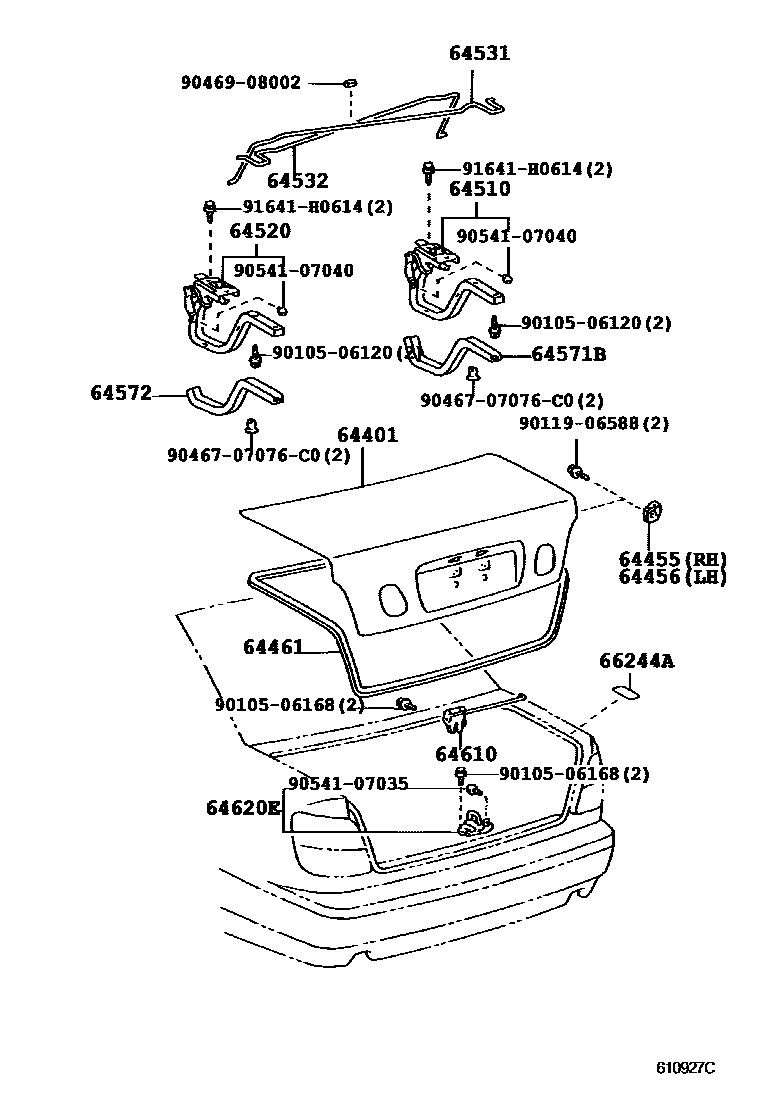

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
sub64401-3A042
sub64401-3A052
KOREA SPEC
W(REAR SPOILER)
W(REAR SPOILER)
KOREA SPEC & W(REAR SPOILER)
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W(REAR SPOILER)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W(REAR SPOILER)
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
66244APROTECTOR, REAR BODY, NO.2
9010506120
main90105-06120
9010506168
main90105-06168
9011906588
main90119-06588
9046707076C0
main90467-07076C0
9046908002
main90469-08002
9054107035
main90541-07035
9054107040
main90541-07040
91641H0614
main91641-H0614
21 parts on this diagram · 1 diagram in section
