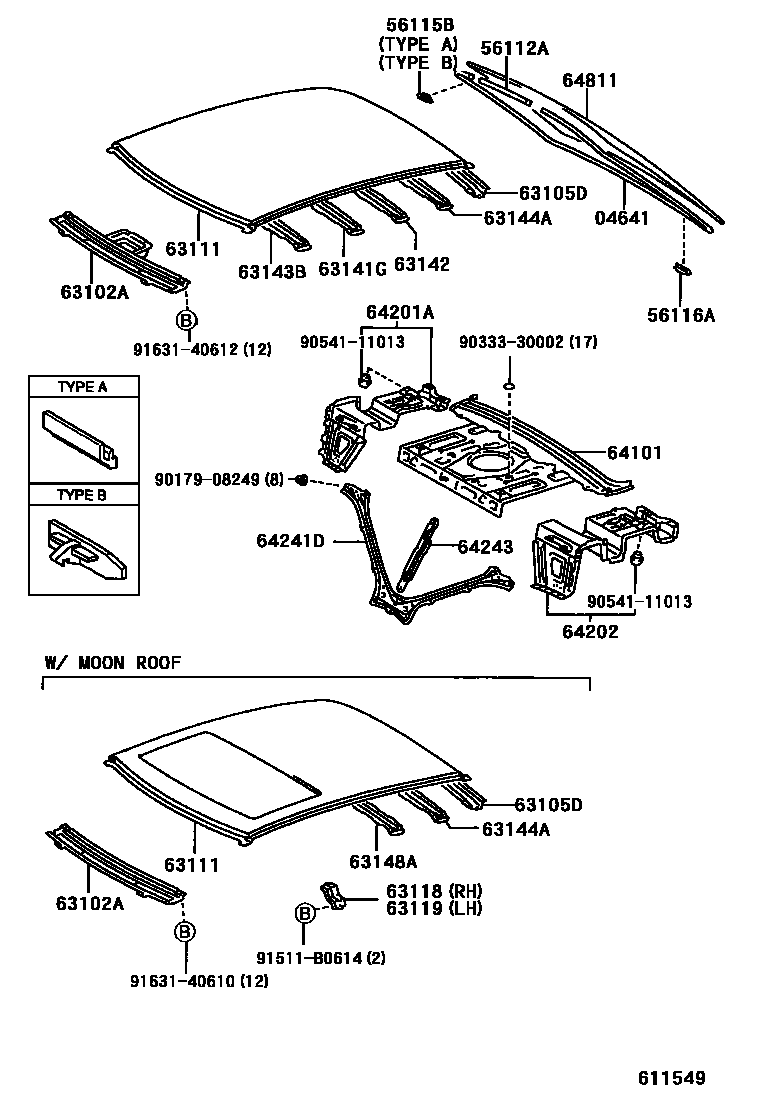

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
56112ADAM, WINDOW GLASS ADHESIVE
sub56118-50050
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116ASPACER, WINDSHIELD GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
64241DPANEL, ROOM PARTITION
64243PANEL, ROOM PARTITION, NO.2 RH
64811GLASS, BACK WINDOW
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
*UVCEHT,T=3.5,GREEN
*UVCEHT,T=3.5,GREEN
9017908249
main90179-08249
9033330002
main90333-30002
9054111013
main90541-11013
91511B0614
main91511-B0614
9163140610
main91631-40610
9163140612
main91631-40612
26 parts on this diagram · 2 diagrams in section
