COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-30140iJZS160,UZS161..LHD199708-200308

main53383-30141iJZS160,UZS161..LHD200308

main53383-30150iJZS160,UZS161..RHD199708-200308

main53383-30151iJZS160,UZS161..RHD200308

55701PANEL SUB-ASSY, COWL

main55700-3A070iJZS160..GCC199808-200501

main55700-3A080iJZS160,UZS161..RHD199708-200501

main55700-3A090iJZS160,UZS161..LHD..EUR199808

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30040iJZS160,UZS161199708

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30050iJZS160,UZS161199708

55715ABRACE, COWL TOP TO APRON, RH

main55715-30070iJZS160,UZS161..LHD199708

main55715-30080iJZS160,UZS161..RHD199708

55716ABRACE, COWL TOP TO APRON, LH

main55716-30090iJZS160,UZS161..LHD199708

main55716-30100iJZS160,UZS161..RHD199708

56111GLASS, WINDSHIELD

main56111-3A360iJZS160..LHD..EUR199808-200007

*TL,T=5.3,GREEN

main56111-3A390iJZS160..RHD199708-200007

*TL,T=5.3,GREEN

main56111-3A400iJZS160..GCC199808-200007

*TL,T=5.3,GREEN

main56111-3A490iJZS160,UZS161..LHD..EUR200007-200108

*TL,T=5.3,GREEN

main56111-3A491iJZS160,UZS161..LHD..EUR200108-200212

*TL,T=5.3,GREEN

main56111-3A492iJZS160,UZS161..LHD..EUR200212

*TL,T=5.3,GREEN

main56111-3A500iJZS160,UZS161..RHD200007-200212

*TL,T=5.3,GREEN

main56111-3A501iJZS160,UZS161..RHD200212

*TL,T=5.3,GREEN

main56111-3A510iJZS160..GCC200007-200212

*TL,T=5.3,GREEN

main56111-3A511iJZS160..GCC200212

*TL,T=5.3,GREEN

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main56112-30040iJZS160,UZS161199708-200206

main56118-44020iJZS160,UZS161200206

sub56118-50050

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iJZS160,UZS161199708

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iJZS160,UZS161199708

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iJZS160,UZS161199708

56117ADAM, WINDOW GLASS ADHESIVE

main56117-44030iJZS160,UZS161199708

*D,L=3375

56211BCUSHION, WINDSHIELD

main56211-30010iJZS160,UZS161199911

62554GPAD, PILLAR, NO.4

main62554-30010×2iJZS160,UZS161199708

9033330002

main90333-30002

9046706084

main90467-06084

9046706093

main90467-06093

9046710152

main90467-10152

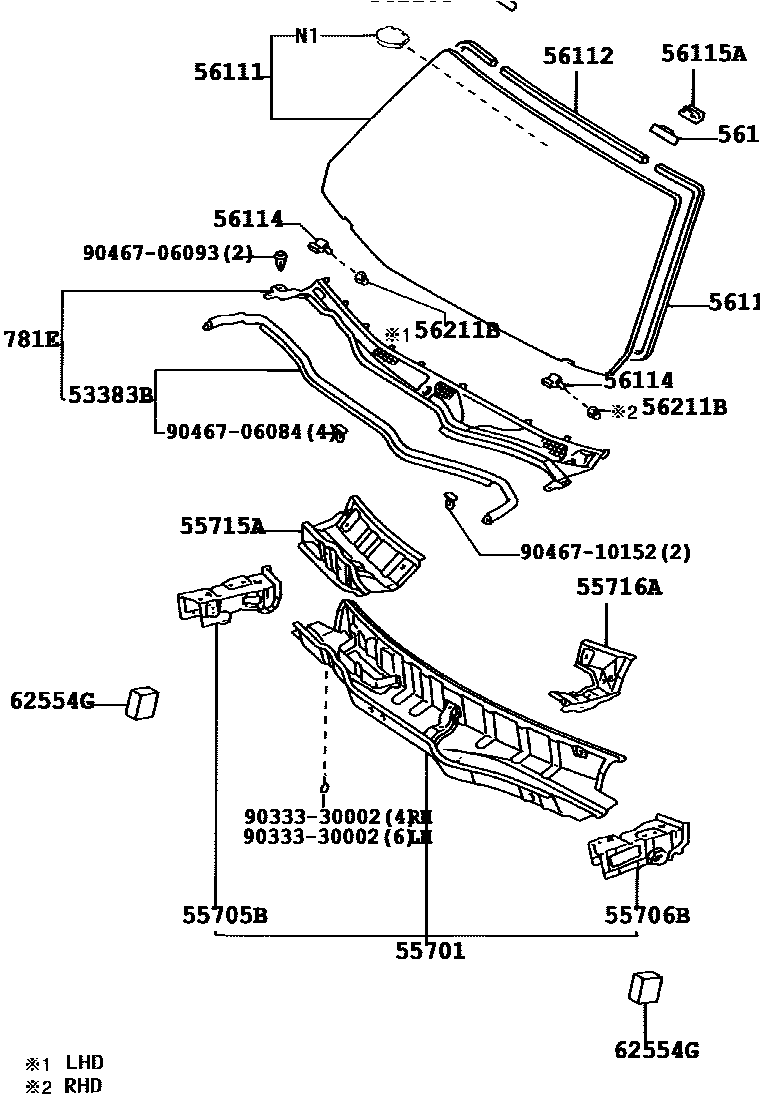

18 parts on this diagram · 1 diagram in section
