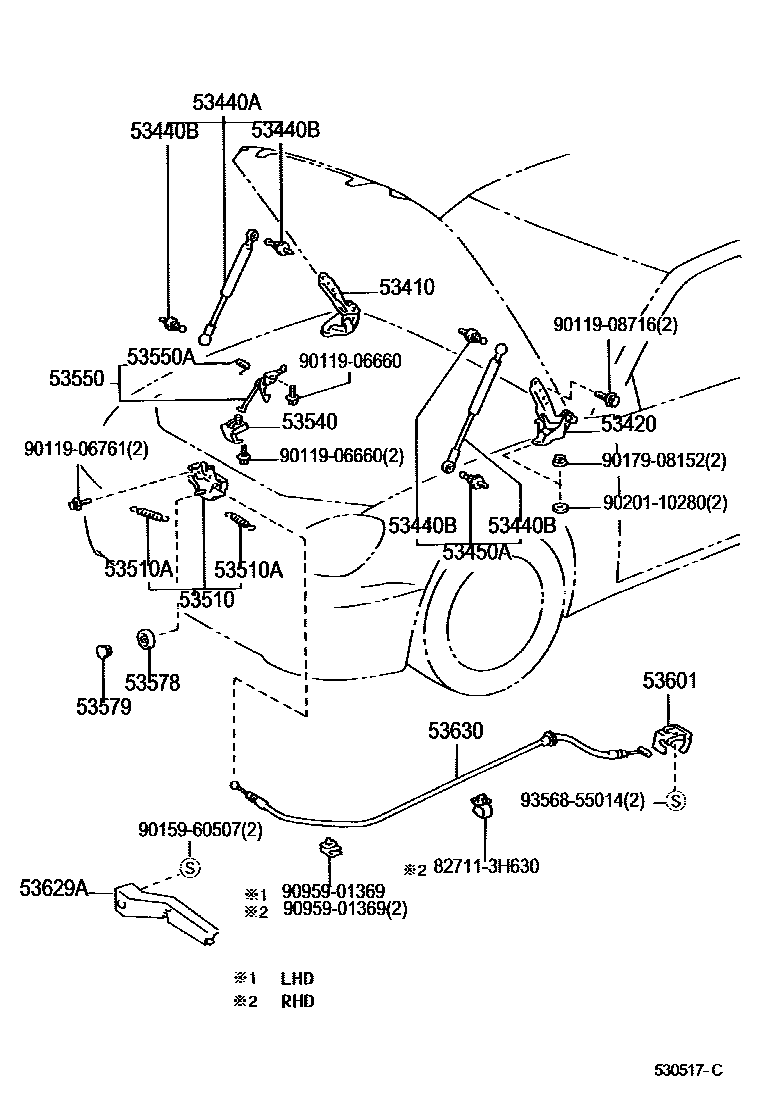

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-30130iJZS160,UZS161199708-200501

53420HINGE ASSY, HOOD, LH

main53420-30130iJZS160,UZS161199708-200501

53440ASUPPORT ASSY, HOOD, RH

main53440-39175iJZS160,UZS161199708

sub53440-39215

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×4iJZS160,UZS161199708

53450ASUPPORT ASSY, HOOD, LH

main53450-39155iJZS160,UZS161199708

sub53450-39195

53510LOCK ASSY, HOOD

main53510-33010iJZS160,UZS161..LHD199708

main53510-50060iJZS160,UZS161..RHD199708

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iJZS160,UZS161199708

WD=0.9,CW=20.5

main90506-18068iJZS160,UZS161199708

WD=1.8,CW=18

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30020iJZS160,UZS161199708

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-30080iJZS160,UZS161199708

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iJZS160,UZS161199708

53578NUT, HOOD LOCK

main53578-50010iJZS160,UZS161199708

53579CAP, HOOD LOCK NUT

main53579-50010iJZS160,UZS161199708

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-A1iJZS160,UZS161199708-200501

IVORY,TRIM0#

main53601-20060-B4iJZS160,UZS161199708-200501

MD.CHARCOAL,TRIM1#

main53601-20060-C0iUZS161;JZS160..ARL,GCC199708-200501

BLACK,TRIM2#

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-30010iJZS160,UZS161..RHD199708

main53629-30020iJZS160,UZS161..LHD199708

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30250iJZS160,UZS161199708

827113H630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H630

9011906660

main90119-06660

9011906761

main90119-06761

9011908716

main90119-08716

9015960507

main90159-60507

9017908152

main90179-08152

9020110280

main90201-10280

9095901369

main90959-01369

9356855014

main93568-55014

24 parts on this diagram · 1 diagram in section
