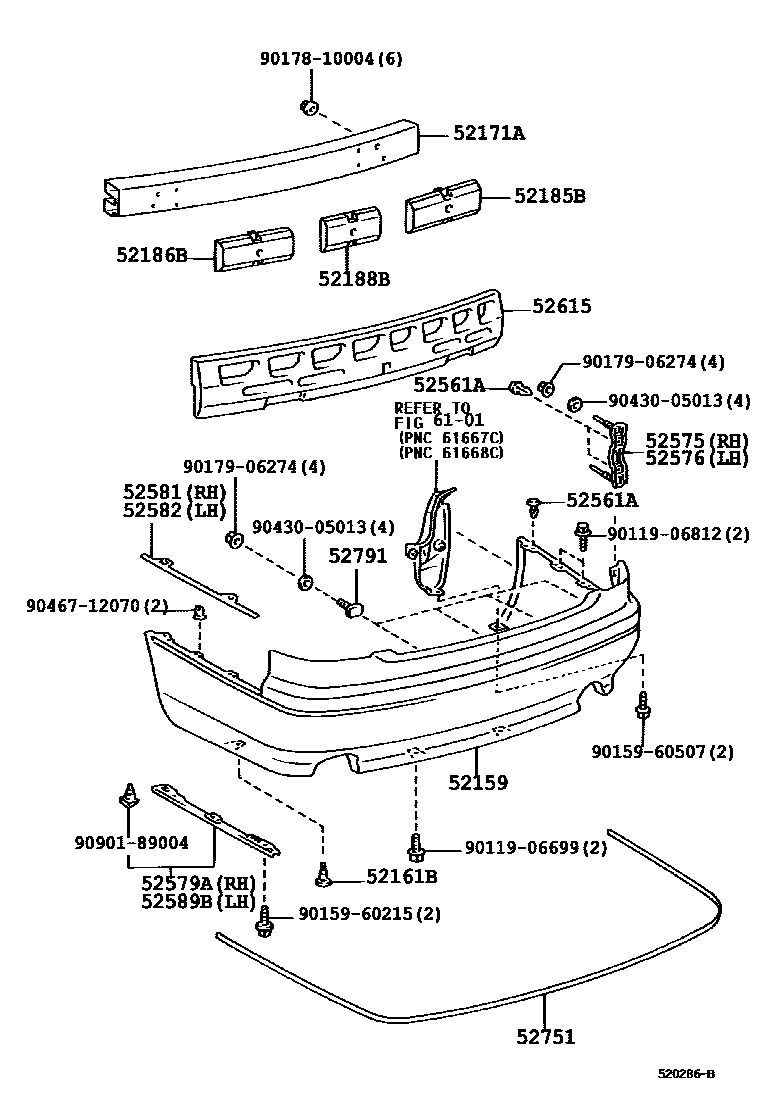

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
sub52161-0K040
52171AREINFORCEMENT, REAR BUMPER, NO.1
52188BSPACER, REAR BUMPER MOUNTING
52561ACLIP(FOR REAR BUMPER RETAINER)
BLACK,051 ,199 ,202 ,3N1 ,4P2 ,6Q7 ,8L4 ,8M6
BLACK,062 ,1C0 ,202 ,3N1 ,4P2 ,6Q7 ,8L4 ,8M6
BLACK,062 ,1C0 ,202 ,3N1 ,3P2 ,4P2 ,6S6 ,8P8
BLACK,062 ,1C0 ,202 ,3P2 ,4P2 ,6S5 ,6S6 ,8P8
BLACK,062 ,066 ,1C0 ,202 ,3P2 ,4P7 ,6S6 ,8P8 ,8P9
BLACK,062 ,066 ,1C0 ,202 ,3P2 ,4P7 ,6S5 ,6S6 ,8P8 ,8P9
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52579ARETAINER, REAR BUMPER SIDE, NO.3 RH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52589BRETAINER, REAR BUMPER SIDE, NO.3 LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
6101
9011906699
main90119-06699
9011906812
main90119-06812
9015960215
main90159-60215
9015960507
main90159-60507
9017810004
main90178-10004
9017906274
main90179-06274
9043005013
main90430-05013
9046712070
main90467-12070
9090189004
main90901-89004
26 parts on this diagram · 1 diagram in section
