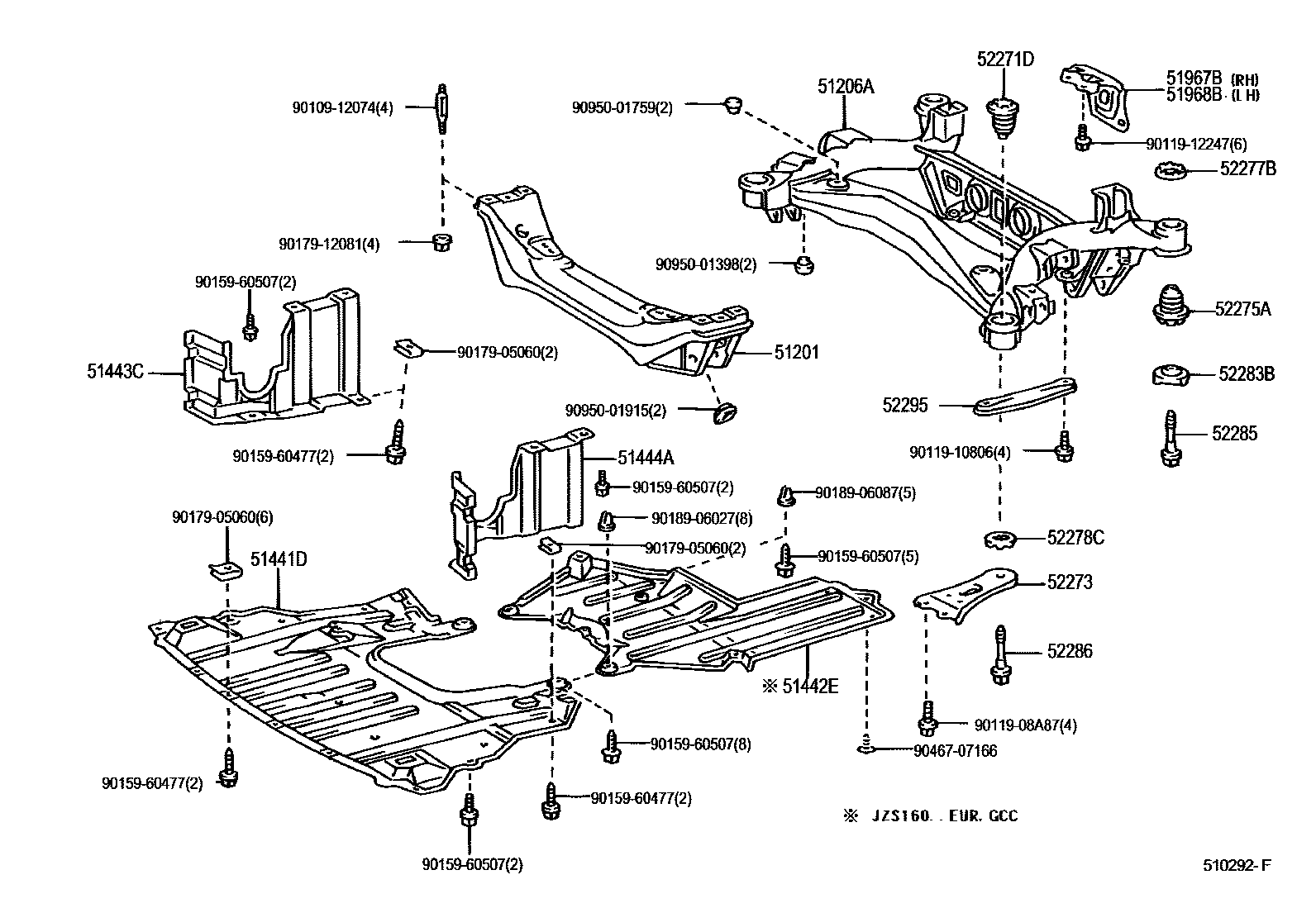

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30110iJZS160,UZS161..LHD¥38,100199708

main51201-30120iJZS160,UZS161..RHD¥38,100199708

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30060iJZS160,UZS161¥83,000199708-200009

sub51206-30061¥83,100

main51206-30061iJZS160,UZS161¥83,100200009

sub51206-30062¥83,100

51441DCOVER, ENGINE UNDER

main51441-30250iJZS160,UZS161¥13,200199708

51442ECOVER, ENGINE UNDER, NO.2

main51442-30090iJZS160..EUR,GCC¥10,000199708-199908

sub51442-30091¥10,200

main51442-30091iJZS160..EUR,GCC¥10,200199908

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30130iJZS160,UZS161¥1,700199708-200111

sub51443-30131¥1,680

main51443-30131iJZS160,UZS161¥1,680200111

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30160iJZS160,UZS161¥1,700199708-200111

sub51444-30161¥1,680

main51444-30161iJZS160,UZS161¥1,680200111

51967BHOOK, TRANSPORT, REAR RH

main51967-30030iJZS160,UZS161¥3,270199708

51968BHOOK, TRANSPORT, REAR LH

main51968-30050iJZS160,UZS161¥3,270199708

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30080iJZS160,UZS161¥4,370199708

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-30070iJZS160,UZS161¥1,300199708

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30070iJZS160,UZS161¥7,800199708

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30010iJZS160,UZS161¥780199708

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30020iJZS160,UZS161¥590199708

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050iJZS160¥1,070199708-200007

main52283-30060iJZS160,UZS161¥1,190200007

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iJZS160,UZS161¥1,360199708

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iJZS160,UZS161¥2,760199708

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30020iJZS160,UZS161¥2,070199708

9010912074

main90109-12074¥500

9011908A87

main90119-08A87¥100

9011910806

main90119-10806¥810

9011912247

main90119-12247¥260

9015960477

main90159-60477¥70

9015960507

main90159-60507¥70

9017905060

main90179-05060¥70

9017912081

main90179-12081¥160

9018906027

main90189-06027¥60

9018906087

main90189-06087¥130

9046707166

main90467-07166¥90

9095001398

main90950-01398¥100

9095001759

main90950-01759¥120

9095001915

main90950-01915¥500

31 parts on this diagram · 1 diagram in section
