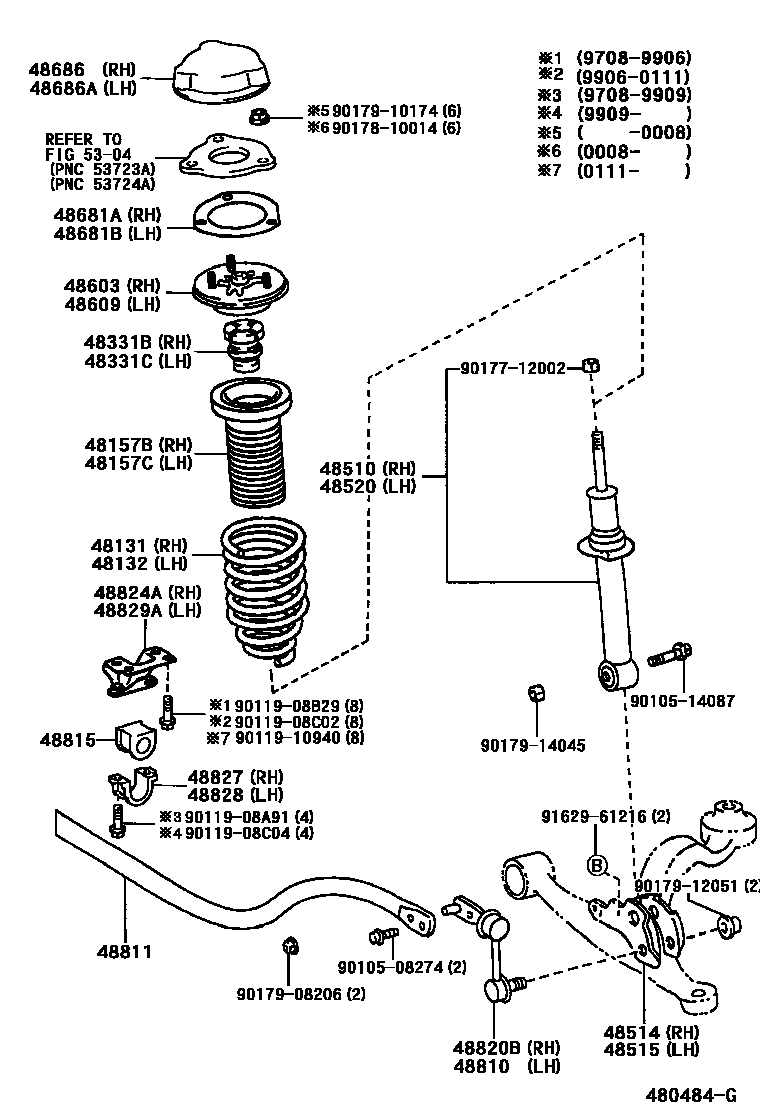

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=343.0
48132SPRING, FRONT COIL, LH
L=343.0
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-30360,HONG KONG OR SINGAPORE OR THAILAND SPEC
sub48510-80021
MARK 48510-30540
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-30360,HONG KONG OR SINGAPORE OR THAILAND SPEC
sub48510-80021
MARK 48510-30540
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48681AGASKET, FRONT SUSPENSION SUPPORT, RH
48681BGASKET, FRONT SUSPENSION SUPPORT, LH
48686COVER, FRONT SUSPENSION SUPPORT, RH
48686ACOVER, FRONT SUSPENSION SUPPORT, LH
48810LINK ASSY, FRONT STABILIZER, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
5304
9010508274
main90105-08274
9010514087
main90105-14087
9011908A91
main90119-08A91
9011908B29
main90119-08B29
9011908C02
main90119-08C02
9011908C04
main90119-08C04
9011910940
main90119-10940
9017712002
main90177-12002
9017810014
main90178-10014
9017908206
main90179-08206
9017910174
main90179-10174
9017912051
main90179-12051
9017914045
main90179-14045
9162961216
main91629-61216
39 parts on this diagram · 1 diagram in section
