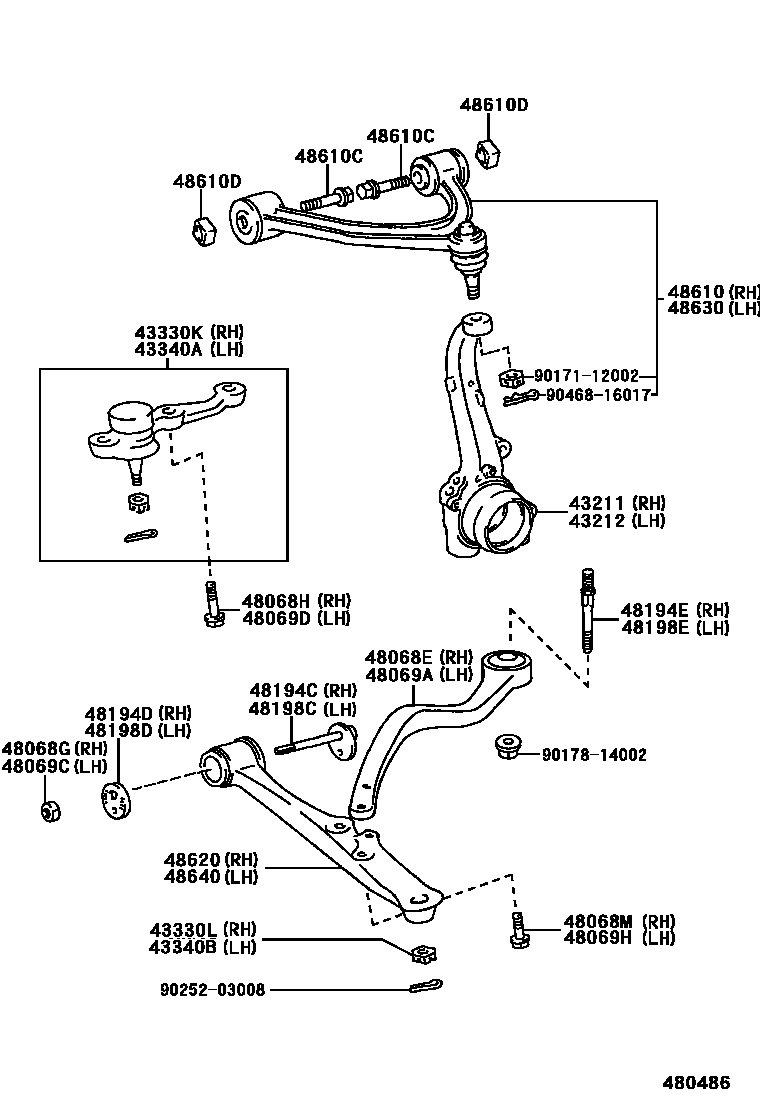

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-30210iJZS160,UZS161199708

43212KNUCKLE, STEERING, LH

main43212-30210iJZS160,UZS161199708

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39455iJZS160199708-199909

sub43330-39535

main43330-39535iJZS160,UZS161199909

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iJZS160,UZS161199708

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39345iJZS160199708-199909

sub43340-39415

main43340-39415iJZS160,UZS161199909

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iJZS160,UZS161199708

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48660-30240iJZS160199708-199908

main48660-30280iJZS160,UZS161199908-200301

sub48660-30281

main48660-30281iJZS160,UZS161200301

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14019iJZS160,UZS161199708

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-12141iJZS160,UZS161199708

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-14127iJZS160,UZS161199708

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48670-30240iJZS160199708-199908

main48670-30280iJZS160,UZS161199908-200301

sub48670-30281

main48670-30281iJZS160,UZS161200301

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14019iJZS160,UZS161199708

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-12141iJZS160,UZS161199708

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-14127iJZS160,UZS161199708

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-30040iJZS160,UZS161199708

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-30060iJZS160,UZS161199708

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main90109-14009iJZS160,UZS161199708

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-30040iJZS160,UZS161199708

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-30060iJZS160,UZS161199708

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main90109-14009iJZS160,UZS161199708

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39015iJZS160,UZS161199708-200501

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90119-10853iJZS160,UZS161199708-200312

main91672-G1070iJZS160,UZS161200401

48610DNUT(FOR SUSPENSION UPPER ARM)

main90173-10010iJZS160,UZS161199708-200107

main90173-10012iJZS160,UZS161200107

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48068-30290iJZS160199708-199802

sub48068-30300

main48068-30300iJZS160,UZS161199802

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-39015iJZS160,UZS161199708-200501

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48069-30290iJZS160199708-199802

sub48069-30300

main48069-30300iJZS160,UZS161199802

9017112002

main90171-12002

9017814002

main90178-14002

9025203008

main90252-03008

9046816017

main90468-16017

30 parts on this diagram · 1 diagram in section
