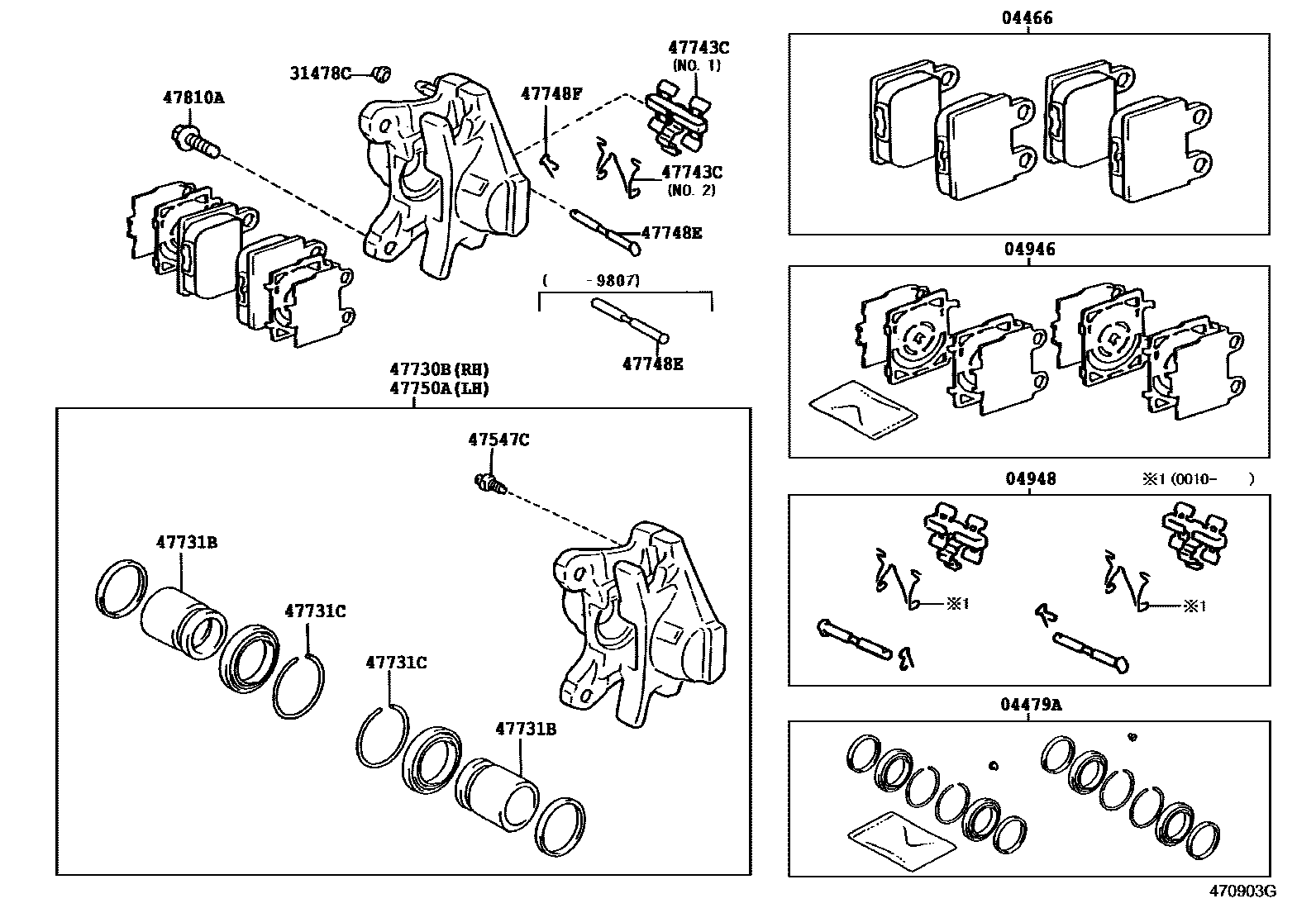

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
sub04466-30121
sub04466-30122
MARK NBK PN529,HONG KONG OR SINGAPORE OR THAILAND SPEC
MARK NBK PN529,HONG KONG OR SINGAPORE OR THAILAND SPEC
MARK SUMITOMO PS506H
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
sub04946-30071
HONG KONG OR SINGAPORE OR THAILAND SPEC
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
HONG KONG OR SINGAPORE OR THAILAND SPEC
47731BPISTON, REAR DISC BRAKE
HONG KONG OR SINGAPORE OR THAILAND SPEC
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
NO.1
NO.2
47748EPIN, W/HOLE(FOR REAR DISC BRAKE)
47748FCLIP(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
HONG KONG OR SINGAPORE OR THAILAND SPEC
47810ABOLT, HEXAGON(FOR REAR CALIPER)
14 parts on this diagram · 1 diagram in section
