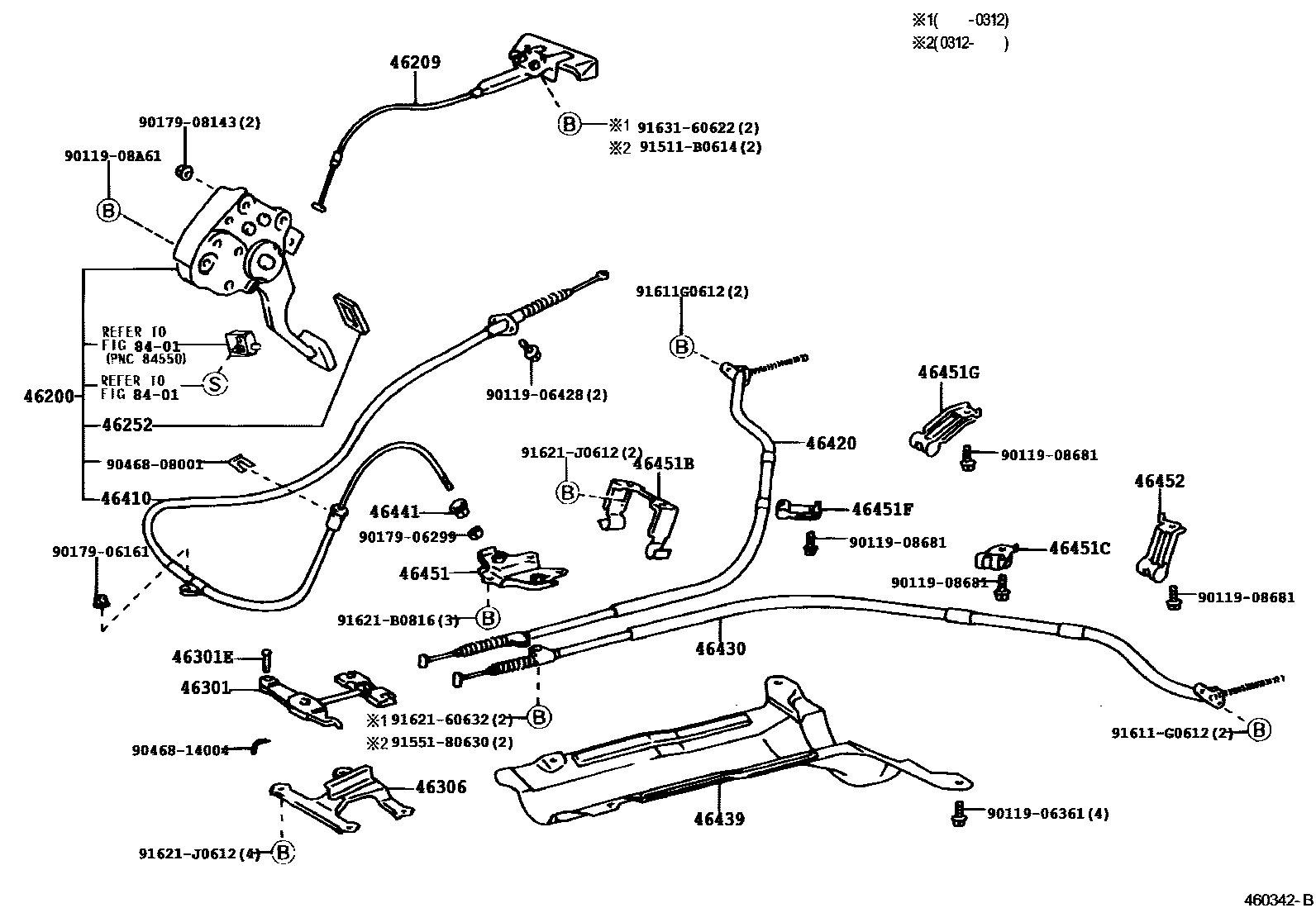

PARKING BRAKE & CABLE
46200PEDAL ASSY, PARKING BRAKE CONTROL
46209CABLE SUB-ASSY, PARKING BRAKE RELEASE
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
DK.CHARCOAL,TRIM1#
BLACK,TRIM2#
BLACK,TRIM22,23,24,25,26
SANDAL WOOD,TRIM0#
DK.CHHHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
46252PAD, PARKING PEDAL
46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)
46306BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46441NUT, WIRE ADJUSTING, NO.1
46451BRACKET, CABLE SUPPORT
46451BBRACKET, PARKING BRAKE CABLE SUPPORT
46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451FBRACKET, CABLE SUPPORT
46451GBRACKET, CABLE SUPPORT
46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
8401
9011906361
main90119-06361
9011906428
main90119-06428
9011908681
main90119-08681
9011908A61
main90119-08A61
9017906161
main90179-06161
9017906299
main90179-06299
9017908143
main90179-08143
9046808001
main90468-08001
9046814004
main90468-14004
91511B0614
main91511-B0614
9155180630
main91551-80630
91611G0612
main91611-G0612
9162160632
main91621-60632
91621B0816
main91621-B0816
91621J0612
main91621-J0612
9163160622
main91631-60622
34 parts on this diagram · 3 diagrams in section
