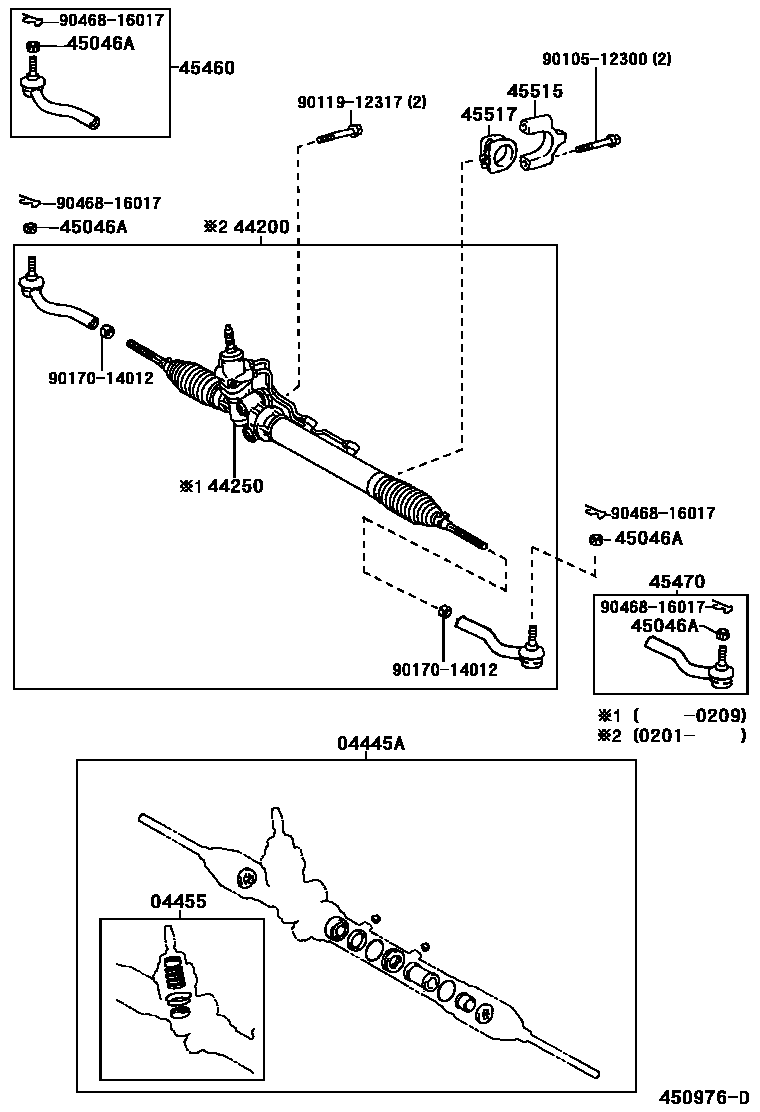

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-30250iJZS160,UZS161199708-200012

sub04445-30251

main04445-30251iJZS160,UZS161200012-200112

sub04445-30252

main04445-30252iJZS160,UZS161200112

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-30080iJZS160,UZS161199708

44200LINK ASSY, POWER STEERING

main44200-30280iJZS160,UZS161..RHD200201

main44200-30290iJZS160,UZS161..LHD200201

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30160iJZS160..RHD199708-199810

sub44250-30220

main44250-30180iJZS160..LHD199708-199810

sub44250-30230

main44250-30220iJZS160,UZS161..RHD199810-200201

main44250-30230iJZS160,UZS161..LHD199810-200201

sub44200-30290

main44250-30280iJZS160,UZS161..RHD200201-200209

sub44200-30280

main44250-30290iJZS160,UZS161..LHD200201-200209

sub44200-30290

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iJZS160,UZS161199708

45460ROD ASSY, TIE, RH

main45460-59015iJZS160,UZS161199708

45470ROD ASSY, TIE, LH

main45470-59015iJZS160,UZS161199708

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-30080iJZS160,UZS161199708

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-30050iJZS160,UZS161199708

9010512300

main90105-12300

9011912317

main90119-12317

9017014012

main90170-14012

9046816017

main90468-16017

13 parts on this diagram · 4 diagrams in section
