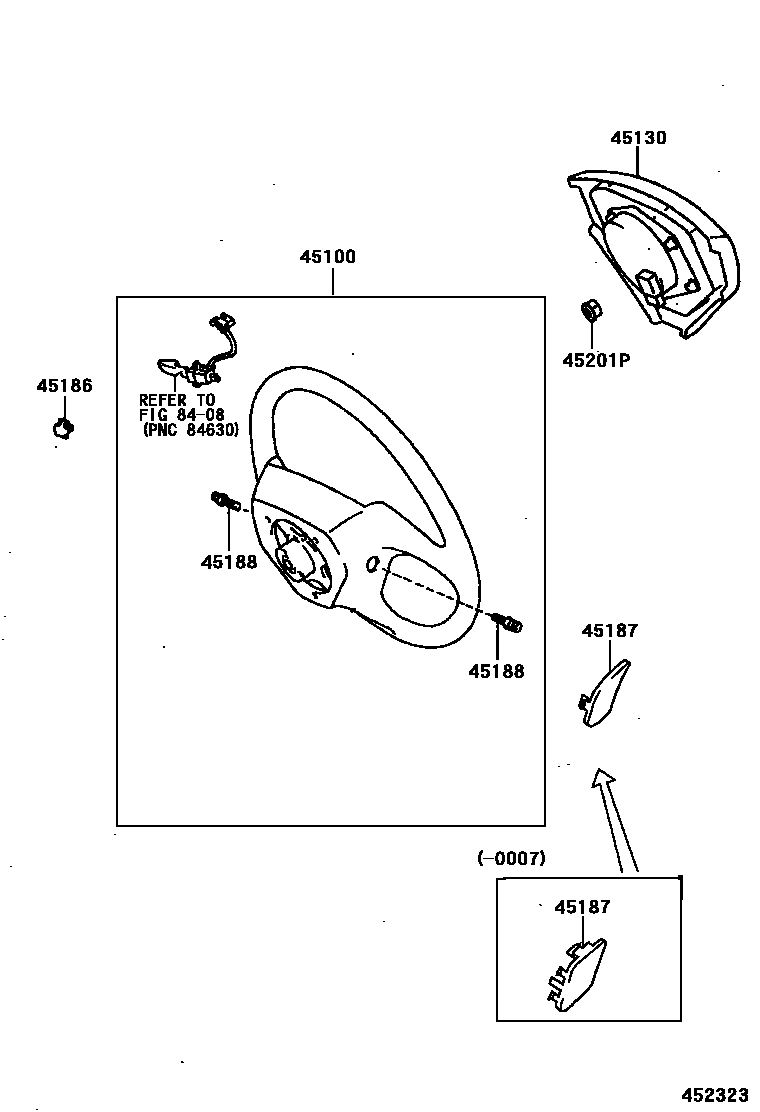

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-3A060-B0iJZS160..ARL,EUR199708-199908

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A060

main45100-3A060-C0iJZS160..GCC199708-199908

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-3A060

main45100-3A060-C0iJZS160..ARL199708-199908

3-SPOKE,LEATHER,BLACK,TRIM22,23,24,25,26

sub45100-3A060

main45100-3A060-E0iJZS160..ARL,EUR199708-199908

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A060

main45100-3A120-B0iJZS160..ARL,EUR199811-200007

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A120

main45100-3A120-C0iJZS160..ARL199908-200007

3-SPOKE,LEATHER,BLACK,TRIM22,23,24,25,26

sub45100-3A120

main45100-3A120-C0iJZS160..EUR199811-200007

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-3A120

main45100-3A120-E0iJZS160..ARL,EUR199811-200007

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A120

main45100-3A220-B0iUZS161..RHD200007-200407

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A221

main45100-3A220-C0iUZS161..RHD200007-200407

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-3A221

main45100-3A221-B0iUZS161..RHD200408-200501

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A221

main45100-3A221-C0iUZS161..RHD200408-200501

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-3A221

main45100-3A240-B0iJZS160200007-200407

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A241

main45100-3A240-C0iJZS160200007-200407

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-3A241

main45100-3A240-E0iJZS160200007-200407

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A241

main45100-3A241-B0iJZS160200408-200501

3-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A241

main45100-3A241-C0iJZS160200408-200501

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-3A241

main45100-3A241-E0iJZS160200408-200501

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A241

main45100-3A260-B0iJZS160..LHD..EUR200007-200012

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A261

main45100-3A260-C0iJZS160..RHD;JZS160..GCC200007-200012

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A261

main45100-3A260-E0iJZS160..LHD..EUR200007-200012

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A261

main45100-3A261-B0iJZS160200012-200210

3-SPOKE,WOOD&LEATHER,DK.CHACOAL,TRIM1#

sub45100-3A262

main45100-3A261-C0iJZS160200012-200210

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A262

main45100-3A261-E0iJZS160200012-200210

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A262

main45100-3A262-B0iJZS160200210-200305

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A263

main45100-3A262-C0iJZS160200210-200305

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A263

main45100-3A262-E0iJZS160200210-200305

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A263

main45100-3A263-B0iJZS160200305-200407

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A264

main45100-3A263-C0iJZS160200305-200407

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A264

main45100-3A263-E0iJZS160200305-200407

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A264

main45100-3A264-B0iJZS160200408-200501

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A264

main45100-3A264-C0iJZS160200408-200501

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A264

main45100-3A264-E0iJZS160200408-200501

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A264

main45100-3A280-B0iUZS161200007-200012

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A281

main45100-3A280-C0iUZS161200007-200012

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A281

main45100-3A280-E0iUZS161200007-200012

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A281

main45100-3A281-B0iUZS161200012-200210

3-SPOKE,WOOD&LEATHER,DK.CHACOAL,TRIM1#

sub45100-3A282

main45100-3A281-C0iUZS161200012-200210

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A282

main45100-3A281-E0iUZS161200012-200210

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A282

main45100-3A282-B0iUZS161200210-200305

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A283

main45100-3A282-C0iUZS161200210-200305

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A283

main45100-3A282-E0iUZS161200210-200305

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A283

main45100-3A283-B0iUZS161200305-200407

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A284

main45100-3A283-C0iUZS161200305-200407

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A284

main45100-3A283-E0iUZS161200305-200407

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A284

main45100-3A284-B0iUZS161200408-200501

3-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM1#

sub45100-3A284

main45100-3A284-C0iUZS161200408-200501

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

sub45100-3A284

main45100-3A284-E0iUZS161200408-200501

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

sub45100-3A284

45130BUTTON ASSY, HORN

main45130-30540-B0iJZS160..ARL,EUR199708-199908

DK.CHARCOAL,TRIM1#

sub45130-30541

main45130-30540-C0iJZS160..EUR199708-199908

BLACK,TRIM22,23,24,25,26

sub45130-30541

main45130-30540-C0iJZS160..ARL,GCC199708-199908

BLACK,TRIM2#

sub45130-30541

main45130-30540-E0iJZS160199708-199908

SANDAL WOOD,TRIM0#

sub45130-30541

main45130-30541-B0iJZS160199908-200007

DK.CHARCOAL,TRIM1#

sub45130-30630

main45130-30541-C0iJZS160..ARL,GCC199908-200007

BLACK,TRIM2#

sub45130-30630

main45130-30541-C0iJZS160..EUR199908-200007

BLACK,TRIM22,23,24,25,26

sub45130-30630

main45130-30541-E0iJZS160199908-200007

SANDAL WOOD,TRIM0#

sub45130-30630

main45130-30570-B0iJZS160..GCC199811-199908

DK.CHARCOAL,TRIM1#

sub45130-30541

main45130-30570-C0iJZS160..GCC199811-199908

BLACK,TRIM2#

sub45130-30541

main45130-30570-E0iJZS160..GCC199811-199908

SANDAL WOOD,TRIM0#

sub45130-30541

main45130-30590-B0iJZS160,UZS161200007-200501

DK.CHARCOAL,TRIM1#

sub45130-30591

main45130-30590-C0iJZS160,UZS161200007-200501

BLACK,TRIM2#

sub45130-30591

main45130-30590-E0iJZS160,UZS161200007-200501

SANDAL WOOD,TRIM0#

sub45130-30591

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B5iJZS160,UZS161199708-200501

DK.CHARCOAL,TRIM1#

sub45186-44010

main45186-44010-C0iUZS161;JZS160..ARL,GCC199708-200501

BLACK,TRIM2#

sub45186-44010

main45186-44010-C0iJZS160..EUR199708-200007

BLACK,TRIM22,23,24,25,26

sub45186-44010

main45186-44010-E4iJZS160,UZS161199708-200501

SANDAL WOOD,TRIM0#

sub45186-44010

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30060-B1iJZS160199708-200007

DK.CHARCOAL,TRIM1#

sub45187-30060

main45187-30060-C0iJZS160..EUR199708-200007

BLACK,TRIM22,23,24,25,26

sub45187-30060

main45187-30060-C0iJZS160..ARL,GCC199708-200007

BLACK,TRIM2#

sub45187-30060

main45187-30060-E1iJZS160199708-200007

SANDAL WOOD,TRIM0#

sub45187-30060

main45187-48010-B0iJZS160200007-200501

DK.CHARCOAL,TRIM1#

sub45187-48010

main45187-48010-C0iJZS160200007-200501

BLACK,TRIM2#

sub45187-48010

main45187-48010-E0iJZS160200007-200501

SANDAL WOOD,TRIM0#

sub45187-48010

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007iJZS160;UZS161..RHD199708-200501

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iJZS160,UZS161199708

8408

7 parts on this diagram · 2 diagrams in section
