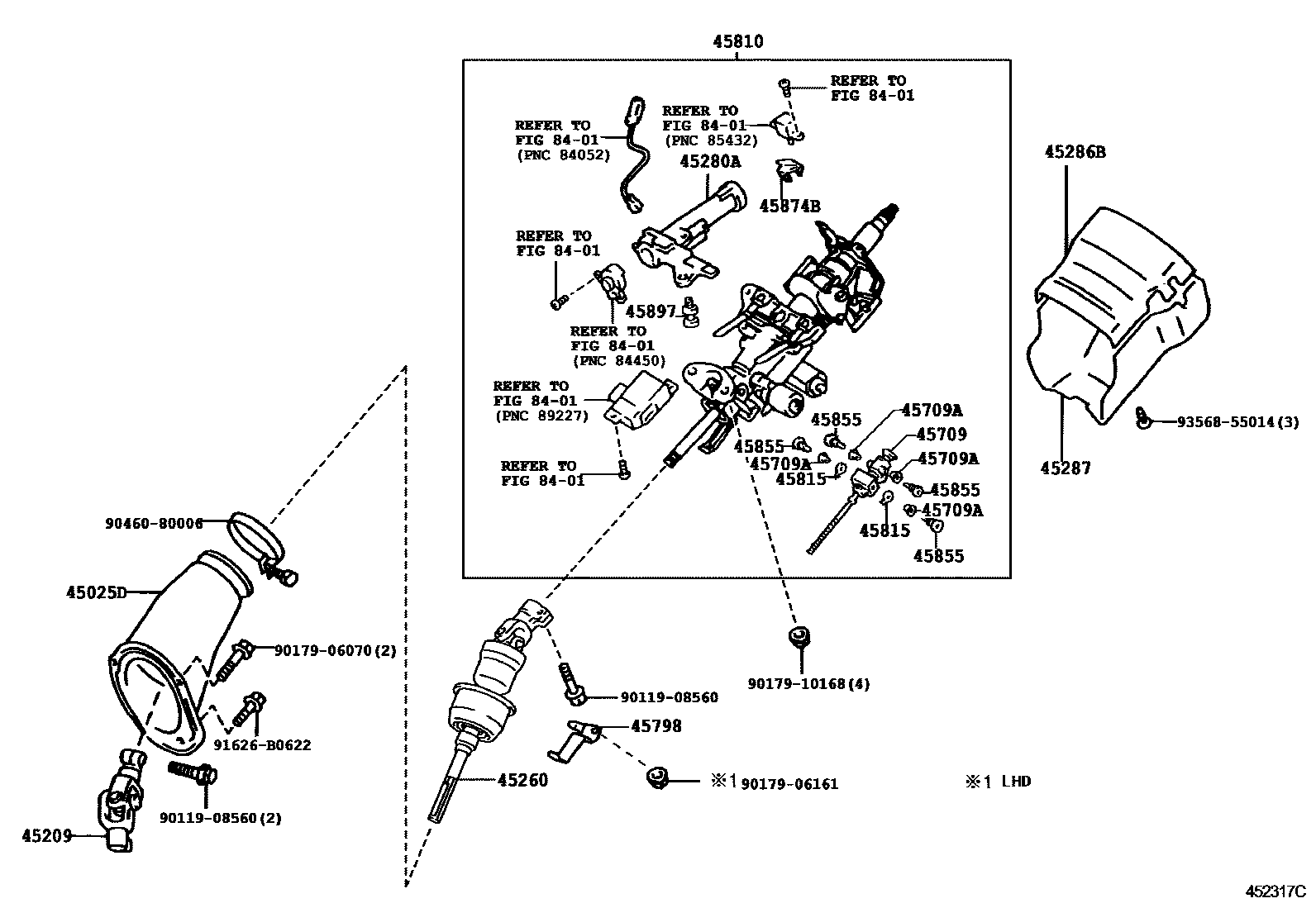

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45709SLIDER SUB-ASSY, TILT STEERING
45709ABUSH(FOR TILT STEERING SLIDER)
45798CLAMP, STEERING INTERMEDIATE SHAFT, RH
45810GEAR ASSY, TILT STEERING, W/MOTOR
45815SHIM, TILT STEERING SUPPORT
T=0.7
45855BOLT, TILT STEERING, NO.1
OD=8
45874BPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9017906070
main90179-06070
9017906161
main90179-06161
9017910168
main90179-10168
9046080006
main90460-80006
91626B0622
main91626-B0622
9356855014
main93568-55014
22 parts on this diagram · 1 diagram in section
