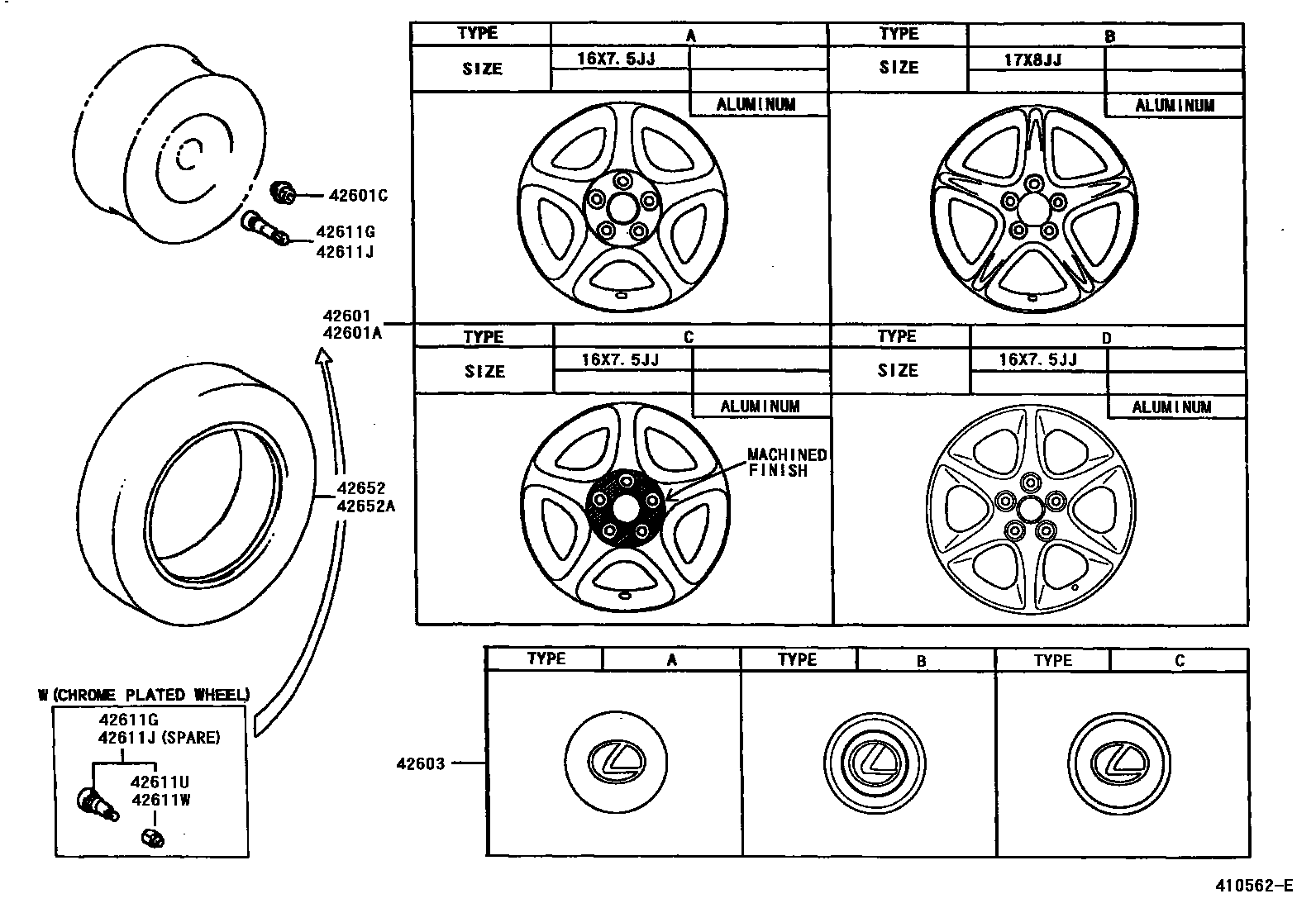

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-3A071iJZS160199808-200107

17X8JJ,TYPE B:REFER TO ILLUSTRATION

sub42611-3A072

main42611-3A072iJZS160,UZS161..ARL,EUR200107

17X8JJ,TYPE B:REFER TO ILLUSTRATION

main42611-3A090iJZS160199708-199802

16X7.5JJ,TYPE C:REFER TO ILLUSTRATION, MACHINED FINISH

sub42611-3A091

main42611-3A091iJZS160199802-200007

16X7.5JJ,TYPE C:REFER TO ILLUSTRATION, MACHINED FINISH

main42611-3A100iJZS160..ARL199708-199802

16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED

sub42611-3A101

main42611-3A101iJZS160..ARL199802-200007

16X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED

main42611-3A111iJZS160..ARL199808

17X8JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED

main42611-3A120iJZS160..ARL199801-199802

16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION,ALUMINUM POLISH

sub42611-3A121

main42611-3A121iJZS160..ARL199802-200007

16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION,ALUMINUM POLISH

main42611-3A131iUZS161;JZS160..ARL199808

17X8JJ,TYPE B:REFER TO ILLUSTRATION,ALUMINUM POLISH

main42611-3A210iJZS160200007-200107

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION

sub42611-3A211

main42611-3A211iJZS160..ARL,EUR200107-200108

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION

main42611-3A220iJZS160..ARL200007

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION;CHROME PLATED

main42611-3A230iJZS160..ARL200007

16X7 1/2JJ,SUPER CHROME METALLIC COATING, TYPE D:REFER TO ILLUSTRATION

main42611-3A241iJZS160..GCC200107-200108

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION

sub42611-3A211

42601AWHEEL, DISC (FOR SPARE)

main42611-3A071iJZS160,UZS161..ARL,EUR199808-200107

17X8JJ,TYPE B:REFER TO ILLUSTRATION

sub42611-3A072

main42611-3A072iJZS160,UZS161..ARL,EUR200107

17X8JJ,TYPE B:REFER TO ILLUSTRATION

main42611-3A090iJZS160199708-199802

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

sub42611-3A091

main42611-3A091iJZS160199802-200007

16X7.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-3A100iJZS160..ARL199708-199802

16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED

sub42611-3A101

main42611-3A101iJZS160..ARL199802-200007

16X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION, CHROME PLATED

main42611-3A111iJZS160..ARL199808

17X8JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED

main42611-3A120iJZS160..ARL199801-199802

16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION,ALUMINUM POLISH

sub42611-3A121

main42611-3A121iJZS160..ARL199802-200007

16X7 1/2JJ,TYPE A:REFER TO ILLUSTRATION,ALUMINUM POLISH

main42611-3A131iUZS161;JZS160..ARL199808

17X8JJ,TYPE B:REFER TO ILLUSTRATION,ALUMINUM POLISH

main42611-3A210iJZS160200007-200107

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION

sub42611-3A211

main42611-3A211iJZS160..ARL,EUR200107-200108

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION

main42611-3A220iJZS160..ARL200007

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION;CHROME PLATED

main42611-3A230iJZS160..ARL200007

16X7 1/2JJ,SUPER CHROME METALLIC COATING, TYPE D:REFER TO ILLUSTRATION

main42611-3A241iJZS160..GCC200107-200108

16X7 1/2JJ,TYPE D:REFER TO ILLUSTRATION

sub42611-3A211

42601CNUT, HUB (FOR AXLE)

main90942-01033iJZS160199808

W(235/45ZR17 TIRE)

main90942-01033iUZS161200007

main90942-01058iJZS160199708-200007

W(215/60R16 TIRE)

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30360iJZS160199708-200007

*CHR,TYPE A:REFER TO ILLUSTRATION, W(MACHINED FINISH WHEEL)

main42603-30370iJZS160..ARL199708-200007

*CHR,TYPE A:REFER TO ILLUSTRATION, W(16INCH CROME PLATED WHEEL)

main42603-30390iUZS161200007

*ALU,TYPE C:REFER TO ILLUSTRATION

main42603-30390iJZS160199808-200007

*ALU,TYPE C:REFER TO ILLUSTRATION, W(17INCHES ALUMINUM WHEEL)

main42603-30400iJZS160..ARL199808

*CHR,TYPE C:REFER TO ILLUSTRATION, W(17INCHES CHROME PLATED WHEEL)

main42603-30400iUZS161200007

*CHR,TYPE C:REFER TO ILLUSTRATION

main42603-30480iJZS160200007

*CHR,TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iJZS160,UZS161199708

main90942-05028iUZS161;JZS160..ARL199708

W(CHROME PLATED WHEEL)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJZS160,UZS161199708

main90942-05028iUZS161;JZS160..ARL199708

W(CHROME PLATED WHEEL)

42611UCAP, TIRE VALVE

main90942-05029iUZS161;JZS160..ARL199708

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05029iUZS161;JZS160..ARL199708

42652TIRE

main42652-30560iJZS160..RHD199708-200406

225/55R16 94V

sub42652-30561

main42652-30561iJZS160..RHD200407

225/55R16 94V

main42652-30610iJZS160..LHD199708-200406

225/55R16 94V

sub42652-30611

main42652-30611iJZS160..LHD200407

225/55R16 94V

main42652-30640iJZS160..GCC199808-200007

235/45ZR17

main42652-30650iJZS160,UZS161..RHD..EUR199808-200107

235/45ZR17

main42652-30660iJZS160..LHD..EUR199808-200007

235/45ZR17

main42652-30740iJZS160,UZS161..LHD..EUR200007

235/45R17

sub42652-30741

main42652-30741iJZS160,UZS161..LHD..EUR200407

235/45ZR17

main42652-30750iJZS160..ARL200007-200406

235/45R17

sub42652-30751

main42652-30751iJZS160,UZS161..RHD..EUR200406

235/45ZR17

42652ATIRE (FOR SPARE)

main42652-30560iJZS160..RHD199708-200406

225/55R16 94V

sub42652-30561

main42652-30561iJZS160..RHD200407

225/55R16 94V

main42652-30610iJZS160..LHD199708-200406

225/55R16 94V

sub42652-30611

main42652-30611iJZS160..LHD200407

225/55R16 94V

main42652-30640iJZS160..GCC199808-200007

235/45ZR17

main42652-30650iJZS160,UZS161..RHD..EUR199808-200107

235/45ZR17

main42652-30660iJZS160..LHD..EUR199808-200007

235/45ZR17

main42652-30740iJZS160,UZS161..LHD..EUR200007

235/45R17

sub42652-30741

main42652-30741iJZS160,UZS161..LHD..EUR200407

235/45ZR17

main42652-30750iJZS160,UZS161..RHD..EUR200007-200406

235/45R17

sub42652-30751

main42652-30751iJZS160,UZS161..RHD..EUR200406

235/45ZR17

10 parts on this diagram · 3 diagrams in section
