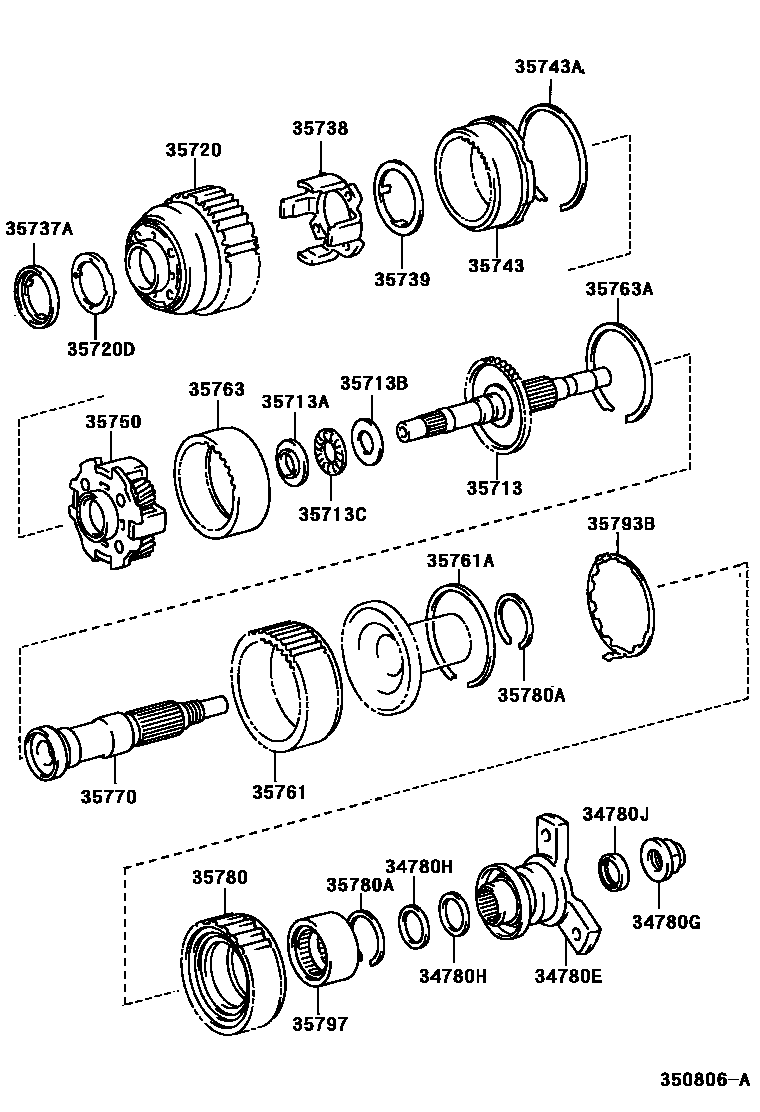

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780HWASHER, PLATE (FOR ATM FLANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
35713SHAFT, INTERMEDIATE
35713ARACE, THRUST BEARING, NO.1 (FOR INTERMEDIATE SHAFT)
35713BRACE, THRUST BEARING, NO.2 (FOR INTERMEDIATE SHAFT)
35713CBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35720GEAR ASSY, FRONT PLANETARY
35720DWASHER (FOR FRONT PLANETARY GEAR)
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35750GEAR ASSY, CENTER PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35770SHAFT ASSY, OUTPUT
35780CLUTCH ASSY, 1 WAY NO.2
35780ARING, SNAP (FOR 1 WAY CLUTCH)
35793BRETAINER, 1 WAY CLUTCH
35797RACE, 1 WAY CLUTCH INNER
25 parts on this diagram · 1 diagram in section
