BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35077FLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077ARACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE)
NO.1
NO.2
35077BBEARING, THRUST NEEDLE ROLLER, NO.1
35077CBEARING, THRUST NEEDLE ROLLER, NO.2
35622PISTON, BRAKE, NO.2
35622ERING, O (FOR BRAKE PISTON NO.2)
INNER
OUTER
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35626SLEEVE, BRAKE REACTION
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35629SPRING (1ST & REVS BRAKE PLATE STOPPER)
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
T=2.0
T=2.2
T=2.4
T=2.6
T=2.8
T=3.0
T=1.8
T=1.9
T=2.1
T=2.3
T=2.5
T=2.7
T=2.9
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
T=6.0
35676FRING, SNAP (FOR TRANSMISSION CASE)
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

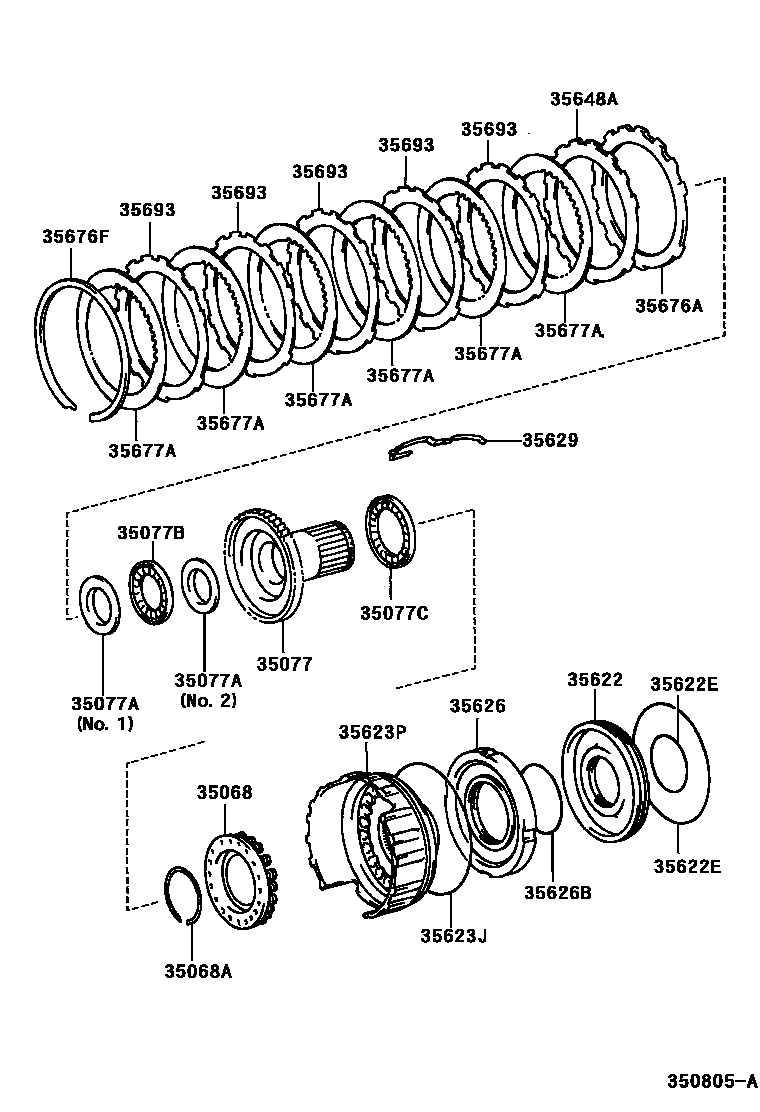

18 parts on this diagram · 1 diagram in section
