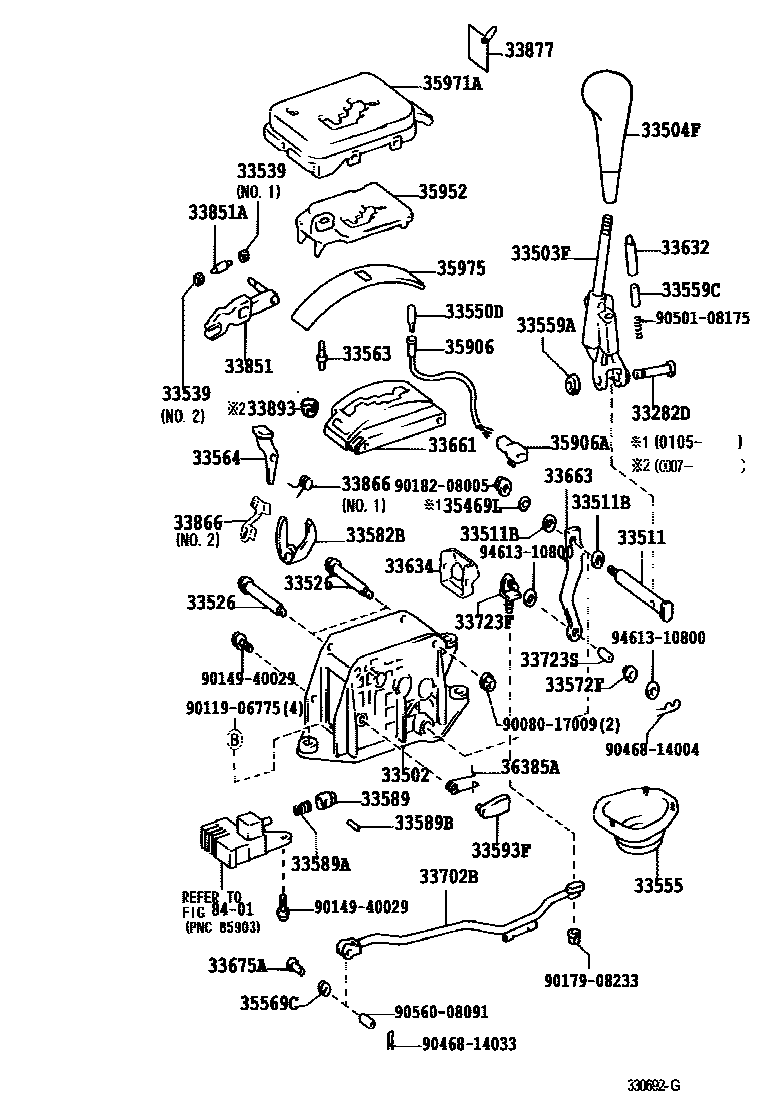

SHIFT LEVER & RETAINER
33282DPIN, LEVER LOCK, NO.2
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
LEATHER,DK.CHARCOAL,TRIM1#
LEATHER,BLACK,TRIM2#
LEATHER,SANDAL WOOD,TRIM0#
BLACK WOOD PACKAGE,DK.CHARCOAL,TRIM1#
SPORT PACKAGE(UK/GERMANY),BLACK,TRIM22
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),DK.CHARCOAL,TRIM14
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM22
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM22
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),SANDAL WOOD,TRIM02
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33526PLATE, SHIFT LEVER SUPPORT, NO.1
33539CUSHION, SHIFT LEVER ANTI-RATTLE
NO.1
NO.2
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33555BOOT, SHIFT LEVER
33559ANUT, SHIFT LEVER, NO.1
33559CDAMPER, SHIFT LEVER SPRING
33563BUTTON, SHIFT LOCK RELEASE
33564LINK, SHIFT LOCK RELEASE, NO.1
33572FBUSH, CONTROL SHAFT LOWER
33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)
33589LINK, SHIFT LOCK SOLENOID
33589ASPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK)
33589BPIN, SLOTTED SPRING (FOR SHIFT LOCK SOLENOID LINK)
33593FHOLDER, SPRING (FOR FLOOR SHIFT)
33632ROD, DETENT, NO.2
33634PROTECTOR, WIRE
33661HOUSING, SHIFT LEVER GUIDE
33663LEVER, CONTROL
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33851PLATE, SHIFT LOCK SWITCH
33851AROLLER (FOR SHIFT LOCK SWITCH)
33866SPRING, SHIFT LOCK RELEASE
NO.1
NO.2
33877LABEL, SHIFT LOCK INFORMATION, NO.1
33893CAP, SHIFT LOCK PLATE STOPPER
35469LSPACER, SHIFT LEVER
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
35952LENS, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
36385ASPRING, FLOOR SHIFT LEVER TORSION, NO.1
8401
9008017009
9011906775
9014940029
9017908233
9018208005
9046814004
9046814033
9050108175
9056008091
9461310800
52 parts on this diagram · 2 diagrams in section
