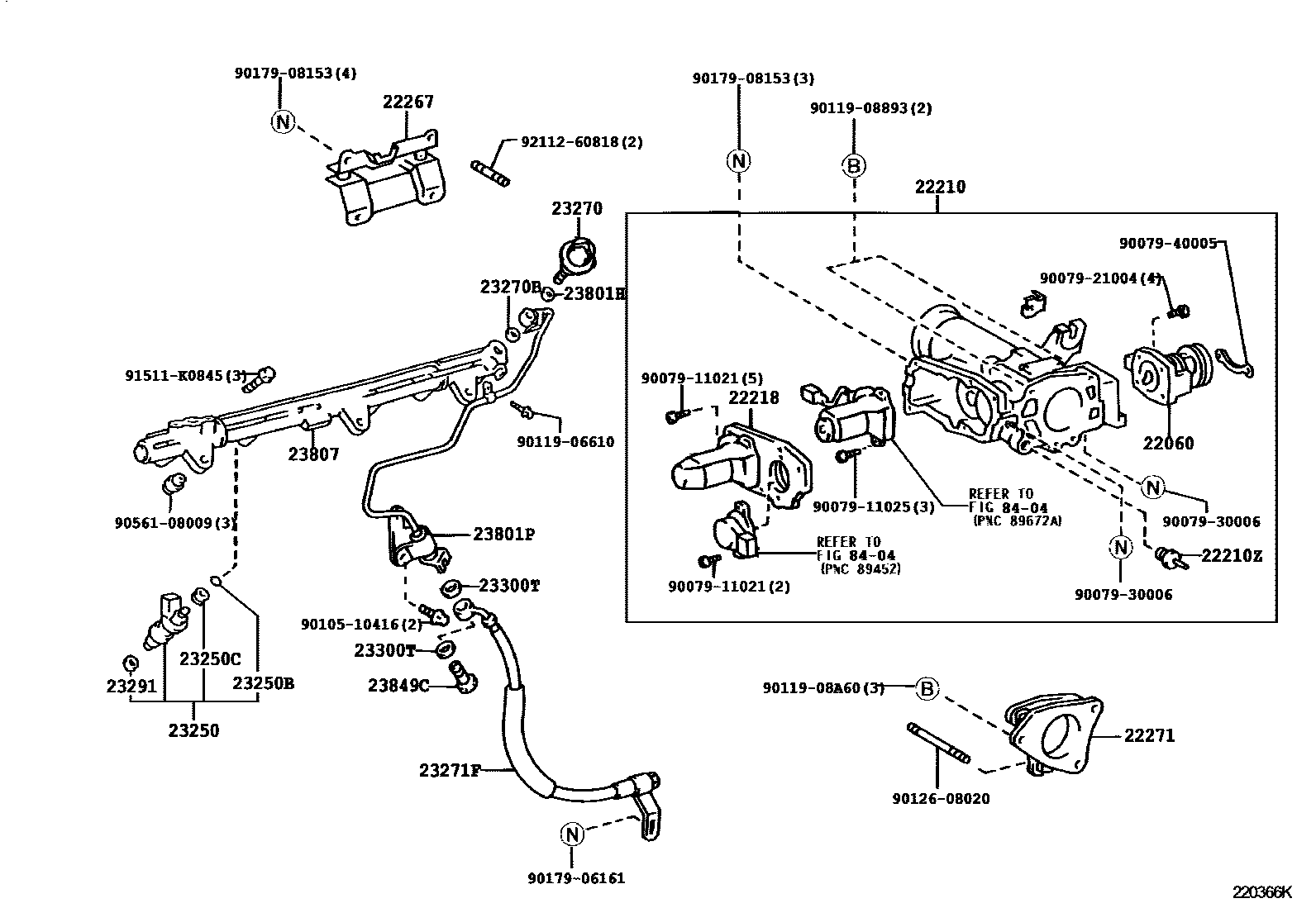

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

22060LEVER ASSY, THROTTLE W/SENSOR

main22060-46010i2JZGE..JZS160199708-200007

main22060-46070i2JZGE..JZS160200007-200501

22210BODY ASSY, THROTTLE

main22030-46120i2JZGE..JZS160..LHD199908-200007

main22030-46130i2JZGE..JZS160..RHD199708-200007

main22030-46150i2JZGE..JZS160..GCC199801-199908

main22030-46210i2JZGE..JZS160..RHD200007-200501

main22030-46220i2JZGE..JZS160..LHD200007-200501

main22030-50160i3UZFE..UZS161200007-200501

22210ZTHERMOSTAT, MANIFOLD

main90916-03104i2JZGE..JZS160199708-200501

22218COVER(FOR THROTTLE BODY)

main22218-46120i2JZGE..JZS160199708-200501

22267BRACKET, THROTTLE BODY

main22267-46030i2JZGE..JZS160199708-200501

22271GASKET, THROTTLE BODY

main22271-46070i2JZGE..JZS160199708-200501

main22271-50042i3UZFE..UZS161200007-200501

23250INJECTOR ASSY, FUEL

main23209-46090×6i2JZGE..JZS160199708-200501

main23209-50030×4i3UZFE..UZS161200007-200501

NO.1

main23209-50050×4i3UZFE..UZS161200007-200501

NO.2

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×12i2JZGE..JZS160199708-200501

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i2JZGE..JZS160199708-200501

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46021i2JZGE..JZS160199708-200501

main23270-50010×2i3UZFE..UZS161200007-200501

sub23270-50011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081×2i3UZFE..UZS161200007-200501

DAMPER SIDE

main90430-12026i2JZGE..JZS160199708-200501

23271FHOSE, FUEL

main23271-46220i2JZGE..JZS160199708

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×8i3UZFE..UZS161200007-200501

main23291-62010×6i2JZGE..JZS160199708-200501

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i2JZGE..JZS160199708

23801HGASKET(FOR FUEL PIPE)

main90430-14008i2JZGE..JZS160199708-200501

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-46031i2JZGE..JZS160199708-200501

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-46030i2JZGE..JZS160199708-200310

main23807-46031i2JZGE..JZS160200310-200501

main23807-50030i3UZFE..UZS161200007-200306

main23807-50031i3UZFE..UZS161200306-200501

23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)

main90401-12029i2JZGE..JZS160199708

8404

9007911021

main90079-11021

9007911025

main90079-11025

9007921004

main90079-21004

9007930006

main90079-30006

9007940005

main90079-40005

9010510416

main90105-10416

9011906610

main90119-06610

9011908893

main90119-08893

9011908A60

main90119-08A60

9012608020

main90126-08020

9017906161

main90179-06161

9017908153

main90179-08153

9056108009

main90561-08009

91511K0845

main91511-K0845

9211260818

main92112-60818

34 parts on this diagram · 5 diagrams in section
