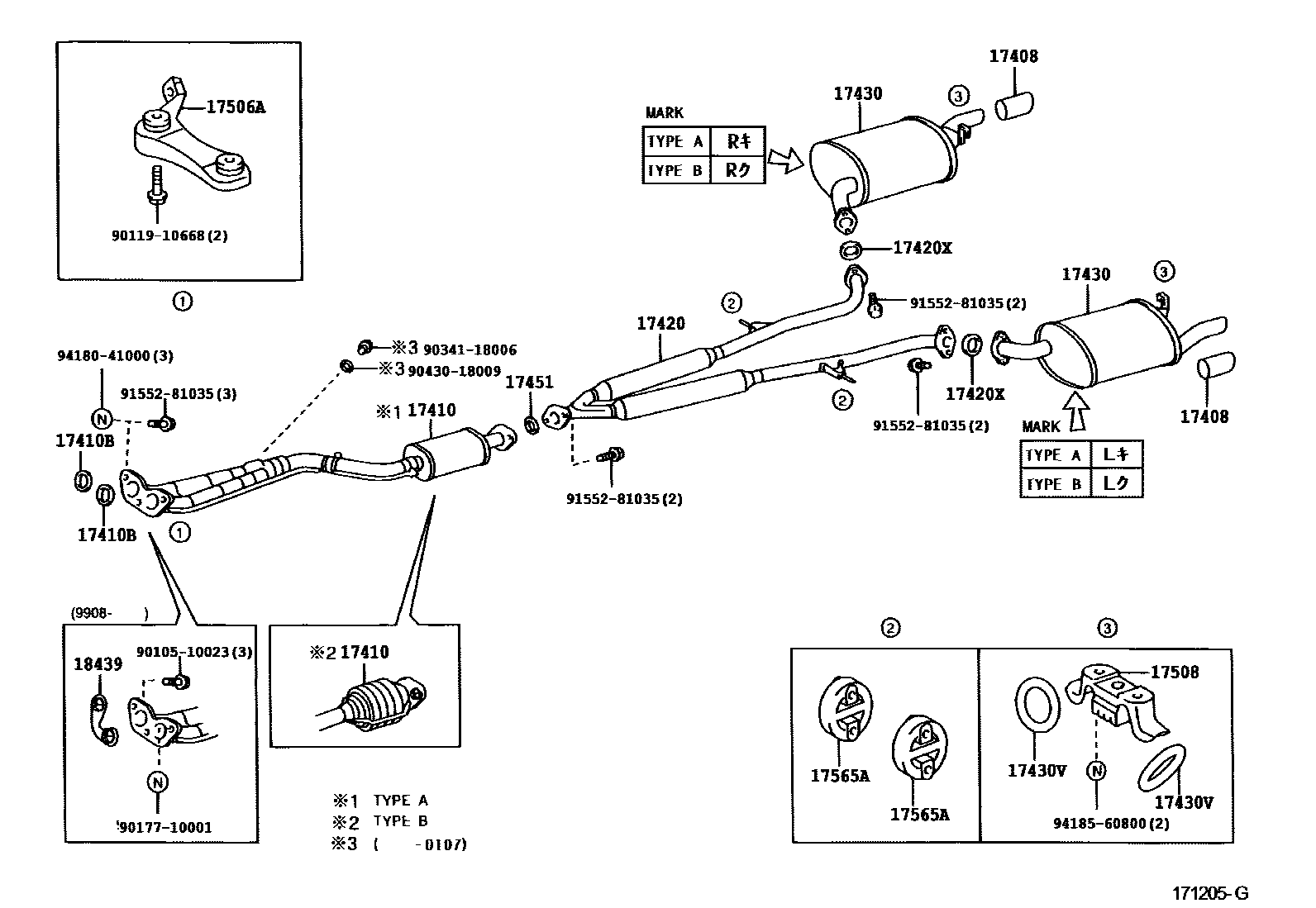

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
TYPE A:REFER TO ILLUSTRATION
*114=TOYOTA/DA1/Y,TYPE B:REFER TO ILLUSTRATION
*115=TOYOTA/00-/Y
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
RH
TYPE A:REFER TO ILLUSTRATION,RH
TYPE B:REFER TO ILLUSTRATION,RH
RH
LH
TYPE A:REFER TO ILLUSTRATION,LH
TYPE B:REFER TO ILLUSTRATION,LH
LH
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
NO.1
NO.2
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
18439BRACKET, CONVERTOR PROTECTOR, REAR
9010510023
main90105-10023
9011910668
main90119-10668
9017710001
main90177-10001
9034118006
main90341-18006
9043018009
main90430-18009
9155281035
main91552-81035
9418041000
main94180-41000
9418560800
main94185-60800
20 parts on this diagram · 2 diagrams in section
