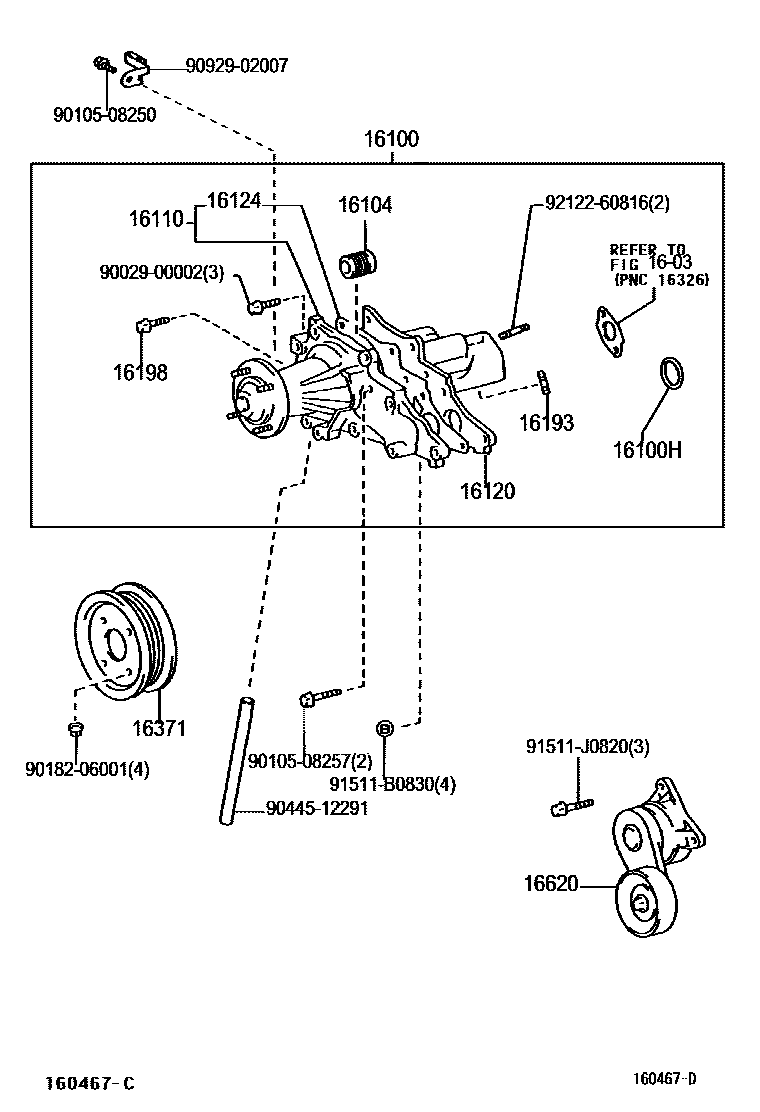

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-49875i2JZGE..JZS160¥17,200199708-200104

sub16100-49876¥17,200

main16100-49876i2JZGE..JZS160¥17,200200104-200501

sub16100-49877¥17,200

main16100-59275i3UZFE..UZS161¥15,800200007-200501

sub16100-59276¥13,700

16100HRING, O(FOR WATER PUMP)

main96761-24040i2JZGE..JZS160¥260199708-200501

16104SEAL SET, WATER PUMP

main16104-46060i2JZGE..JZS160¥3,540199708-200501

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49155i2JZGE..JZS160¥13,300199708-200104

sub16110-49156¥13,300

main16110-49156i2JZGE..JZS160¥13,300200104-200501

16120COVER ASSY, WATER PUMP

main16102-46072i2JZGE..JZS160¥2,790200006-200108

sub16102-46073¥2,790

main16102-46073i2JZGE..JZS160¥2,790200108-200501

main16120-46080i2JZGE..JZS160¥3,740199708-200006

sub16102-46072¥2,790

16124GASKET, WATER PUMP COVER

main16124-46070i2JZGE..JZS160¥620199708-200501

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030i2JZGE..JZS160¥360199708-200501

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46031i2JZGE..JZS160¥250199708-200501

16371PULLEY, FAN

main16371-46040i2JZGE..JZS160¥6,800199708-200501

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W024i2JZGE..JZS160¥29,100199708-200006

sub16620-0W025¥29,000

main16620-0W025i2JZGE..JZS160¥29,000200006-200501

sub16620-0W026¥29,000

main16620-0W100i3UZFE..UZS161¥29,000200007-200501

sub16620-0W101¥28,900

9002900002

main90029-00002¥310

9010508250

main90105-08250¥160

9010508257

main90105-08257¥160

9018206001

main90182-06001¥110

9044512291

main90445-12291¥320

9092902007

main90929-02007¥250

91511B0830

main91511-B0830¥140

91511J0820

main91511-J0820¥130

9212260816

main92122-60816¥170

20 parts on this diagram · 2 diagrams in section
