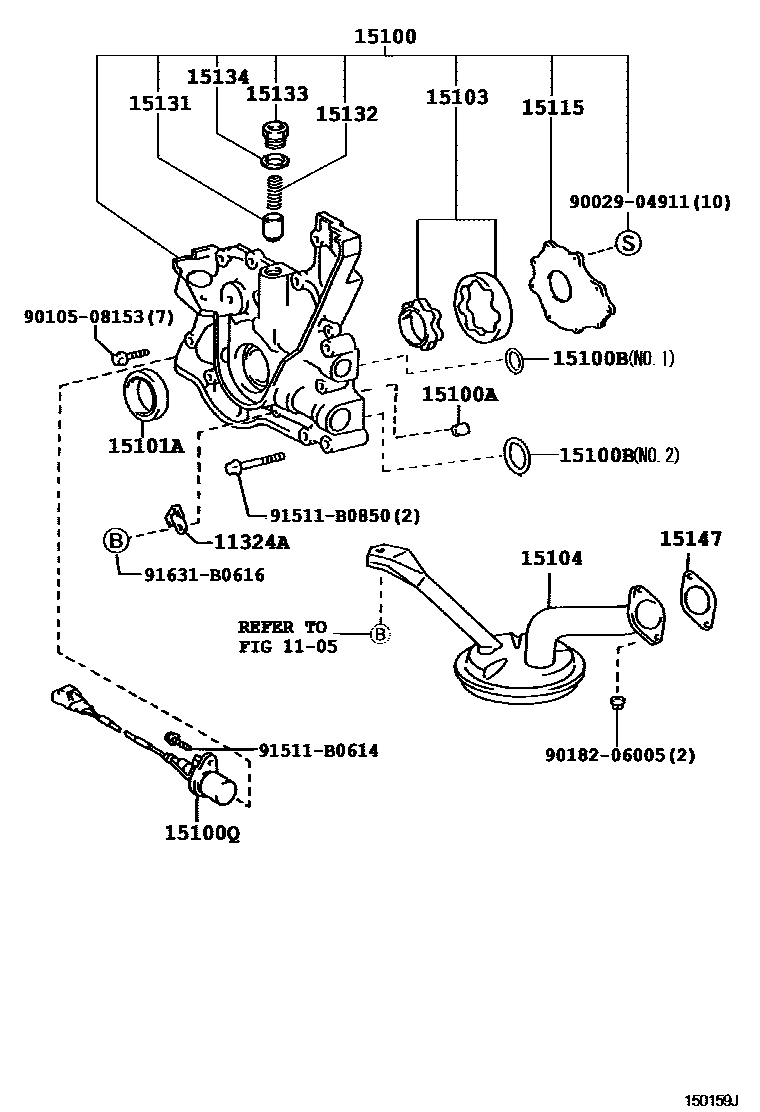

ENGINE OIL PUMP
1105
11324APLATE, TIMING BELT
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
NO.1
NO.2
15100QSENSOR, CRANK POSITION
15101ASEAL(FOR CRANKSHAFT)
15103GEAR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15134GASKET, OIL PUMP RELIEF VALVE
15147GASKET, OIL STRAINER
9002904911
main90029-04911
9010508153
main90105-08153
9018206005
main90182-06005
91511B0614
main91511-B0614
91511B0850
main91511-B0850
91631B0616
main91631-B0616
21 parts on this diagram · 2 diagrams in section
