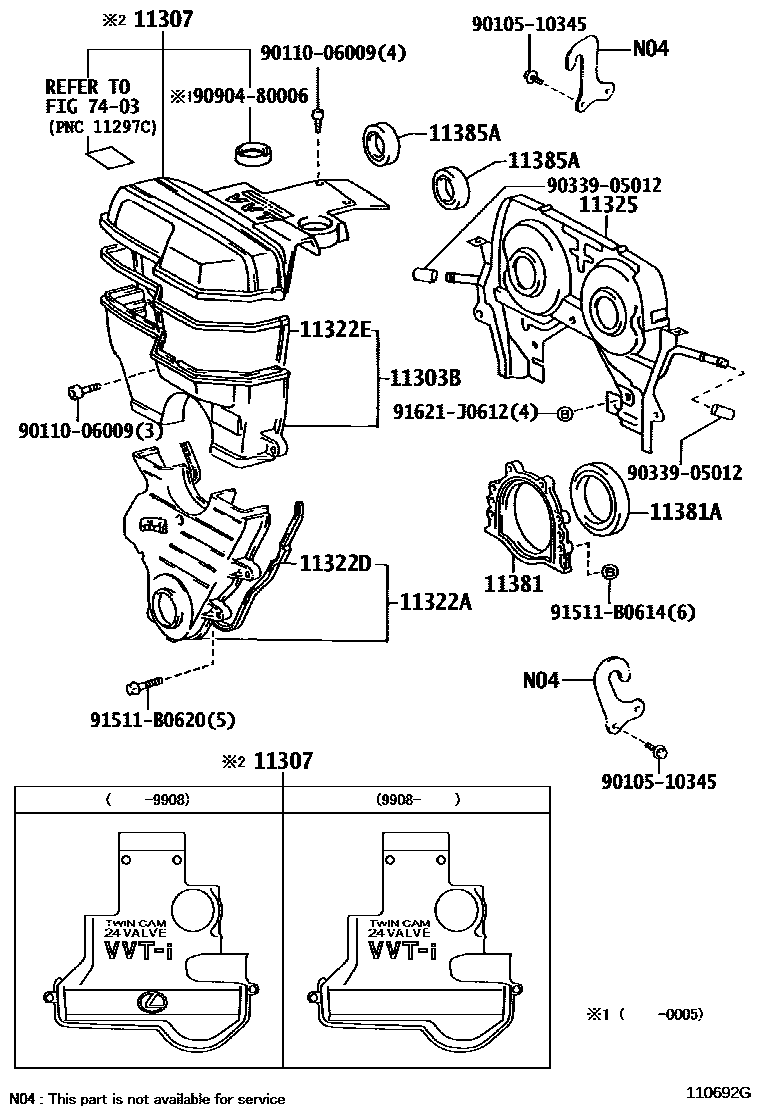

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-46040i2JZGE..JZS160199708-200501

main11303-50030i3UZFE..UZS161200007-200501

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-46060i2JZGE..JZS160200007-200501

main11304-46070i2JZGE..JZS160199908-200007

main11304-46100i2JZGE..JZS160199708-199908

11322ACOVER, TIMING BELT, NO.1

main11302-46031i2JZGE..JZS160199708-200501

main11302-50040i3UZFE..UZS161200007-200501

11322DGASKET, TIMING BELT COVER, NO.1

main11328-46041i2JZGE..JZS160199708-200501

main11328-50040i3UZFE..UZS161200007-200501

11322EGASKET, TIMING BELT COVER, NO.2

main11329-46040i2JZGE..JZS160199708-200501

11325COVER, TIMING BELT, NO.4

main11325-46042i2JZGE..JZS160199708-200501

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i2JZGE..JZS160199708-200501

main11381-50021i3UZFE..UZS161200007-200501

11381ASEAL, ENGINE REAR OIL

main90311-90006i2JZGE..JZS160199708-200501

main90311-95012i3UZFE..UZS161200007-200501

sub90311-95013

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-40020i2JZGE..JZS160199708-200501

7403

9010510345

main90105-10345

9011006009

main90110-06009

9033905012

main90339-05012

9090480006

main90904-80006

91511B0614

main91511-B0614

91511B0620

main91511-B0620

91621J0612

main91621-J0612

17 parts on this diagram · 2 diagrams in section
