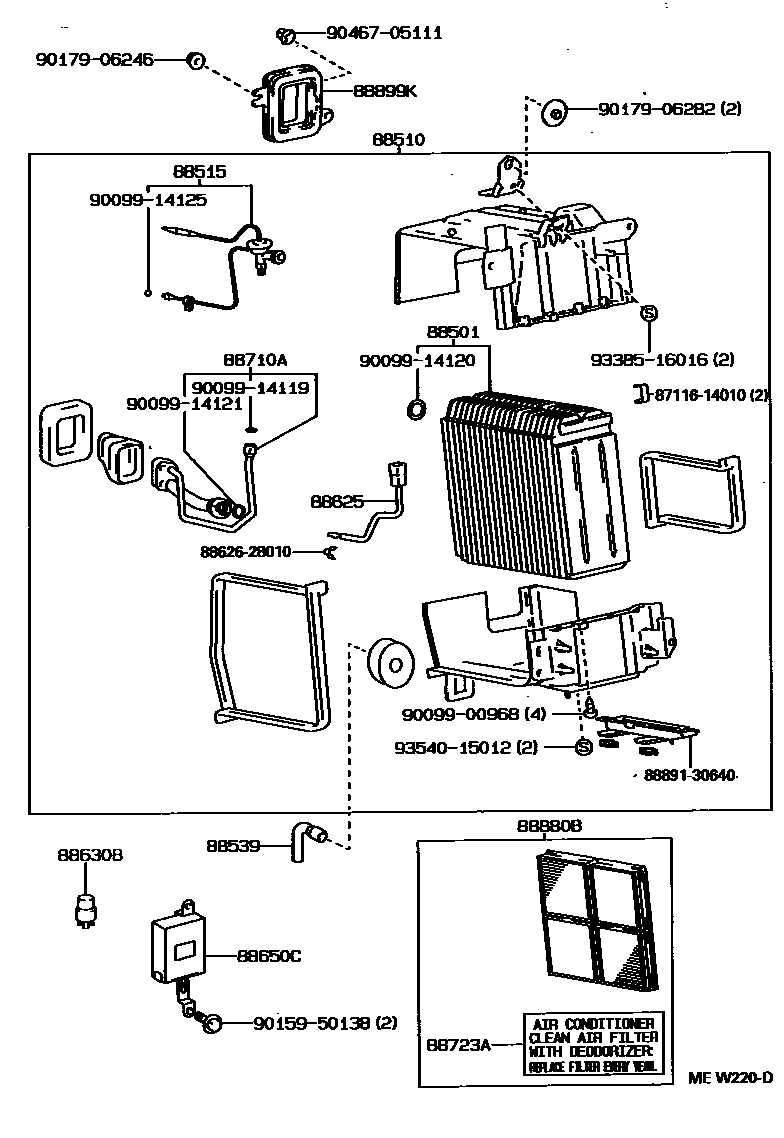

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30700iJZS147..RHD199308-199505

sub88501-30701

main88501-30701iJZS147..RHD199505-199708

main88501-30750iJZS147..LHD199303-199411

sub88501-30751

main88501-30751iJZS147..LHD199411-199708

88510UNIT ASSY, COOLER

main88510-3A800iJZS147..LHD199303-199708

main88510-3F150iJZS147..RHD199308-199708

88515VALVE, COOLER EXPANSION

main88515-30530iJZS147..RHD¥10,300199308-199708

sub88515-22160¥10,500

main88515-50040iJZS147..LHD¥10,300199303-199708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30650iJZS147..RHD199308-199708

main88539-30710iJZS147..LHD199303-199708

88625THERMISTOR, COOLER, NO.1

main88625-3A020iJZS147199303-199708

sub88625-3A090

88630BRELAY ASSY, COOLER

main90987-02009iJZS147¥4,250199308-199708

main90987-02010iJZS147¥2,980199303-199308

sub90987-02009¥4,250

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-30750iJZS147..RHD199308-199708

main88650-30810iJZS147..LHD199303-199508

sub88650-30811

main88650-30811iJZS147..LHD199508-199708

88710ATUBE ASSY, AIR CONDITIONER

main88710-30650iJZS147..LHD¥8,000199303-199708

main88710-30790iJZS147..RHD¥8,800199308-199708

88723ALABEL, COOLER SERVICE CAUTION

main88723-50120iJZS147..LHD199303-199708

88880BFILTER ASSY, CLEAN AIR

main88880-30040iJZS147..LHD¥4,500199303-199708

main88880-30050iJZS147..RHD¥4,500199308-199708

88899KPLATE, COVER

main88899-30750iJZS147..RHD199308-199708

main88899-30770iJZS147..LHD199303-199708

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8889130640PACKING (FOR COOLER)

main88891-30640

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9009914125

main90099-14125

9015950138

main90159-50138¥70

9017906246

main90179-06246¥140

9017906282

main90179-06282¥90

9046705111

main90467-05111¥110

9338516016

main93385-16016¥80

9354015012

main93540-15012¥70

25 parts on this diagram · 1 diagram in section
