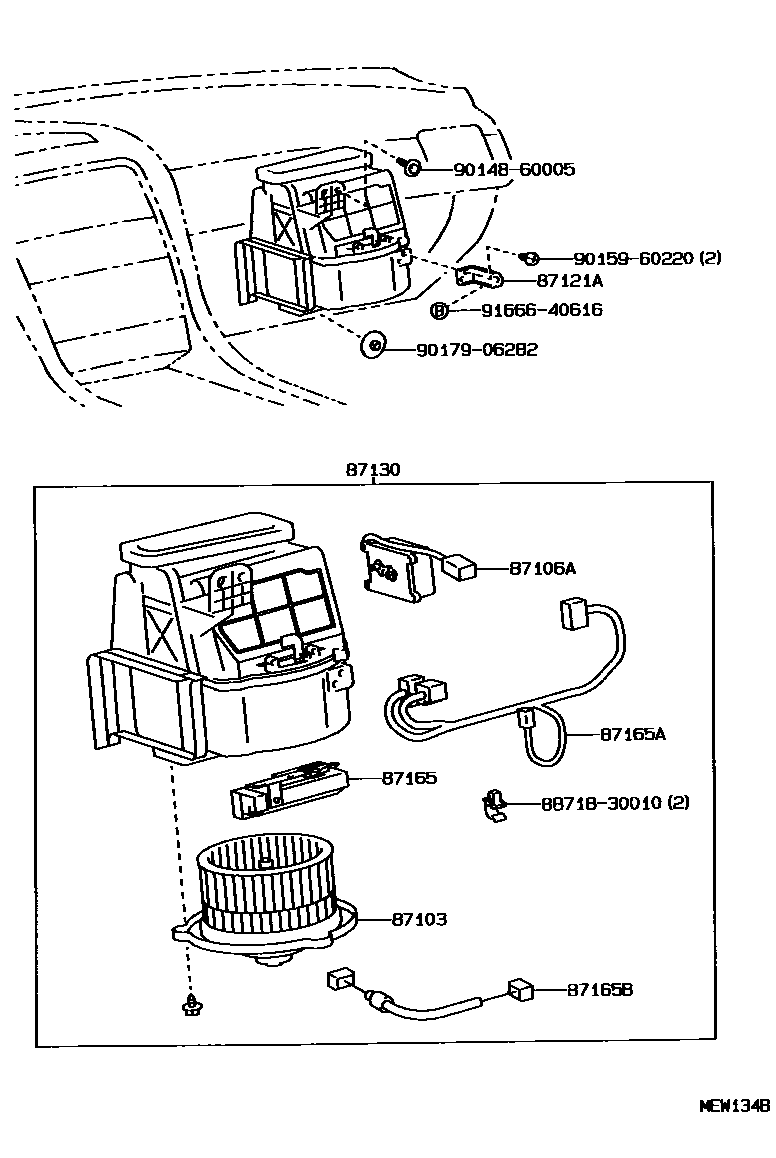

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-30310iJZS147..RHD199308-199708

main87103-30330iJZS147..LHD199303-199708

87106ASERVO SUB-ASSY, DAMPER

main87106-30170iJZS147..RHD199308-199708

FRESH-RECIRC

main87106-30180iJZS147..RHD199308-199708

MODE

main87106-30190iJZS147..RHD199308-199708

AIR-MIX

main87106-30200iJZS147..RHD199308-199708

BI-LEVEL

main87106-30270iJZS147..LHD199303-199708

RADIATOR,AIR MIX

main87106-30280iJZS147..LHD199303-199708

RADIATOR,BI-LEVEL

main87106-30290iJZS147..LHD199303-199708

RADIATOR,MODE

main87106-30300iJZS147..LHD199303-199708

BLOWER

87121ABRACKET, HEATER

main87121-30030iJZS147..RHD199308-199708

main87121-30050iJZS147..LHD199303-199708

87130BLOWER ASSY, HEATER, FRONT

main87130-30500iJZS147..RHD199308-199708

main87130-30560iJZS147..LHD199303-199708

87165CONTROL, BLOWER MOTOR, NO.1

main87165-30010iJZS147..RHD199308-199708

sub87165-30020

main87165-30090iJZS147..LHD199303-199708

sub87165-30080

87165ACONTROL, BLOWER MOTOR, NO.2

main87165-30050iJZS147..RHD199308-199708

main87165-30070iJZS147..LHD199303-199708

87165BCONTROL, BLOWER MOTOR, NO.3

main87165-30060iJZS147..RHD199308-199708

8871830010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30010

9014860005

main90148-60005

9015960220

main90159-60220

9017906282

main90179-06282

9166640616

main91666-40616

12 parts on this diagram · 2 diagrams in section
