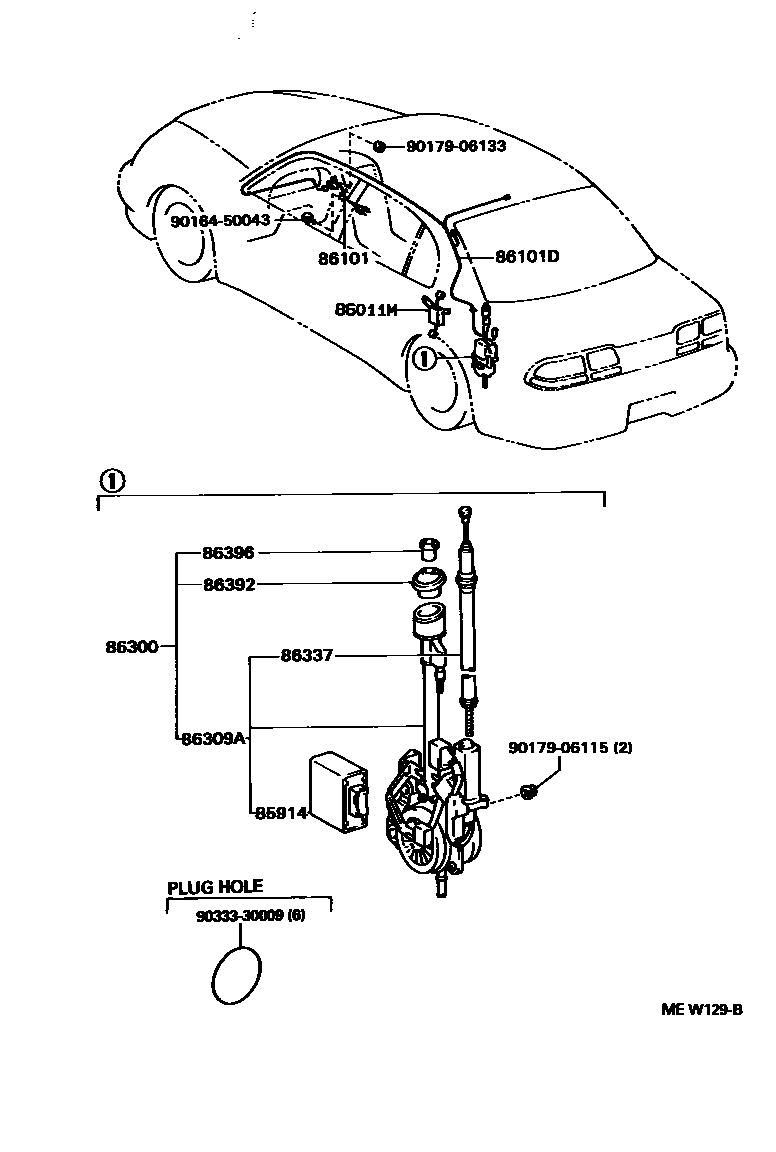

ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30020iJZS147199508-199708

main85914-50010iJZS147199303-199508

86011MFILTER, NOISE

main90980-05273iJZS147..EUR199508-199708

86101CORD SUB-ASSY, ANTENNA

main86101-30450iJZS147..LHD199303-199508

main86101-30451iJZS147..LHD199508-199708

main86101-30480iJZS147..RHD199308-199508

main86101-30481iJZS147..RHD199508-199708

main86101-30620iJZS147..RHD199608-199708

SINGAPORE SPEC OR HONG KONG SPEC

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30460iJZS147..LHD199303-199508

main86101-30461iJZS147..LHD199508-199708

main86101-30490iJZS147..RHD199308-199508

main86101-30491iJZS147..RHD199508-199708

main86101-30630iJZS147..RHD199608-199708

SINGAPORE SPEC OR HONG KONG SPEC

86300ANTENNA ASSY, W/HOLDER

main86300-30850iJZS147199303-199508

main86300-30851iJZS147199508-199708

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-30090iJZS147199303-199508

main86309-30091iJZS147199508-199708

86337ROD & PIPE, SEALED W/CABLE

main86337-24180iJZS147199303-199508

sub86337-24181

main86337-30851iJZS147199508-199708

86392ORNAMENT, ANTENNA

main86392-30090iJZS147199303-199508

main86392-30091iJZS147199508-199708

86396NUT, ANTENNA

main86396-20030iJZS147199508-199708

main86396-50010iJZS147199303-199508

9016450043

main90164-50043

9017906115

main90179-06115

9017906133

main90179-06133

9033330009

main90333-30009

13 parts on this diagram · 1 diagram in section
