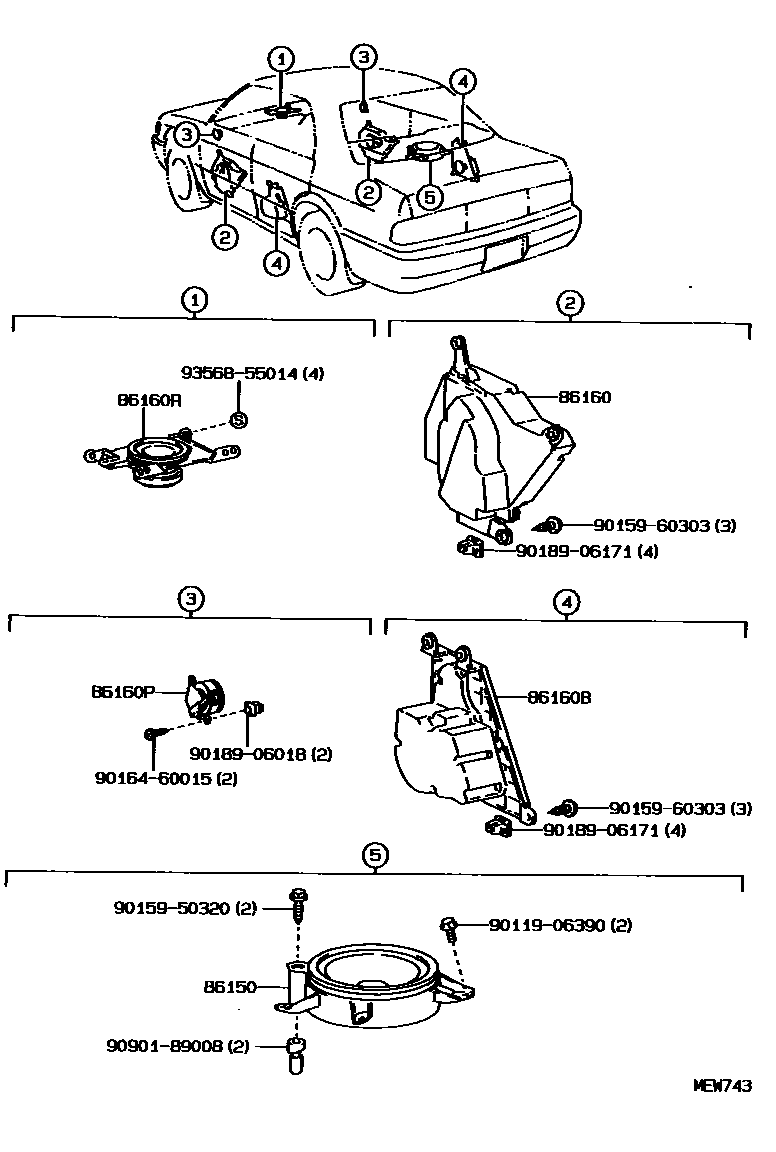

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86160-3A120iJZS147199303-199708

86160SPEAKER ASSY, FRONT NO.1

main86150-30170iJZS147199303-199508

RH

main86150-30171iJZS147199508-199708

RH

main86150-30180iJZS147199303-199508

LH

main86150-30181iJZS147199508-199708

LH

86160BSPEAKER ASSY, REAR

main86150-30210iJZS147199303-199708

RH

main86150-30220iJZS147199303-199708

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-3A140iJZS147199303-199708

RH

main86160-3A150iJZS147199303-199708

LH

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-3A180iJZS147..RHD199308-199708

9011906390

main90119-06390

9015950320

main90159-50320

9015960303

main90159-60303

9016460015

main90164-60015

9018906018

main90189-06018

9018906171

main90189-06171

9090189008

main90901-89008

9356855014

main93568-55014

13 parts on this diagram · 1 diagram in section
