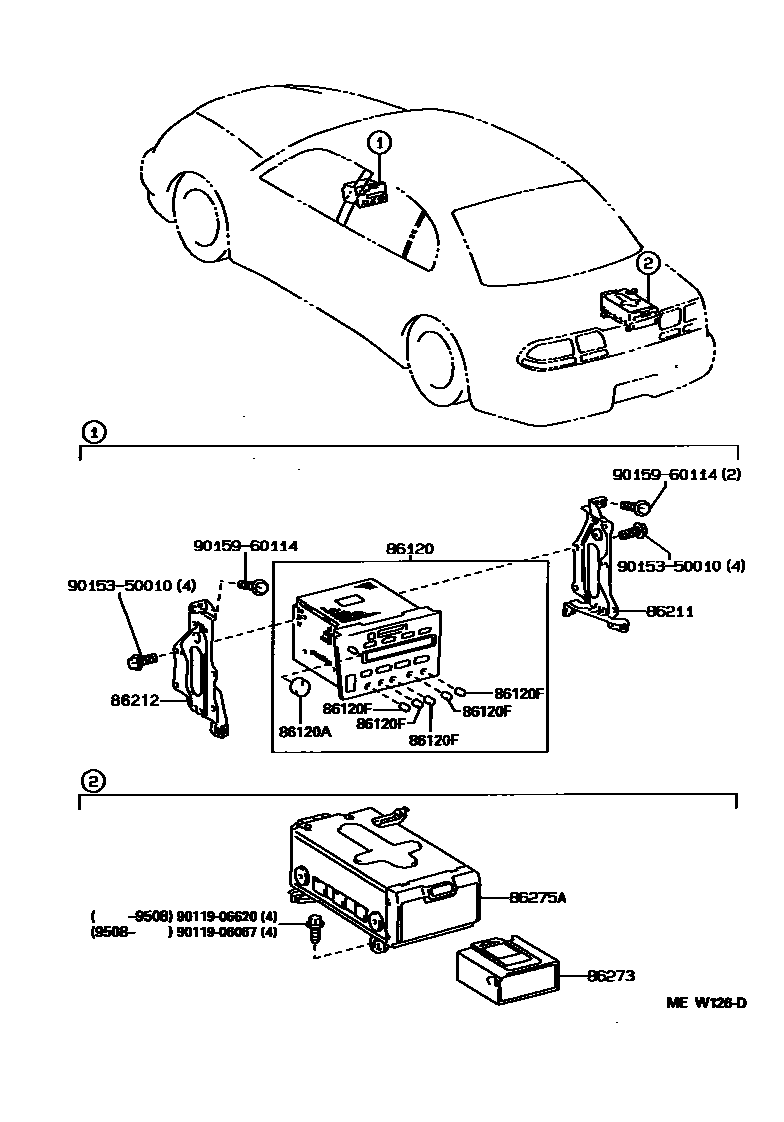

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-3A290iJZS147..GCC199303-199508

main86120-3A291iJZS147..GCC199508-199708

main86120-3A330iJZS147..RHD199308-199708

main86120-3A340iJZS147..LHD..EUR199308-199708

main86120-3A450iJZS147..RHD199510-199608

SINGAPORE SPEC OR HONG KONG SPEC

main86120-3A450iJZS147..RHD199508-199510

SINGAPORE SPEC

main86120-3A451iJZS147..RHD199608-199708

SINGAPORE SPEC OR HONG KONG SPEC

86120AKNOB, RADIO RECEIVER SWITCH

main86127-30010iJZS147..GCC199303-199708

main86127-30030iJZS147..EUR199308-199708

86120FKNOB, RADIO RECEIVER SUB VOLUME

main86127-30050iJZS147..GCC199303-199708

86211BRACKET, RADIO, NO.1

main86211-30170iJZS147..RHD199308-199708

main86211-30190iJZS147..LHD199303-199708

86212BRACKET, RADIO, NO.2

main86212-30150iJZS147..RHD199308-199708

main86212-30160iJZS147..LHD199303-199708

86273MAGAZINE, DISC PLAYER

main86273-33020iJZS147199303-199708

86275ACHANGER, DISC PLAYER

main86270-30070iJZS147199303-199408

sub86270-30071

main86270-30071iJZS147199408-199708

9011906067

main90119-06067

9011906620

main90119-06620

9015350010

main90153-50010

9015960114

main90159-60114

11 parts on this diagram · 2 diagrams in section
