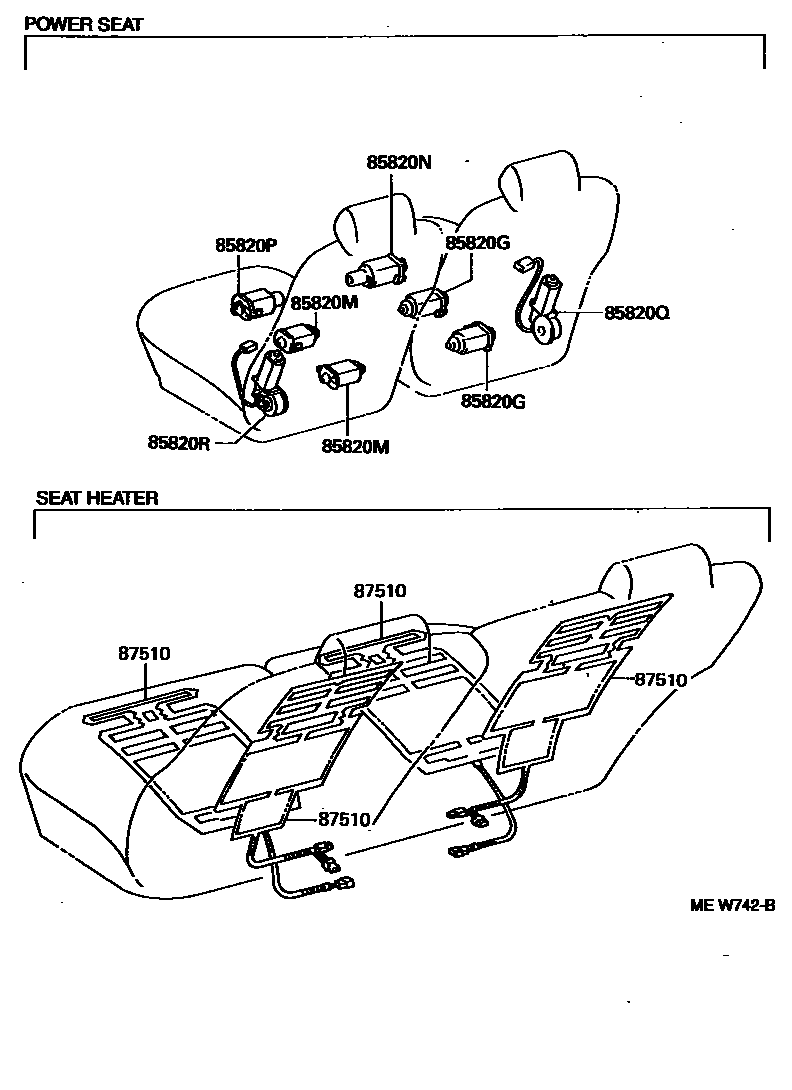

SEAT MOTOR & SEAT HEATER

85820GMOTOR ASSY, POWER SEAT

main85820-30230iJZS147199303-199507

FR VERTICAL

main85820-30240iJZS147199303-199507

FOR REAR VERTICAL

sub85820-30540

main85820-30590iJZS147199507-199708

FR VERTICAL

main85820-30600iJZS147199507-199708

FOR REAR VERTICAL

85820MMOTOR ASSY, POWER SEAT (FOR FRONT LH SEAT RECLINING)

main85820-30390iJZS147199303-199507

FR VERTICAL

sub85820-30530

main85820-30400iJZS147199303-199507

FOR REAR VERTICAL

main85820-30610iJZS147199507-199708

FR VERTICAL

main85820-30620iJZS147199507-199708

FOR REAR VERTICAL

85820NMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE RH)

main85820-30220iJZS147199303-199507

main85820-30650iJZS147199507-199708

85820PMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE LH)

main85820-30290iJZS147199303-199507

main85820-30680iJZS147199507-199708

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-30340iJZS147199303-199708

85820RMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING LH)

main85820-30360iJZS147199303-199708

87510HEATER ASSY, SEAT

main87510-30170iJZS147..EUR199308-199708

SEAT CUSHION,RH

main87510-30180iJZS147..EUR199308-199708

SEAT BACK

main87510-30190iJZS147..EUR199308-199708

SEAT CUSHION,LH

7 parts on this diagram · 1 diagram in section
