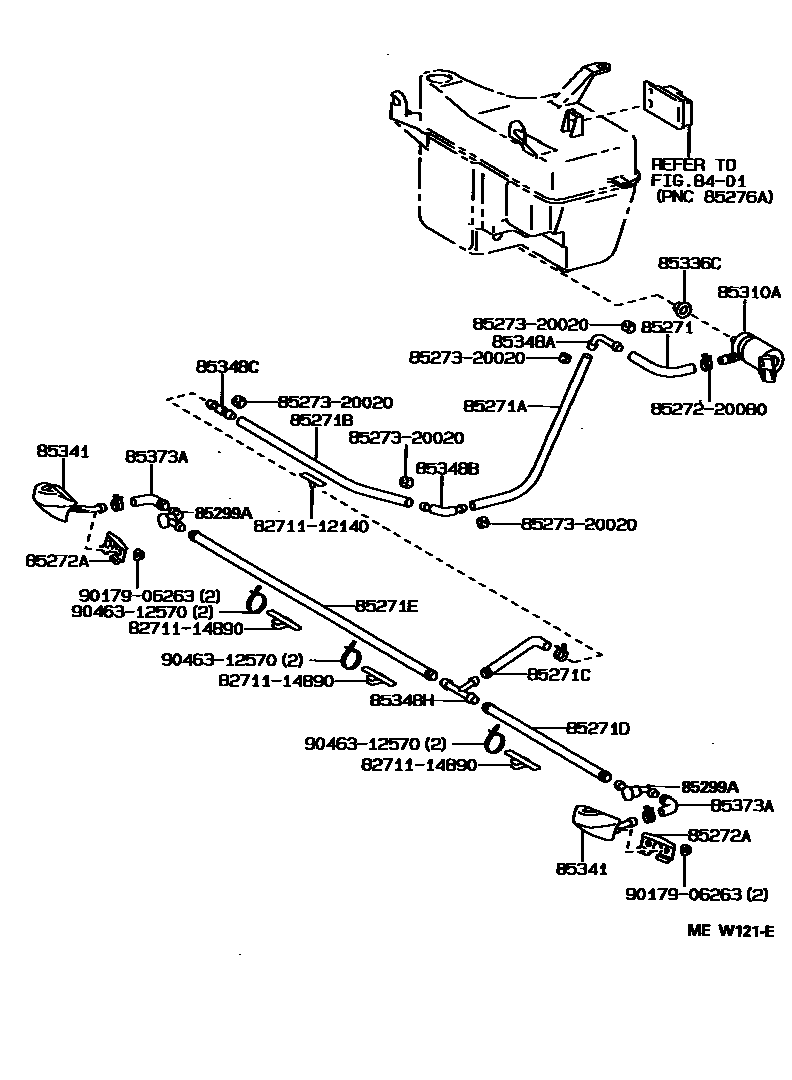

HEADLAMP CLEANER
8401
85271HOSE, HEADLAMP CLEANER, NO.1
L=135
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
L=640
85271CHOSE, HEADLAMP CLEANER, NO.4
sub85271-12020
85271DHOSE, HEADLAMP CLEANER, NO.5
L=640
85271EHOSE, HEADLAMP CLEANER, NO.6
L=640
85272ACLAMP, HEADLAMP CLEANER, NO.1
85299AVALVE ASSY, CHECK
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=35
8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12140
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9017906263
main90179-06263
9046312570
main90463-12570
23 parts on this diagram · 1 diagram in section
