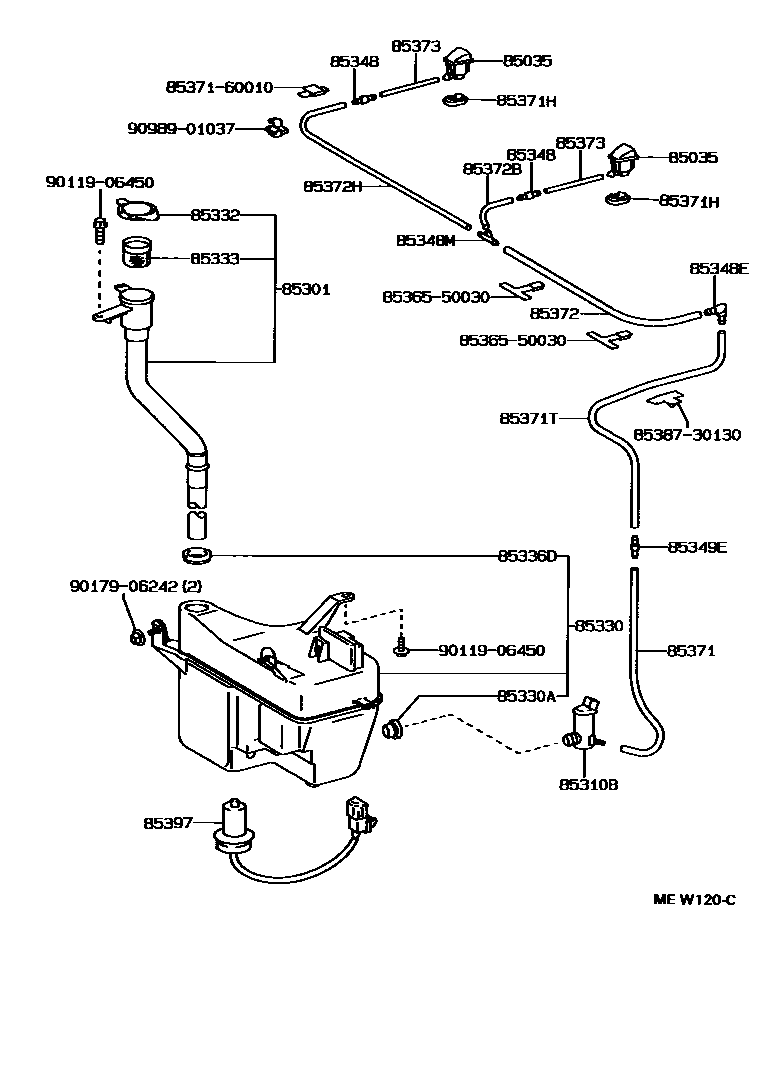

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER
sub85330-33020
85330JAR ASSY, WINDSHIELD WASHER
W(*HC)
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85349EJOINT, WINDSHIELD WASHER HOSE, NO.5
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371HCOVER, WASHER NOZZLE SERVICE HOLE
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
85397SWITCH ASSY,LEVEL WARNING
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-60010
8538730130CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-30130
9011906450
main90119-06450
9017906242
main90179-06242
9098901037
main90989-01037
26 parts on this diagram · 1 diagram in section
