WINDSHIELD WIPER

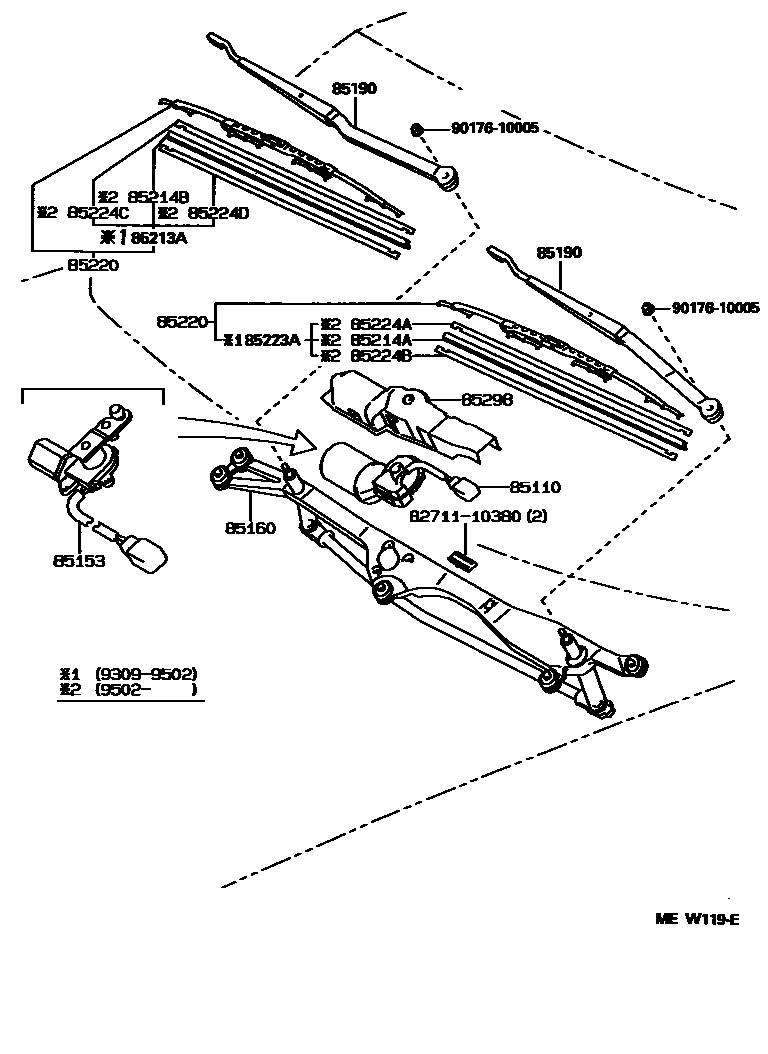

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-30361i199303-199308
main85110-30362i199308-199708
main85110-30370i199308-199708
85153MOTOR, FULL AREA WIPER
main85153-30290i199308-199708
main85153-30310i199303-199708
85160LINK ASSY, WINDSHIELD WIPER
main85150-30291i199308-199708
main85150-30380i199303-199708
85190ARM ASSY, WINDSHIELD WIPER
main85211-30430i199303-199708
RH
main85211-30440i199308-199708
RH
main85221-30310i199303-199708
LH
main85221-30320i199308-199708
LH
main85221-30330i199308-199708
LH
85213ARUBBER, WIPER BLADE, RH
main85213-33021i199303-199502
sub85214-33020
main85223-33022i199308-199502
sub85214-33050
85214ARUBBER, WIPER, RH
main85214-33020i199502-199708
sub85214-34010
main85214-33050i199502-199708
sub85214-40080
85214BRUBBER, WIPER, LH
main85214-30270i199502-199708
sub85214-33020
main85214-33050i199502-199708
sub85214-40080
85220BLADE ASSY, WINDSHIELD WIPER
main85212-30320i199308-199708
RH
sub85212-20370
main85212-33031i199303-199708
RH
sub85212-17071
main85222-30480i199308-199708
LH
sub85222-30381
main85222-30490i199308-199708
LH
sub85222-20340
main85222-33111i199303-199708
LH
sub85222-1G090
85223ARUBBER, FRONT WIPER BLADE, LH
main85223-30410i199308-199502
sub85214-30270
main85223-33022i199303-199502
sub85214-33050
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-28090i199502-199708
main85224-33050i199502-199708
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-28080i199502-199708
main85224-33050i199502-199708
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-28090i199502-199708
main85224-33050i199502-199708
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-28080i199502-199708
main85224-33050i199502-199708
85298COVER, WIPER MOTOR
main85111-30290i199303-199708
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9017610005
main90176-10005

16 parts on this diagram · 1 diagram in section
