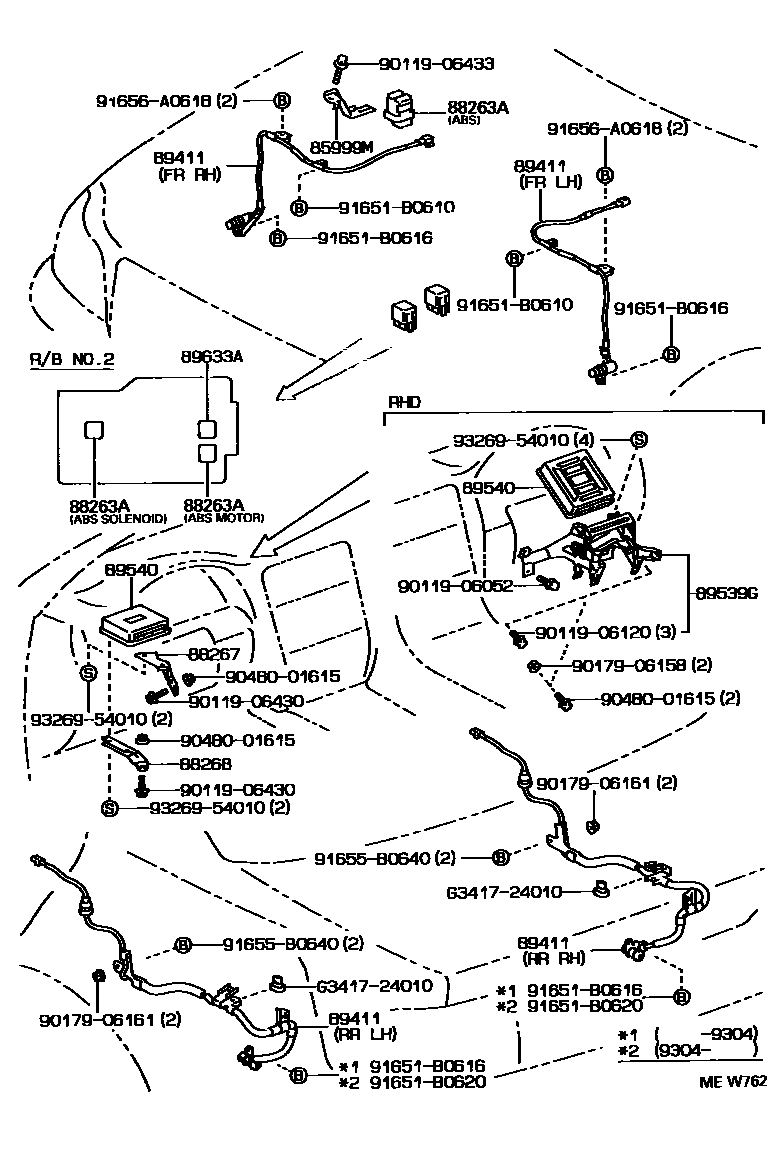

ABS & VSC
85999MBRACKET, RELAY
88263ARELAY, SKID CONTROL
ABS MOTOR
W/O(TRACTION CONTROL),MOTOR
MOTOR
W/O(TRACTION CONTROL),SOLENOID
ABS SOLENOID
SOLENOID
ABS
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89411SENSOR, SPEED
FRONT RH
FRONT RH
FRONT LH
FRONT LH
REAR RH
REAR RH
REAR LH
REAR LH
89539GBRACKET, COMPUTER
89540COMPUTER ASSY, SKID CONTROL
W/O(TRACTION CONTROL)
89633ARELAY, TRACTION CONTROL OR VSC
9011906052
main90119-06052
9011906120
main90119-06120
9011906430
main90119-06430
9011906433
main90119-06433
9017906158
main90179-06158
9017906161
main90179-06161
9048001615
main90480-01615
91651B0610
main91651-B0610
91651B0616
main91651-B0616
91651B0620
main91651-B0620
91655B0640
main91655-B0640
91656A0618
main91656-A0618
9326954010
main93269-54010
G341724010
mainG3417-24010
22 parts on this diagram · 1 diagram in section
