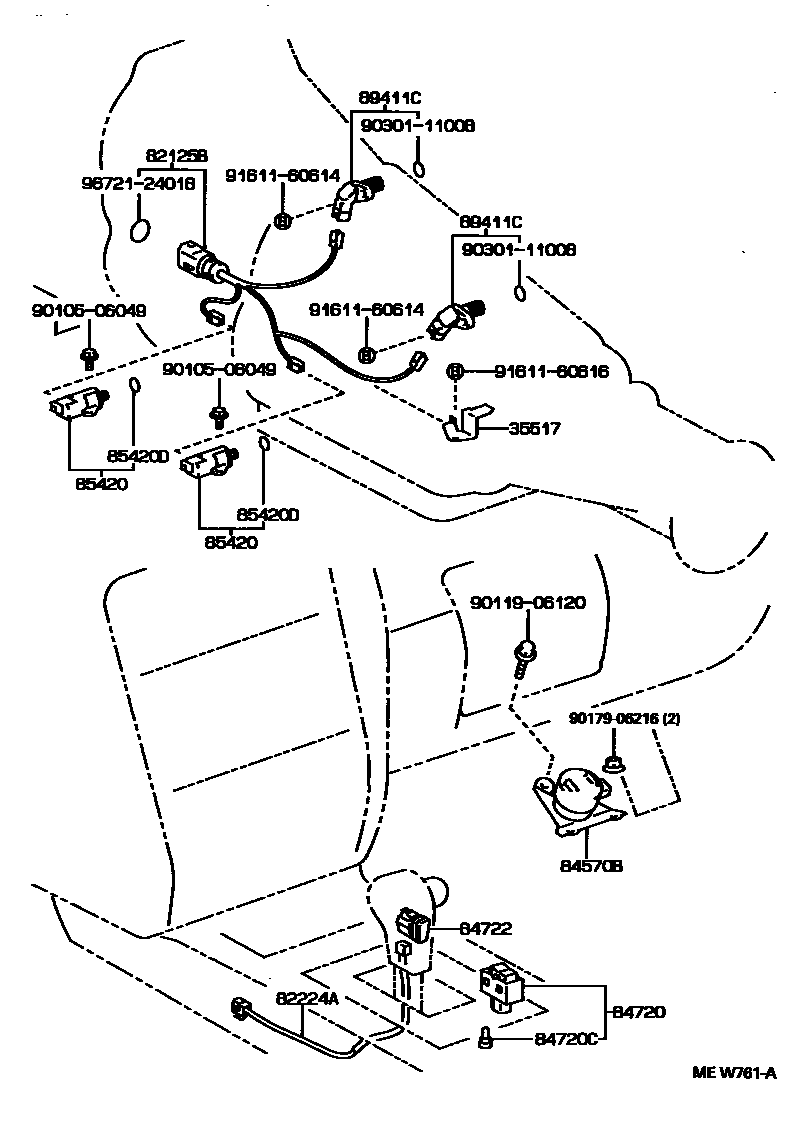

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iJZS147199303-199708

82125BWIRE, TRANSMISSION

main82125-30380iJZS147199508-199708

main82125-50010iJZS147199303-199508

82224AWIRE, OVERDRIVE

main82224-30040iJZS147199303-199708

sub82224-30010

84570BSWITCH ASSY, KICK DOWN

main84570-30050iJZS147..LHD..EUR199308-199708

main84570-30060iJZS147..RHD199308-199708

84720SWITCH ASSY, PATTERN SELECT

main84720-30170iJZS147199303-199708

sub84720-50020

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iJZS147199303-199708

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-30160-B0iJZS147..LHD199303-199708

GRAY,TRIM1#

sub84722-30160

main84722-30160-E0iJZS147..LHD199303-199708

DK.ROSE,TRIM0#

sub84722-30160

main84722-30160-G0iJZS147..LHD199303-199708

SPRUCE GRAY,TRIM6#

sub84722-30160

main84722-30170-B0iJZS147..RHD199308-199708

SHADOW GRAY,TRIM1#

sub84722-30170

main84722-30170-E1iJZS147..RHD199308-199708

DK.ROSE,TRIM0#

sub84722-30170

main84722-30170-G0iJZS147..RHD199308-199708

SPRUCE GRAY,TRIM6#

sub84722-30170

85420SOLENOID ASSY, TRANSMISSION

main85420-30190iJZS147199508-199708

LOCK UP SOLENOID

main85420-50020iJZS147199303-199708

SHIFT SOLENOID

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iJZS147199303-199708

89411CSENSOR, SPEED

main89411-50010iJZS147199303-199708

9010506049

main90105-06049

9011906120

main90119-06120

9017906216

main90179-06216

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

9672124018

main96721-24018

17 parts on this diagram · 1 diagram in section
