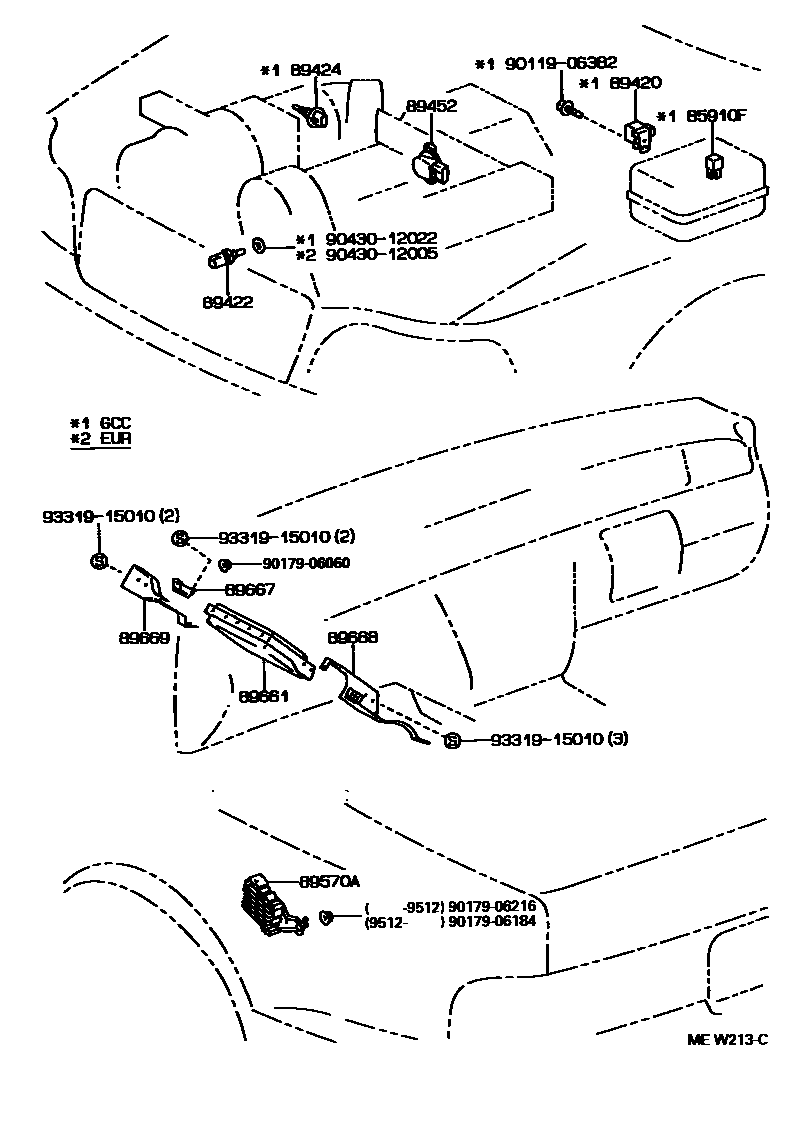

ELECTRONIC FUEL INJECTION SYSTEM

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iJZS147199303-199708

89420SENSOR ASSY, VACUUM

main89420-30110iJZS147..GCC199303-199708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZS147199303-199708

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iJZS147..GCC199303-199708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iJZS147199408-199708

main89452-33010iJZS147199303-199408

sub89452-22090

sub89452-32060

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-30170iJZS147199303-199708

89661COMPUTER, ENGINE CONTROL

main89661-30700iJZS147199303-199308

main89661-30701iJZS147..GCC199308-199508

main89661-30850iJZS147..EUR199308-199508

main89661-3A020iJZS147..EUR199508-199708

main89661-3A030iJZS147..GCC199508-199708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30060iJZS147..RHD199308-199708

main89667-30160iJZS147..LHD199303-199708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30070iJZS147..RHD199308-199708

main89668-30150iJZS147..LHD199303-199708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30040iJZS147..RHD199308-199708

main89669-30120iJZS147..LHD199303-199708

9011906382

main90119-06382

9017906060

main90179-06060

9017906184

main90179-06184

9017906216

main90179-06216

9043012005

main90430-12005

9043012022

main90430-12022

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
