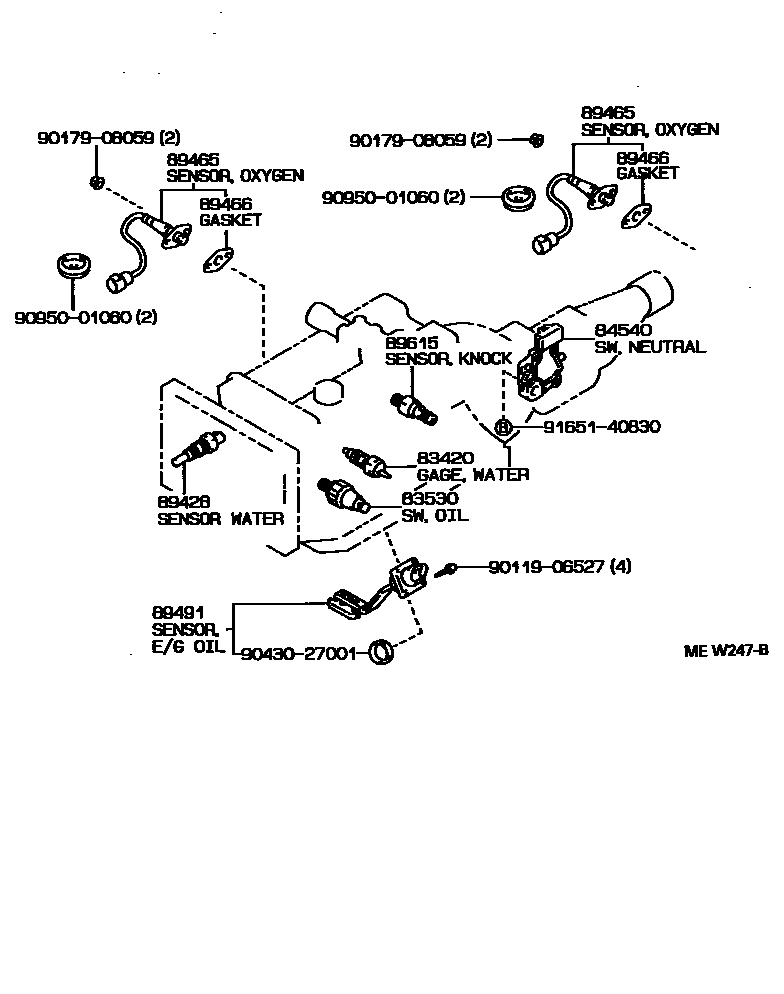

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE WIRE 0003 1INSTRUMENT PANEL SWITCH 0004 1INSTRUMENT PANEL SWITCH 0005 1COWL RH 0006 1COWL LH 0007 1COWL LH 0008 1COWL LH 0009 1COMBINATION SWTICH 0010 1COMBINATION SWTICH 0011 1ROOF, FRONT DOOR,FRONT SEAT &0012 1REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iJZS147199303-199708

NIPPONDENSO

main83420-20030iJZS147199303-199708

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090iJZS147199303-199708

NIPPONDENSO

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS147199303-199708

TOKAIRIKA

main84540-30270iJZS147199308-199708

MATSUSHITA

main84540-30280iJZS147199303-199308

MATSUSHITA

sub84540-30270

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010iJZS147199303-199708

89465SENSOR, OXYGEN

main89465-20430iJZS147..EUR199508-199708

REAR

main89465-30330iJZS147..EUR199508-199708

FRONT

main89465-30350iJZS147..RHD199508-199708

main89465-30360iJZS147..LHD..EUR199508-199708

REAR

main89465-39795iJZS147..EUR199308-199508

FRONT

main89465-39805iJZS147..EUR199308-199508

REAR

89466GASKET, OXYGEN SENSOR

main89466-20020iJZS147..EUR199308-199708

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJZS147199303-199708

89615SENSOR, KNOCK CONTROL

main89615-22030iJZS147199303-199708

MATSUSHITA

main89615-22040iJZS147199303-199708

DENSO

9011906527

main90119-06527

9017908059

main90179-08059

9043027001

main90430-27001

9095001060

main90950-01060

9165140830

main91651-40830

13 parts on this diagram · 12 diagrams in section
