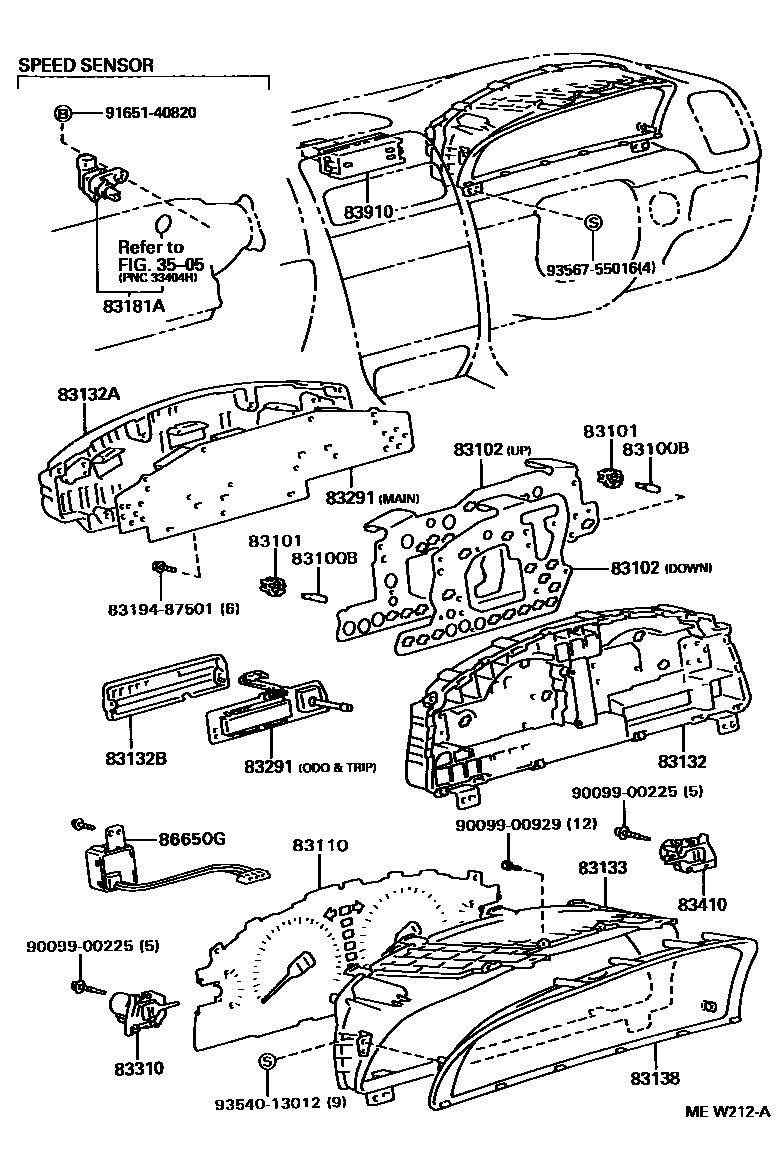

METER
3505
83100BBULB, COMBINATION METER, NO.1
14V 2.0W,W/O SOCKET
14V 3.0W,BLUE CAP
14V 3.0W
14V 3.0W(T6.5)
14V 2.0W
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 1.4W
BULB:1.4W
14V 3.0W,BLUE
BULB:2.0W OR 3.0W
BULB:2.0W OR 3.0W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
UP
DOWN
UP
UP
DOWN
UP
UP
UP
83110SPEEDOMETER ASSY
SINGAPORE SPEC
SINGAPORE SPEC OR HONG KONG SPEC
83132CASE, COMBINATION METER
83132BCASE, COMBINATION METER NO.3
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83181ASENSOR, SPEEDOMETER
83291COMPUTER, COMBINATION METER
ODO & TRIP
MAIN
MAIN
MAIN
ODO & TRIP
MAIN
MAIN
ODO & TRIP
SINGAPORE SPEC,ODO & TRIP
SINGAPORE SPEC OR HONG KONG SPEC,ODO & TRIP
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83910CLOCK ASSY
86650GBUZZER ASSY
8319487501
main83194-87501
9009900225
main90099-00225
9009900929
main90099-00929
9165140820
main91651-40820
9354013012
main93540-13012
9356755016
main93567-55016
22 parts on this diagram · 1 diagram in section
