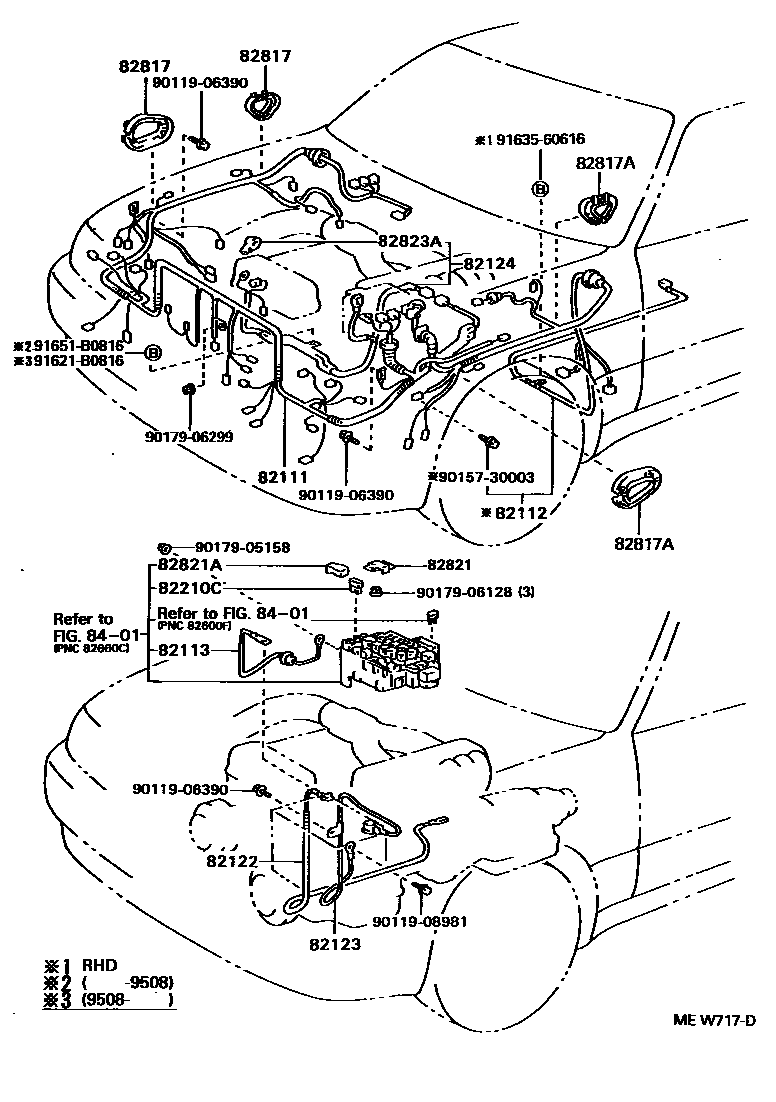

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
SWEDEN SPEC & W(*HC) OR NORWAY SPEC OR DENMARK SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC OR DENMARK SPEC
SWEDEN SPEC & W(*HC) OR NORWAY SPEC OR DENMARK SPEC
W/O(TRACTION CONTROL)
82112WIRE, ENGINE ROOM, NO.2
W(*HC)
W(*HC)
82113WIRE, ENGINE ROOM, NO.3
82124WIRE, ENGINE, NO.4
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
60A,TERM.:MALE,YEL
50A,TERM.:FEMALE,RED
100A,TERM.:MALE,BLUE
82817PROTECTOR, WIRING HARNESS, NO.1
FRONT APRON RH
FRONT APRON LH
FRONT APPON RH
FENDER GUSSET RH
W/O(TRACTION CONTROL),FENDER GUSSET
REAR APRON RH
REAR APPON RH
REAR APRON LH
82817APROTECTOR, WIRING HARNESS, NO.2
FRONT APRON LH
APRON MEMBER LH
REAR APRON LH
82821RETAINER, HEADLAMP HARNESS
W/O(TRACTION CONTROL),TO 82131
54X52
87X52
W/O(TRACTION CONTROL),TVSS
82821ACOVER, CONNECTOR
82823ACAP, TERMINAL, NO.2
8401
9011906390
main90119-06390
9011908981
main90119-08981
9015730003
main90157-30003
9017905158
main90179-05158
9017906128
main90179-06128
9017906299
main90179-06299
91621B0816
main91621-B0816
9163560616
main91635-60616
91651B0816
main91651-B0816
22 parts on this diagram · 13 diagrams in section
