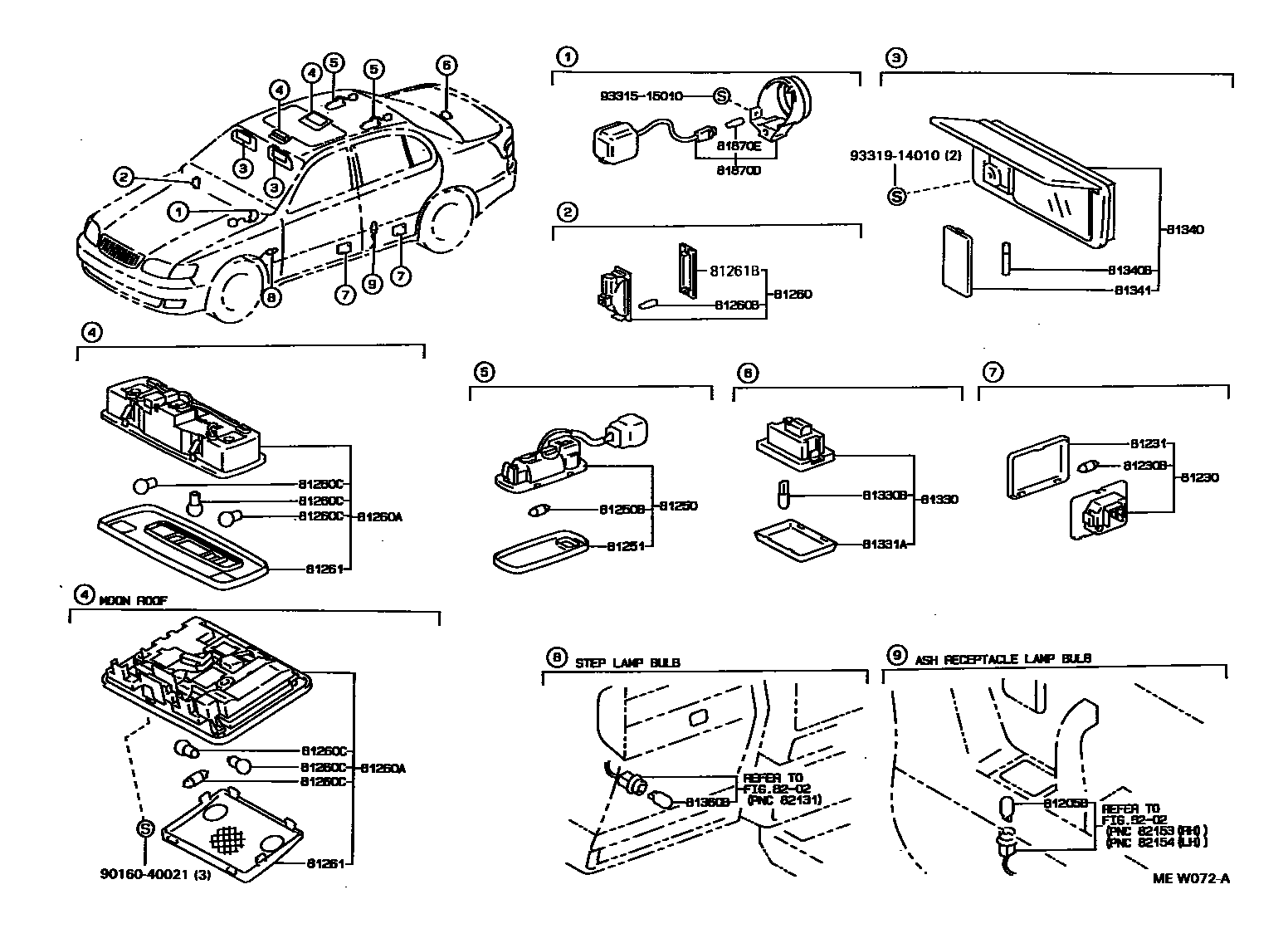

INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
81250BBULB, ROOM LAMP, NO.2
12V 3W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
W(*MR),IVORY,TRIM0#
W(*MR),LI.GRAY,TRIM1#
W(*MR),LI.SPRUCE,TRIM6#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W
12V 8W,W(*MR),ROOM LAMP
81261LENS AND COVER, MAP LAMP
W(*MR)
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
81261BLENS,GLOVE BOX LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
12V 5W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#,RH
GRAY,TRIM1#,RH
LI.SPRUCE,TRIM6#,RH
IVORY,TRIM0#,LH
LT.GRAY,TRIM1#,LH
SPRUCE,TRIM6#,LH
IVORY,TRIM0#,LH
LT.GRAY,TRIM1#,LH
SPRUCE,TRIM6#,LH
IVORY,TRIM0#,RH
LI.GRAY,TRIM1#,RH
LI.SPRUCE,TRIM6#,RH
IVORY,TRIM0#,LH
LI.GRAY,TRIM1#,LH
LI.SPRUCE,TRIM6#,LH
IVORY,TRIM0#,LH
LT.GRAY,TRIM1#,LH
SPRUCE,TRIM6#,LH
IVORY,TRIM0#,LH
GRAY,TRIM1#,LH
LI.SPRUCE,TRIM6#,LH
IVORY,TRIM0#,RH
LT.GRAY,TRIM1#,RH
SPRUCE,TRIM6#,RH
IVORY,TRIM0#,RH
LT.GRAY,TRIM1#,RH
SPRUCE,TRIM6#,RH
IVORY,TRIM0#,LH
LI.GRAY,TRIM1#,LH
LI.SPRUCE,TRIM6#,LH
IVORY,TRIM0#,RH
LI.GRAY,TRIM1#,RH
LI.SPRUCE,TRIM6#,RH
IVORY,TRIM0#,RH
LT.GRAY,TRIM1#,RH
SPRUCE,TRIM6#,RH
81340BBULB (FOR VANITY LAMP)
12V 3W
81341LENS, VANITY LAMP
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET
8202
9016040021
main90160-40021
9331515010
main93315-15010
9331914010
main93319-14010
26 parts on this diagram · 1 diagram in section
