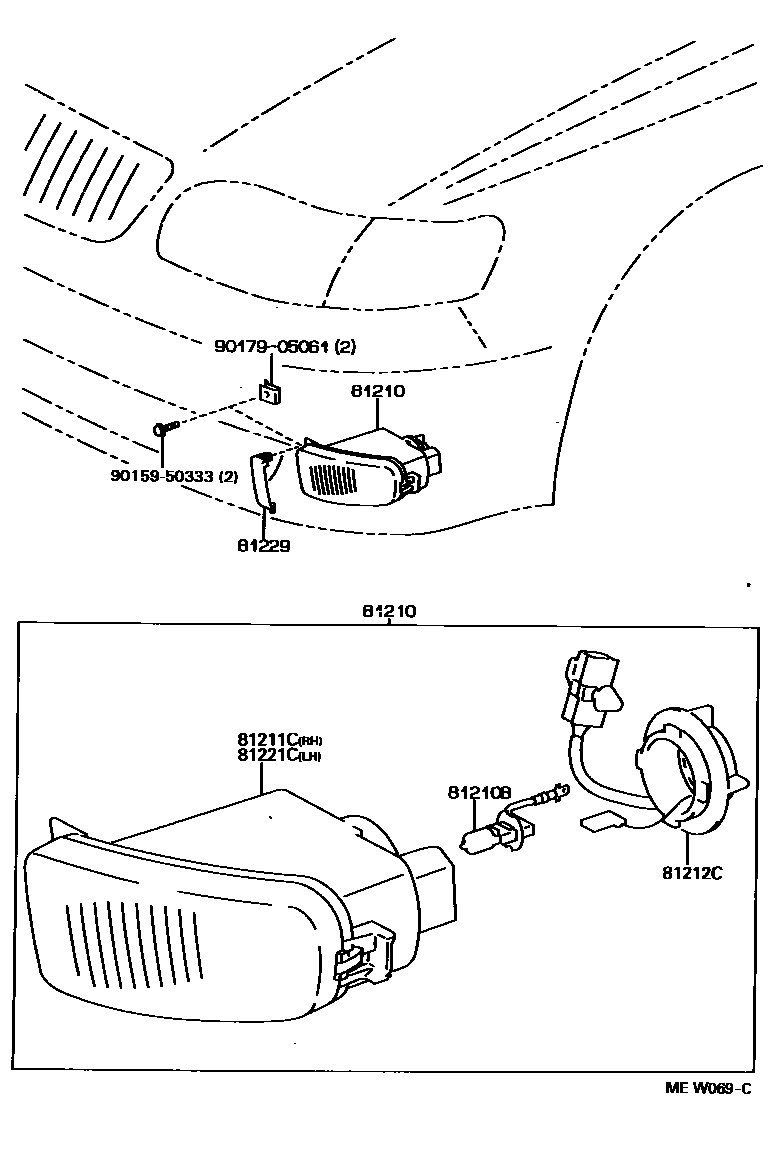

FOG LAMP

81210LAMP ASSY, FOG

main81210-30160iJZS147199303-199308

RH

main81210-30161iJZS147..GCC199308-199708

RH

main81210-30180iJZS147..EUR199308-199708

RH

main81220-30140iJZS147199303-199308

LH

main81220-30141iJZS147..GCC199308-199708

LH

main81220-30150iJZS147..EUR199308-199708

LH

81210BBULB, FOG LAMP

main90981-13048×2iJZS147..GCC199303-199708

12V 55W,HALOGEN

main90981-13069×2iJZS147..EUR199308-199708

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-30160iJZS147..GCC199303-199708

main81211-30180iJZS147..EUR199308-199708

81212CCOVER, FOG LAMP

main81212-30160×2iJZS147199303-199708

81221CLAMP UNIT, FOG LAMP, LH

main81221-30140iJZS147..GCC199303-199708

main81221-30150iJZS147..EUR199308-199708

81229BRACKET, FOG LAMP

main81481-30030iJZS147199303-199708

RH

main81482-30040iJZS147199303-199708

LH

9015950333

main90159-50333

9017905061

main90179-05061

8 parts on this diagram · 1 diagram in section
