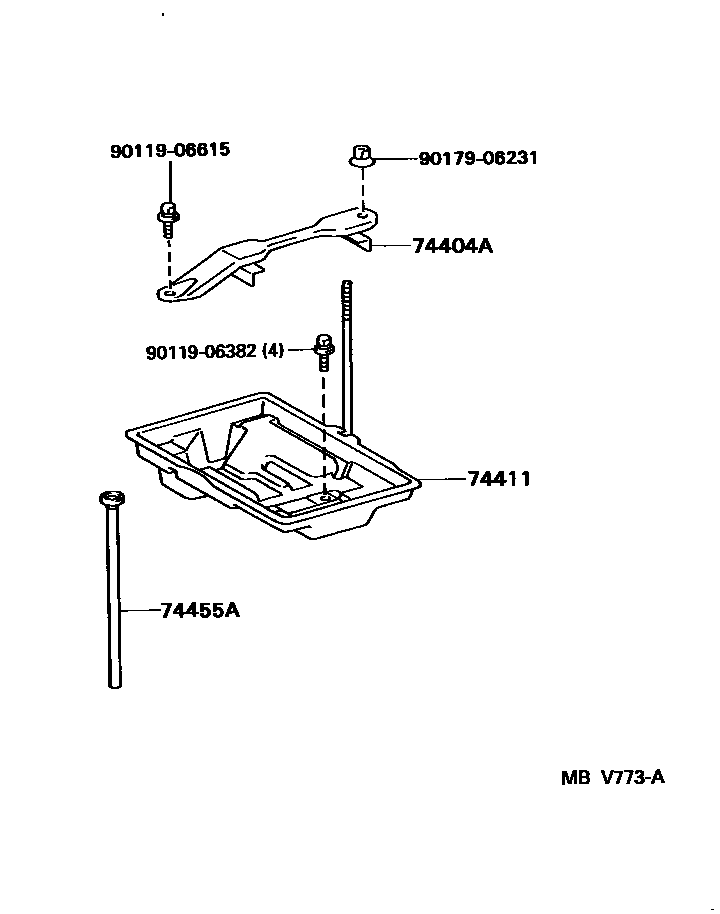

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30240iJZS147199303-199708

74411CARRIER, BATTERY

main74410-30030iJZS147199303-199708

74455AHOSE, BATTERY DRAIN

main74455-30020iJZS147199303-199708

9011906382

main90119-06382

9011906615

main90119-06615

9017906231

main90179-06231

6 parts on this diagram · 1 diagram in section
