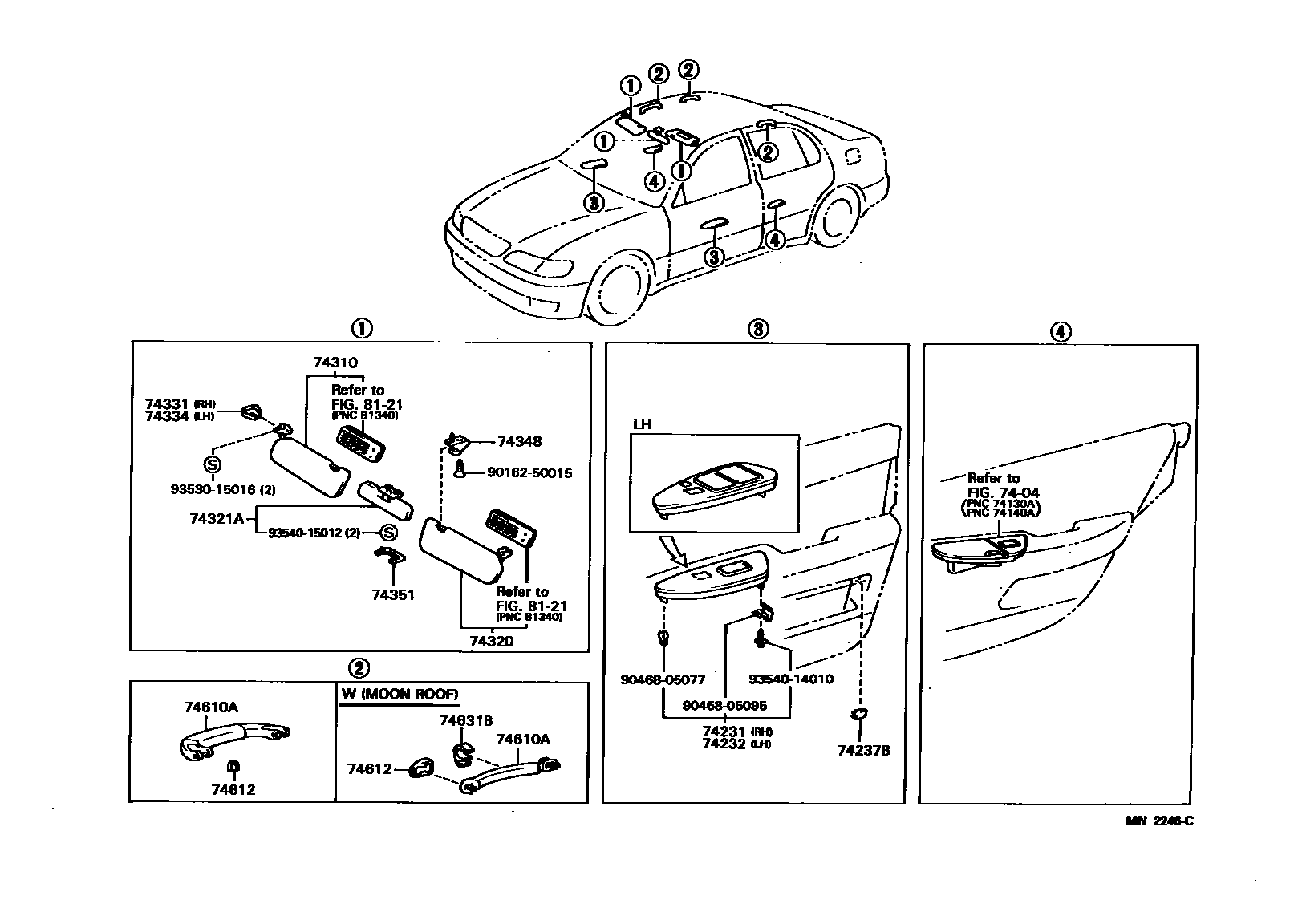

ARMREST & VISOR
7404
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74237BCAP, DOOR ARMREST BASE
74310VISOR ASSY, RH
IVORY,TRIM0#
MD. GRAY,TRIM1#
SPRUCE,TRIM6#
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
MD. GRAY,TRIM1#
SPRUCE,TRIM6#
74320VISOR ASSY, LH
IVORY,TRIM0#
MD. GRAY,TRIM1#
SPRUCE,TRIM6#
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
MD. GRAY,TRIM1#
SPRUCE,TRIM6#
74321AVISOR, FRONT
IVORY,TRIM0#
SHADOW GRAY,TRIM1#
LI.SPRUCE,TRIM6#
74331CASE, VISOR ARM, RH
74334CASE, VISOR ARM, LH
74348HOLDER, VISOR
74351COVER, VISOR SET HOLE
74610AGRIP SUB-ASSY, ASSIST
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),LI.GRAY,TRIM1#
W(MOON ROOF),LI.SPRUCE,TRIM6#
74612COVER, ASSIST GRIP
74631BHOOK, COAT
8121
9016250015
main90162-50015
9046805077
main90468-05077
9046805095
main90468-05095
9353015016
main93530-15016
9354014010
main93540-14010
9354015012
main93540-15012
21 parts on this diagram · 1 diagram in section
