SEAT BELT & CHILD RESTRAINT SEAT

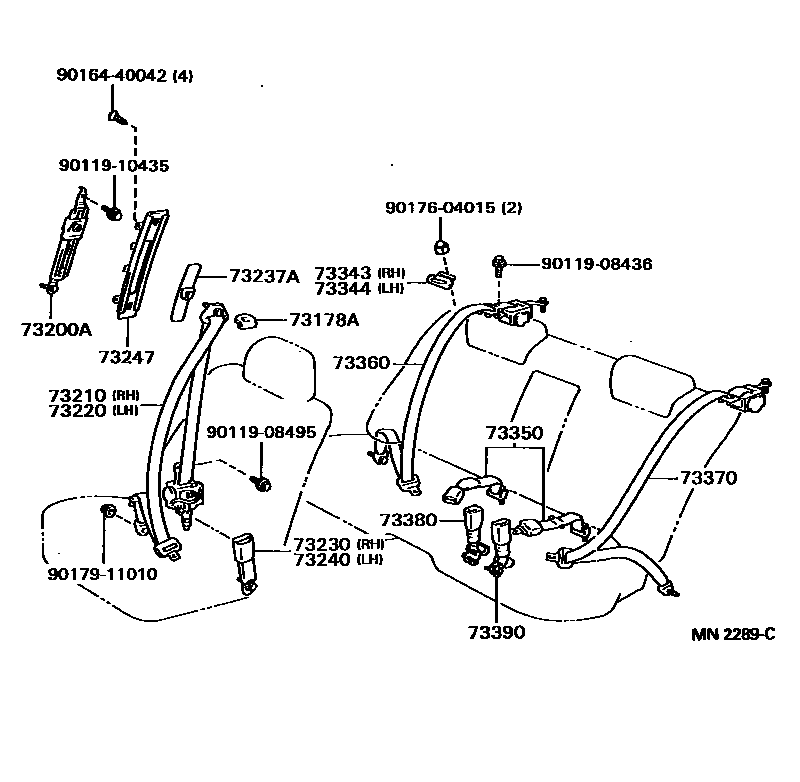

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-30020-A0i199303-199708
IVORY,TRIM0#
sub73178-30020
main73178-30020-B0i199303-199708
LI.GRAY,TRIM1#
sub73178-30020
main73178-30020-G0i199303-199708
LI.SPRUCE,TRIM6#
sub73178-30020
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-30050i199303-199411
sub73200-30053
sub90119-08901
main73200-30052i199411-199607
main73200-30053i199607-199708
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30630-A0i199303-199308
IVORY,TRIM0#
main73210-30630-B0i199303-199308
GRAY,TRIM1#
main73210-30630-G0i199303-199308
LI.SPRUCE,TRIM6#
main73210-30631-A0i199308-199312
IVORY,TRIM0#
main73210-30631-B0i199308-199312
GRAY,TRIM1#
main73210-30631-G0i199308-199312
LI.SPRUCE,TRIM6#
main73210-30632-A0i199312-199408
IVORY,TRIM0#
sub73210-30633
main73210-30632-B0i199312-199408
MD.GRAY,TRIM1#
sub73210-30633
main73210-30632-B3i199408-199502
BLUISH GRAY,TRIM1#
sub73210-30633
main73210-30632-E0i199408-199502
MD.OAK,TRIM0#
sub73210-30633
main73210-30632-G0i199312-199408
SPRUCE,TRIM6#
sub73210-30633
main73210-30632-G2i199408-199502
DK.SPRUCE GRAY,TRIM6#
sub73210-30633
main73210-30633-B4i199502-199508
BLUISH GRAY,TRIM1#
main73210-30633-E1i199502-199508
MD.OAK,TRIM0#
main73210-30633-G3i199502-199508
DK.SPRUCEGRAY,TRIM6#
main73210-30720-B0i199508-199708
BLUISH GRAY,TRIM1#
main73210-30720-E0i199508-199708
MD.OAK,TRIM0#
main73210-30720-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30580-A0i199303-199308
IVORY,TRIM0#
main73220-30580-B0i199303-199308
GRAY,TRIM1#
main73220-30580-G0i199303-199308
LI.SPRUCE,TRIM6#
main73220-30581-A0i199308-199312
IVORY,TRIM0#
main73220-30581-B0i199308-199312
GRAY,TRIM1#
main73220-30581-G0i199308-199312
LI.SPRUCE,TRIM6#
main73220-30582-A0i199312-199408
IVORY,TRIM0#
sub73220-30583
main73220-30582-B0i199312-199408
MD.GRAY,TRIM1#
sub73220-30583
main73220-30582-B3i199408-199502
BLUISH GRAY,TRIM1#
sub73220-30583
main73220-30582-E0i199408-199502
MD.OAK,TRIM0#
sub73220-30583
main73220-30582-G0i199312-199408
SPRUCE,TRIM6#
sub73220-30583
main73220-30582-G2i199408-199502
DK.SPRUCE GRAY,TRIM6#
sub73220-30583
main73220-30583-B4i199502-199508
BLUISH GRAY,TRIM1#
main73220-30583-E1i199502-199508
MD.OAK,TRIM0#
main73220-30583-G3i199502-199508
DK.SPRUCEGRAY,TRIM6#
main73220-30670-B0i199508-199708
BLUISH GRAY,TRIM1#
main73220-30670-E0i199508-199708
MD.OAK,TRIM0#
main73220-30670-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30670-A0i199303-199312
IV0RY,TRIM0#
main73230-30670-B0i199303-199312
GRAY,TRIM1#
main73230-30670-G0i199303-199312
LI.SPRUCE,TRIM6#
main73230-30671-A0i199312-199408
IVORY,TRIM0#
main73230-30671-B0i199312-199408
MD.GRAY,TRIM1#
main73230-30671-B2i199408-199708
SHADOW GRAY,TRIM1#
main73230-30671-E0i199408-199708
MD.OAK,TRIM0#
main73230-30671-G0i199312-199408
SPRUCE,TRIM6#
main73230-30671-G1i199408-199708
DK.SPRUCE GRAY,TRIM6#
73237ACOVER, SHOULDER BELT ANCHOR
main73135-30020-A0i199303-199708
IVORY,TRIM0#
sub73135-30020
main73135-30020-B0i199303-199708
LI.GRAY,TRIM1#
sub73135-30020
main73135-30020-G0i199303-199708
LI.SPRUCE,TRIM6#
sub73135-30020
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-30192-A0i199303-199312
IVORY,TRIM0#
main73240-30192-B0i199303-199312
GRAY,TRIM1#
main73240-30192-G0i199303-199312
LI.SPRUCE,TRIM6#
main73240-30193-A0i199312-199408
IVORY,TRIM0#
main73240-30193-B0i199312-199408
MD.GRAY,TRIM1#
main73240-30193-B2i199408-199508
BLUISH GRAY,TRIM1#
main73240-30193-E2i199408-199508
MD.OAK,TRIM0#
main73240-30193-G0i199312-199408
SPRUCE,TRIM6#
main73240-30193-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73240-30194-B2i199508-199708
BLUISH GRAY,TRIM1#
main73240-30194-E2i199508-199708
MD.OAK,TRIM0#
main73240-30194-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
main73240-30370-A0i199308-199312
IVORY,TRIM0#
main73240-30370-B0i199308-199312
GRAY,TRIM1#
main73240-30370-G0i199308-199312
LI.SPRUCE,TRIM6#
main73240-30371-A0i199312-199408
IVORY,TRIM0#
main73240-30371-B0i199312-199408
MD.GRAY,TRIM1#
main73240-30371-B2i199408-199708
SHADOW GRAY,TRIM1#
main73240-30371-E0i199408-199708
MD.OAK,TRIM0#
main73240-30371-G0i199312-199408
SPRUCE,TRIM6#
main73240-30371-G1i199408-199708
DK.SPRUCE GRAY,TRIM6#
73247RETAINER, SHOULDER BELT ANCHOR
main73247-30010i199303-199708
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-30020-A0i199303-199308
IVORY,TRIM0#
main73343-30020-B0i199303-199308
GRAY,TRIM1#
main73343-30020-G0i199303-199308
LI.SPRUCE,TRIM6#
main73343-30050-A0i199308-199408
IVORY,TRIM0#
main73343-30050-B0i199308-199408
GRAY,TRIM1#
main73343-30050-B1i199408-199508
SHADOW GRAY,TRIM1#
main73343-30050-E2i199408-199508
MD.OAK,TRIM0#
main73343-30050-G0i199308-199408
LI.SPRUCE,TRIM6#
main73343-30050-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73343-50020-B2i199508-199708
BLUISH GRAY,TRIM1#
sub73343-50020
main73343-50020-E1i199508-199708
MD.OAK,TRIM0#
sub73343-50020
main73343-50020-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73343-50020
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73344-30010-A0i199303-199308
IVORY,TRIM0#
main73344-30010-B0i199303-199308
GRAY,TRIM1#
main73344-30010-G0i199303-199308
LI.SPRUCE,TRIM6#
main73344-30040-A0i199308-199408
IVORY,TRIM0#
main73344-30040-B0i199308-199408
GRAY,TRIM1#
main73344-30040-B1i199408-199508
SHADOW GRAY,TRIM1#
main73344-30040-E2i199408-199508
MD.OAK,TRIM0#
main73344-30040-G0i199308-199408
LI.SPRUCE,TRIM6#
main73344-30040-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73344-50010-B2i199508-199708
BLUISH GRAY,TRIM1#
sub73344-50010
main73344-50010-E1i199508-199708
MD.OAK,TRIM0#
sub73344-50010
main73344-50010-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
sub73344-50010
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-30160-A0i199303-199408
IVORY,TRIM0#
main73350-30160-B0i199303-199408
GRAY,TRIM1#
main73350-30160-B2i199408-199508
SHADOW GRAY,TRIM1#
main73350-30160-E0i199408-199508
MD.OAK,TRIM0#
main73350-30160-G0i199303-199408
LI.SPRUCE,TRIM6#
main73350-30160-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73350-30161-B2i199508-199708
BLUISH GRAY,TRIM1#
main73350-30161-E0i199508-199708
MD.OAK,TRIM0#
main73350-30161-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-30250-A0i199303-199408
IVORY,TRIM0#
sub73360-30250
main73360-30250-B0i199303-199408
GRAY,TRIM1#
sub73360-30250
main73360-30250-B2i199408-199508
SHADOW GRAY,TRIM1#
sub73360-30250
main73360-30250-E0i199408-199508
MD.OAK,TRIM0#
sub73360-30250
main73360-30250-G0i199303-199408
LI.SPRUCE,TRIM6#
sub73360-30250
main73360-30250-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73360-30250
main73360-30251-B2i199508-199708
BLUISH GRAY,TRIM1#
main73360-30251-E0i199508-199708
MD.OAK,TRIM0#
main73360-30251-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
main73360-30290-B0i199508-199708
BLUISH GRAY,TRIM1#
main73360-30290-E0i199508-199708
MD.OAK,TRIM0#
main73360-30290-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-30190-A0i199303-199408
IVORY,TRIM0#
sub73370-30190
main73370-30190-B0i199303-199408
GRAY,TRIM1#
sub73370-30190
main73370-30190-B2i199408-199508
SHADOW GRAY,TRIM1#
sub73370-30190
main73370-30190-E0i199408-199508
MD.OAK,TRIM0#
sub73370-30190
main73370-30190-G0i199303-199408
LI.SPRUCE,TRIM6#
sub73370-30190
main73370-30190-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73370-30190
main73370-30191-B2i199508-199708
BLUISH GRAY,TRIM1#
main73370-30191-E0i199508-199708
MD.OAK,TRIM0#
main73370-30191-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
main73370-30200-B0i199508-199708
BLUISH GRAY,TRIM1#
main73370-30200-E0i199508-199708
MD.OAK,TRIM0#
main73370-30200-G0i199508-199708
DK.SPRUCE GRAY,TRIM6#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-30260-A0i199303-199312
IVORY,TRIM0#
main73380-30260-B0i199303-199312
GRAY,TRIM1#
main73380-30260-G0i199303-199312
LI.SPRUCE,TRIM6#
main73380-30261-A0i199312-199408
IVORY,TRIM0#
sub73380-30261
main73380-30261-B0i199312-199408
MD.GRAY,TRIM1#
sub73380-30261
main73380-30261-B2i199408-199508
SHADOW GRAY,TRIM1#
sub73380-30261
main73380-30261-E0i199408-199508
MD.OAK,TRIM0#
sub73380-30261
main73380-30261-G0i199312-199408
SPRUCE,TRIM6#
sub73380-30261
main73380-30261-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
sub73380-30261
main73380-30262-B2i199508-199708
BLUISH GRAY,TRIM1#
main73380-30262-E0i199508-199708
MD.OAK,TRIM0#
main73380-30262-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-30110-A0i199303-199312
IVORY,TRIM0#
main73480-30110-B0i199303-199312
GRAY,TRIM1#
main73480-30110-G0i199303-199312
LI.SPRUCE,TRIM6#
main73480-30111-A0i199312-199408
IVORY,TRIM0#
main73480-30111-B0i199312-199408
MD.GRAY,TRIM1#
main73480-30111-B2i199408-199508
SHADOW GRAY,TRIM1#
main73480-30111-E0i199408-199508
MD.OAK,TRIM0#
main73480-30111-G0i199312-199408
SPRUCE,TRIM6#
main73480-30111-G1i199408-199508
DK.SPRUCE GRAY,TRIM6#
main73480-30112-B2i199508-199708
BLUISH GRAY,TRIM1#
main73480-30112-E0i199508-199708
MD.OAK,TRIM0#
main73480-30112-G1i199508-199708
DK.SPRUCE GRAY,TRIM6#
9011908436
main90119-08436
9011908495
main90119-08495
9011910435
main90119-10435
9016440042
main90164-40042
9017604015
main90176-04015
9017911010
main90179-11010

21 parts on this diagram · 1 diagram in section
